Automatic Profile Coating Machine with 6 Guns
This automatic profile coating machine is equipped with 6 spray guns for applying coatings to various materials. It ensures uniform and efficient coverage on complex shapes and contours.
Technical Specifications
Overview
High-Efficiency Automatic Profile Spraying

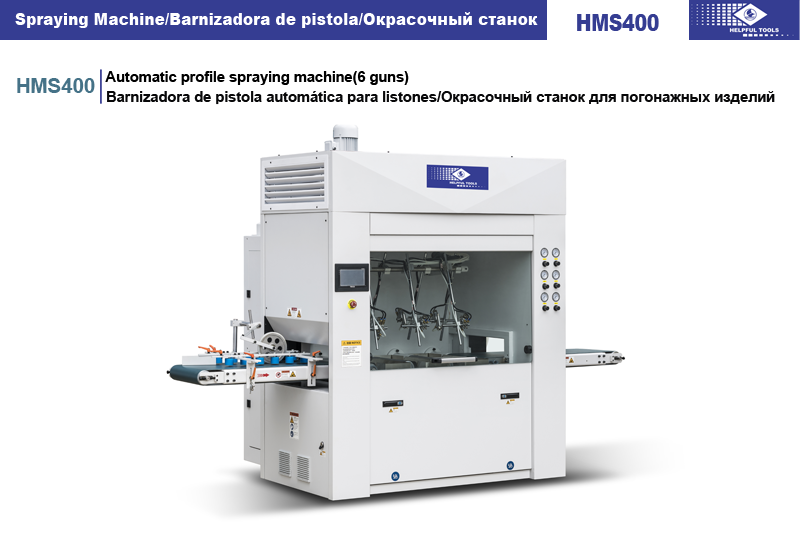

The HMS400 is an advanced automatic profile spraying machine designed for high-volume production and consistent finish quality. Equipped with six precision spray guns, it ensures uniform coating application on complex shapes, moldings, and elongated workpieces. This versatile system is ideal for applying varnishes and paints to wood, plastic, and metal profiles, significantly reducing labor costs while maximizing material efficiency.
Technical Capabilities
Key Performance Metrics

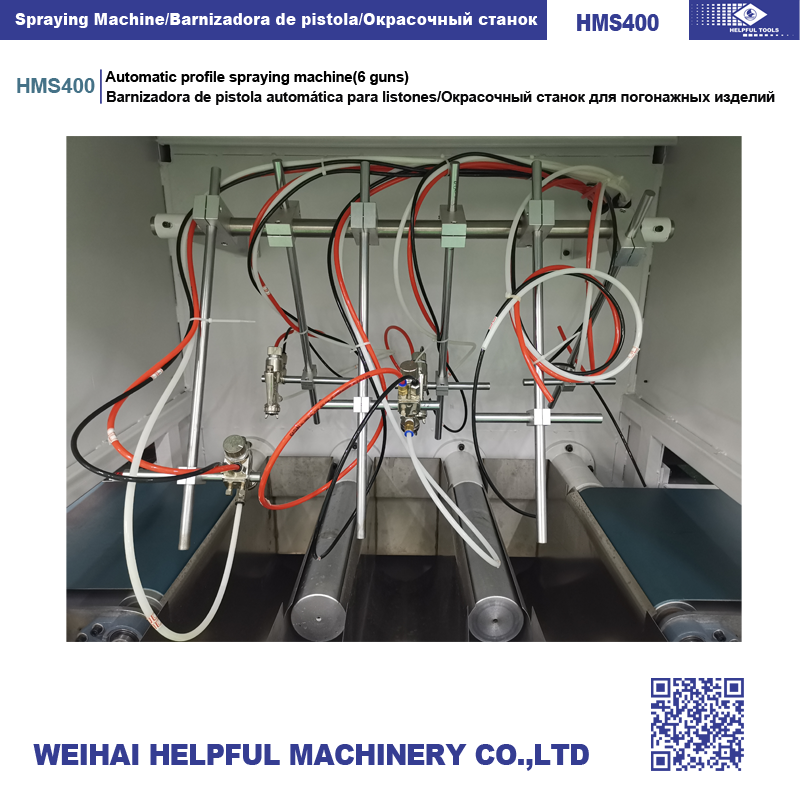

6 pcs
Spray Guns
50 m/min
Max Feeding Speed
2,025 W
Total Power
Workpiece Specifications
Processing Capacity
| Parameter | Range/Value |
|---|---|
| Processing Width | 10 - 400 mm |
| Processing Thickness | 10 - 100 mm |
| Minimum Workpiece Length | 700 mm |
Operation & Control

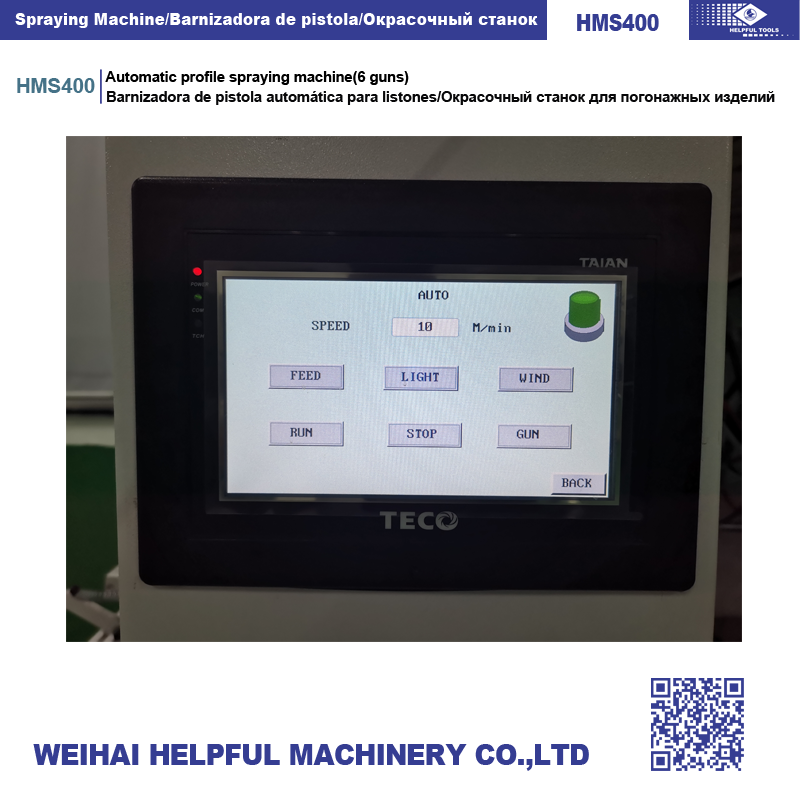

Control System Features
- AUTO mode with adjustable speed settings

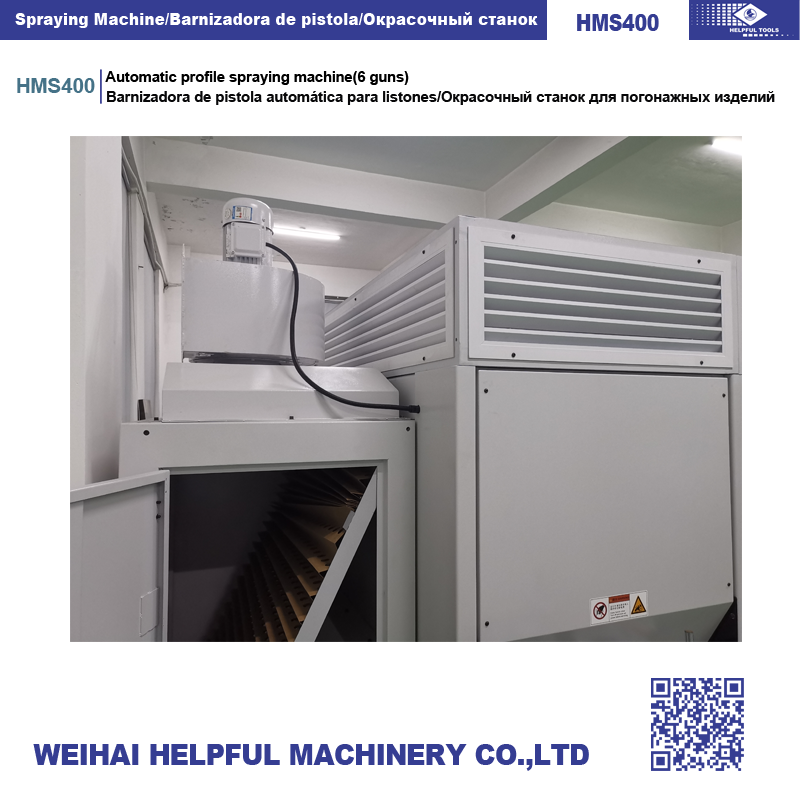

- Integrated light and wind control
- Precision spray pressure adjustment
- User-friendly interface for status monitoring
- Automated conveyor system for continuous processing
Technical Specifications
- Working Pressure
- 0.8 MPa
- Machine Dimensions
- 3500 x 1700 x 2000 mm
Applications
Supported Coatings
VarnishPaintIndustrial Finishes

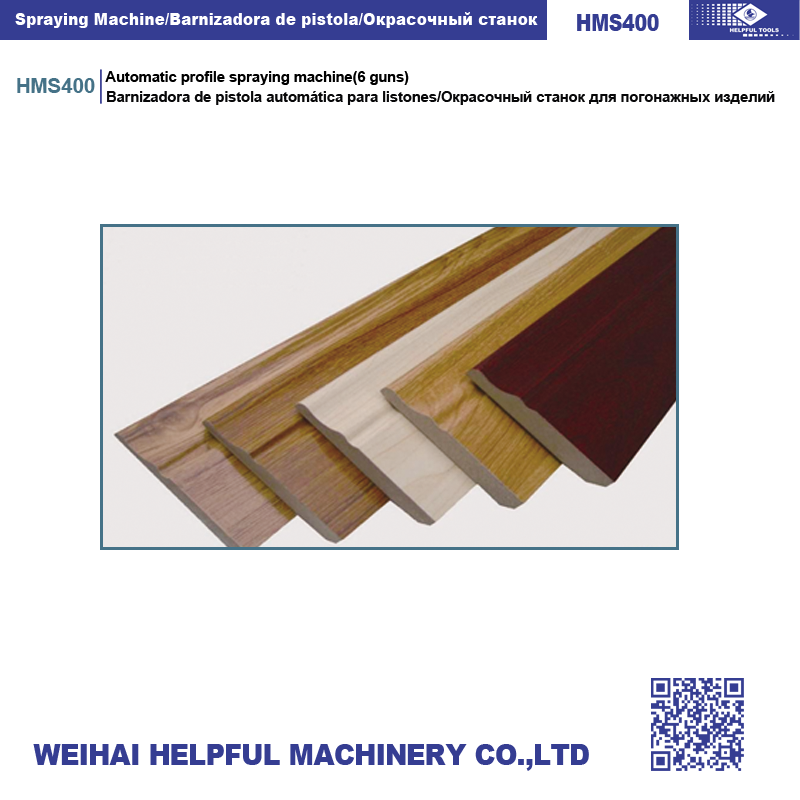

- Compatible Materials
- WoodPlasticMetalMoldingLinear Profiles
