Technical Specifications
Overview
High-Efficiency Water Treatment Control

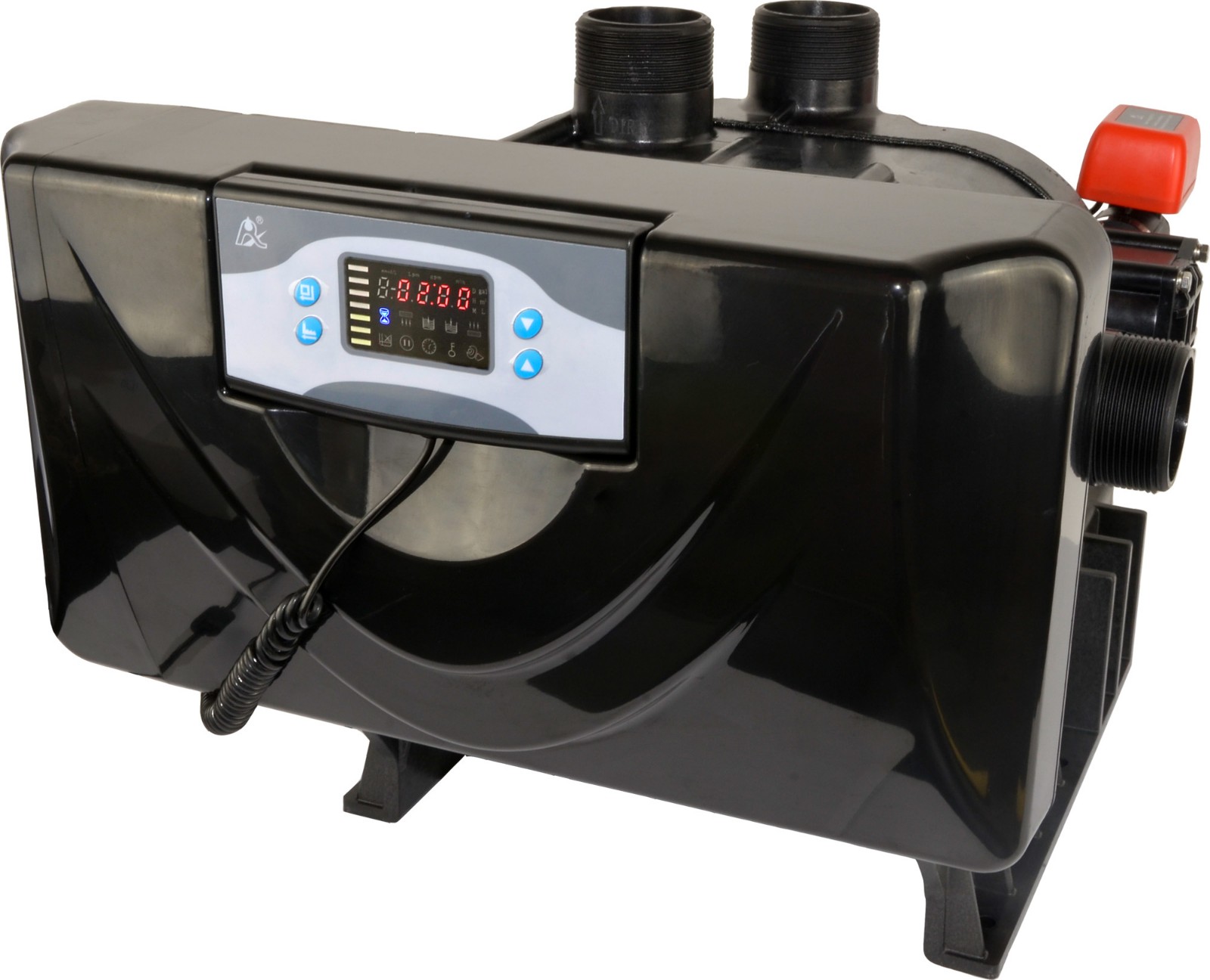

The Automatic Multiport Water Softener Valve is engineered for precise control in residential, commercial, and industrial water softening systems. Featuring a dual-valve core design, it manages inflow and outflow with high reliability. The system fully automates essential cycles including service, backwash, brine draw, slow rinse, brine refill, and fast rinse, significantly reducing the need for manual intervention.
Technical Parameters
Flow Rate
20 m³/h
Flow Rate
- Operating Pressure
- 0.2-0.6 MPa
- Water Temperature
- 5-50 °C
- Water Turbidity
- < 5 FTU
Connectivity & Installation
Connection Specifications
| Connection Type | Size |
|---|---|
| Inlet/Outlet | 2" M |
| Drain | 1.5" M |
| Brine Line | 3/4" M |
| Mounting Base | 2" M |
| Riser Pipe | 2" M |
- Mounting Style
- Side mountTop distributor basketBottom distributor basket
Electrical & Environmental
Ambient Conditions
- Ambient Temperature: 5°C - 50°C
- Relative Humidity: ≤95% (at 25°C)
- Power Input
- AC100-240V / 50-60Hz
- Power Output
- DC24V, 1.5A
System Compatibility
Compatible Models
F95A1F95A36352063620
- Compatible Filter Tank
- 28" - 40"
