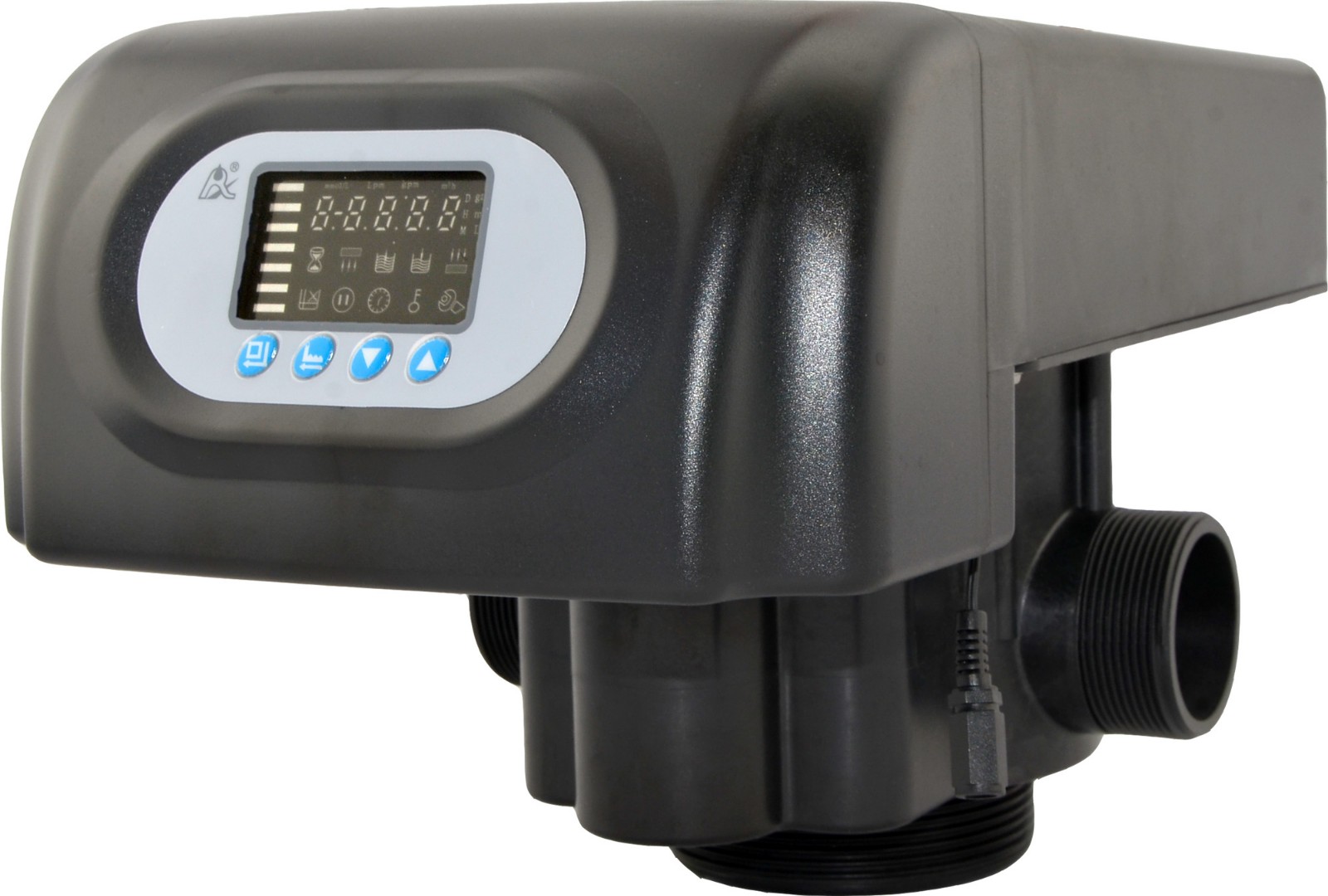

Automatic Multiport Water Softener Valve
This automatic multiport valve is designed for water softener systems. It features electronic controls and a digital display for efficient and reliable operation.
Technical Specifications
Product Overview
Automatic Multiport Water Softener Valve
This automatic multiport valve is designed for high-efficiency water softener systems, providing comprehensive control over service, backwash, brine, and rinse cycles. Engineered for robust performance, it supports flow rates up to 10m³/h and is compatible with filter tanks ranging from 16 to 30 inches. Its digital interface and electronic controls automate the regeneration process, ensuring consistent water quality with minimal manual intervention.
Technical Specifications
Flow Rate
10 m³/h
Flow Rate
Connection Sizes
| Connection Type | Size |
|---|---|
| Inlet/Outlet | 2" M |
| Drain | 1" M |
| Brine Line | 1/2" M |
| Riser Pipe | 1.5" D-GB |
- Mounting Base
- 4" - 8UN
Operational Parameters
- Water Pressure
- 0.6 MPa
- Water Temperature
- 5 - 50 °C
- Max Water Turbidity
- < 5 FTU
Environmental Conditions
- Ambient Temperature
- 5°C ~ 50°C
- Relative Humidity
- ≤ 95% (25°C)
Electrical Specifications
- Power Adapter Input
- AC 100~240V / 50~60HZ
- Output Power
- DC 24V / 1.5A
Compatibility
- Model Variants
- N74A1N74A3635106361063510B63610B
- Compatible Tank Size
- 16" - 30"
