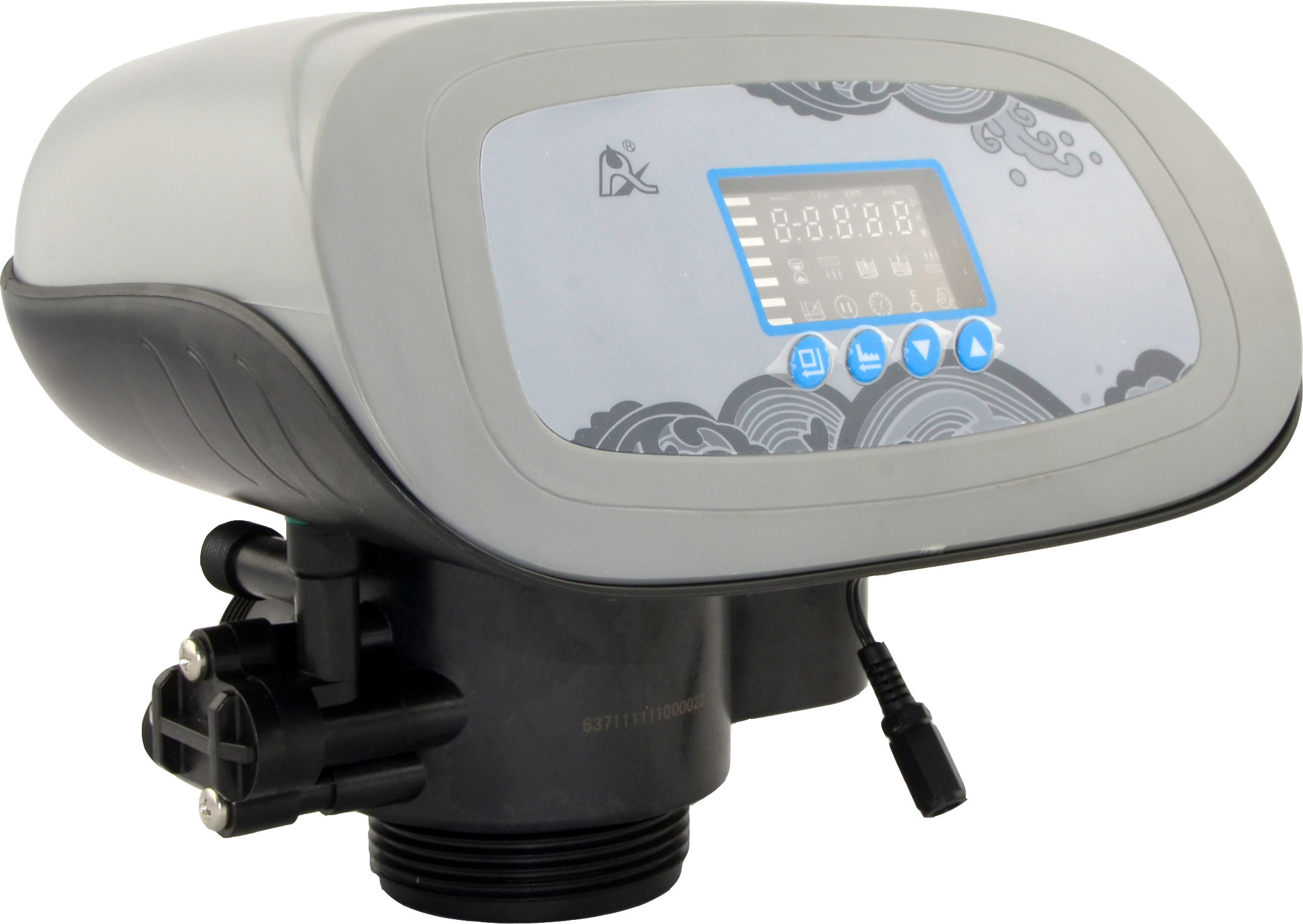

Automatic Multiport Water Softener Valve
This automatic multiport valve is designed for use in water softener systems. It automates the regeneration process, ensuring efficient and reliable water softening.
Technical Specifications
Product Overview
Automatic Multiport Water Softener Valve
This automatic multiport valve is designed for efficient water softening systems, offering robust corrosion resistance and reliable performance. It features automated regeneration cycles including backwash, service, brine and slow rinse, brine refill, and fast rinse. The system is available in both timer clock (F63G1) and meter (F63G3) configurations to suit specific operational needs.
Technical Specifications
Flow Rate
4 m3/h
Flow Rate
Operating Parameters
| Parameter | Value |
|---|---|
| Water Pressure | 0.15-0.6 MPa |
| Water Temperature | 5-50 ℃ |
| Ambient Temperature | 5-50 ℃ |
| Water Turbidity | < 20 FTU |
| Relative Humidity | ≤ 95% (25℃) |
Connection Dimensions
- Inlet/Outlet: 1" Male
- Drain: 1/2" Male
- Brine line connector: 3/8" Male
- Mounting base: 2.5"-8NPSM
- Riser pipe: 1.05" OD
- Power Supply
- Input AC100~240V/50~60HZ; Output DC12V/1.5A
Configuration
- Regeneration Control
- Timer Clock Type (F63G1)Meter Type (F63G3)
- Compatible Filter Tank Size
- 6" - 18"
