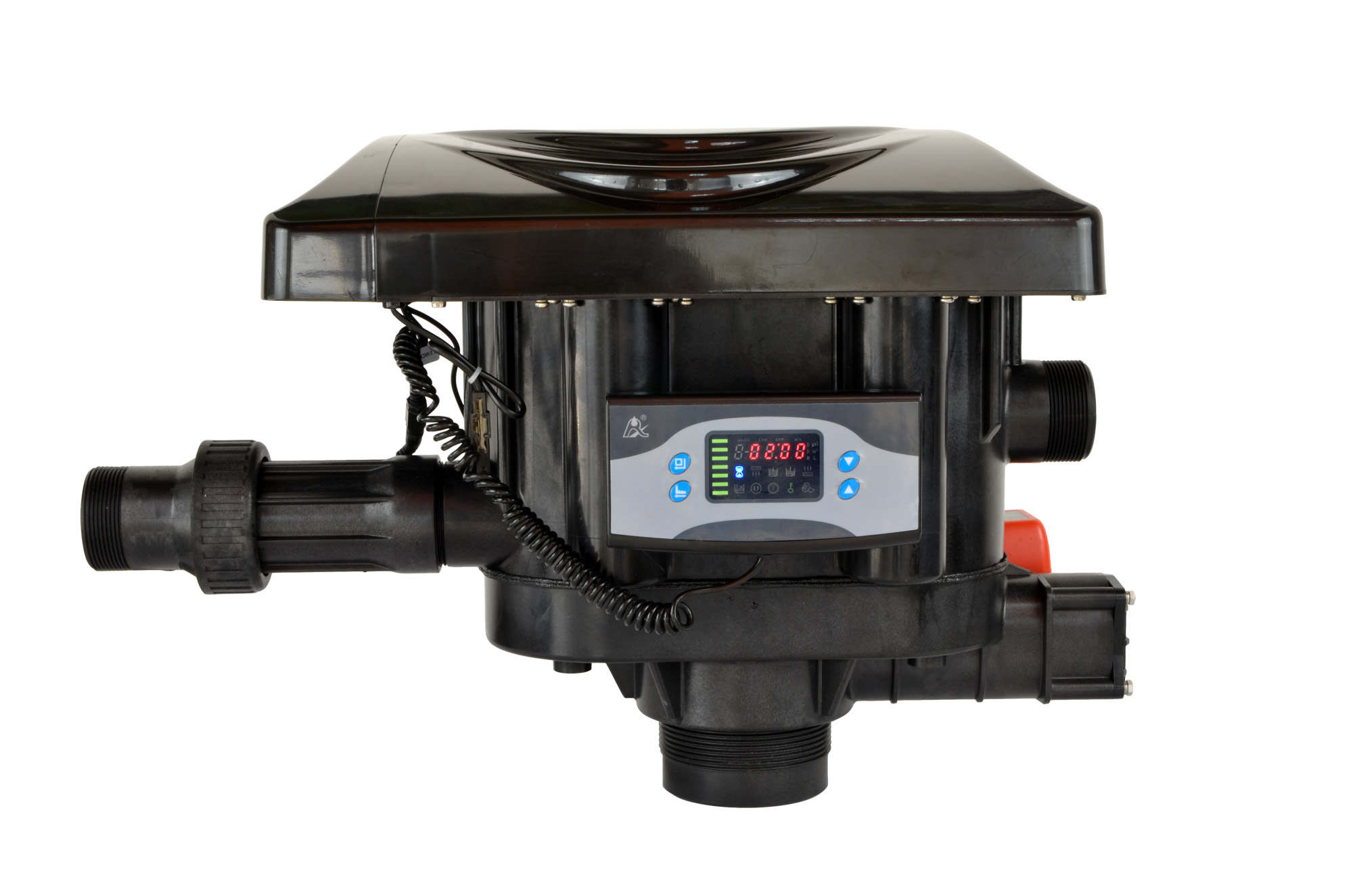

Automatic Multiport Water Softener Valve
This automatic multiport softener valve is designed for residential and light commercial water softening applications. It provides efficient and reliable water softening by automatically controlling the backwash, brine draw, and rinse cycles.
Technical Specifications
Overview
High-Capacity Multiport Valve
This automatic multiport softener valve is engineered for efficient water treatment, offering reliable control over backwash, brine draw, and rinse cycles. It features a robust dual-valve core design that independently manages water inflow and outflow for optimal system performance. Available in both timer-clock and meter-type configurations, this unit adapts seamlessly to various residential and light commercial water softening setups.
Technical Specifications
Key Performance Metrics
20 m3/h
Flow Rate
0.6 MPa
Max Water Pressure
50 °C
Max Water Temp
Available Models
| Model | Type |
|---|---|
| F111A1 | Timer Clock |
| F111A3 | Meter Type |
Connection Sizes
- Inlet/Outlet: 2" M
- Drain: 1.5" M
- Brine Line: 3/4" M
- Mounting Base: 4" - 8UN
- Riser Pipe: 2" D-GB (63mm)
- Compatible Tank Sizes
- 28" - 40"
Operating Environment
Operating Conditions
- Ambient Temperature: 5°C - 50°C
- Relative Humidity: ≤95% (at 25°C)
- Water Turbidity: <5 FTU
- Power Requirements
- Input: AC100~240V/50~60HZ; Output: DC24V/1.5A
