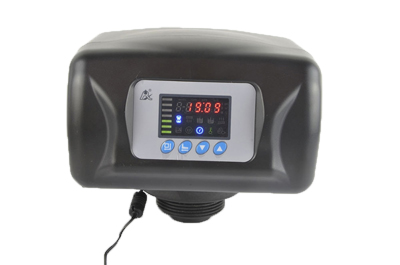

Automatic Multiport Water Softener Valve
This automatic multiport softener valve is designed for efficient water softening systems. It features a digital display and user-friendly controls for easy programming and monitoring of regeneration cycles.
Technical Specifications
Product Overview
Automatic Multiport Water Softener Valve
This automatic multiport valve is engineered for efficient water softening systems, offering robust corrosion resistance and reliable performance. It supports a comprehensive range of cycles including service, backwash, brine, slow rinse, refill, and fast rinse. Designed for versatility, this unit is ideal for residential and light commercial water treatment applications requiring automated regeneration and consistent water quality.
Technical Specifications
- Max Flow Rate
- 5 m3/h
- Compatible Filter Tank
- 6"-18"
- Mounting Base
- 2.5"-8NPSM
- Riser Pipe
- 1"D-GB
Connection Details
- Inlet/Outlet
- NPT 1
- Drain Connector
- NPT 3/4
- Brine Line Connector
- G3/8
Operating Environment
- Water Pressure Range
- 0.15-0.6 Mpa
- Water Temperature
- 5-50°C
- Ambient Temperature
- 5-50°C
- Max Relative Humidity
- ≤95% (at 25°C)
Power Requirements
- Input Voltage
- AC100-240V / 50-60Hz
- Output Voltage
- DC12V / 2A
Features
Optional Equipment
- Bypass valve F70F compatible
- Regeneration Cycles
- ServiceBackwashBrineSlow RinseRefillFast Rinse
