Automatic Multiport Water Softener Valve
This automatic multiport valve is designed for efficient water softening processes. It features an electronic control panel for programming and monitoring softening, backwashing, and rinsing cycles.
Technical Specifications
Overview
Professional Water Treatment Control

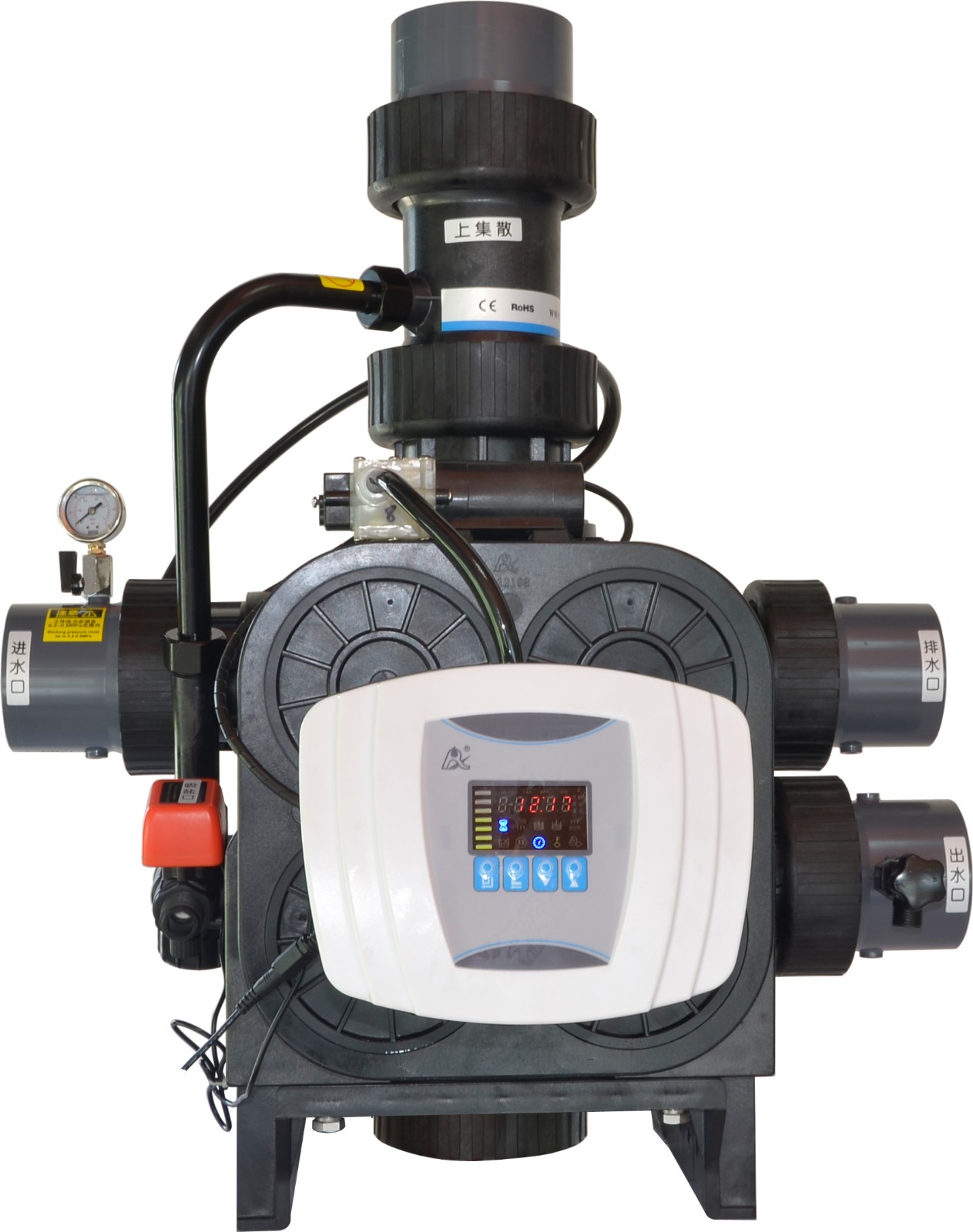

The F96 series automatic multiport valve is engineered for high-capacity water softening systems, featuring a robust T-configuration body with four ports for efficient flow management. This versatile controller supports comprehensive regeneration cycles including backwash, brine draw, slow rinse, fast rinse, and brine refill. Designed for industrial reliability, it offers precise electronic control with options for both time-clock and meter-based operation.
Technical Specifications
Model Comparison
| Model | Type |
|---|---|
| F96A1 | Time clock |
| F96A3 | Meter type |
Performance Metrics
50 m3/h
Flow Rate
0.6 MPa
Max Pressure
5 FTU
Max Turbidity
Operating Environment
- Water Temperature: 5-50°C
- Water Pressure: 0.2-0.6 MPa
- Relative Humidity: ≤95% (at 25°C)
Installation & Compatibility
Connection Ports
- Inlet/Outlet: DN80
- Drain: DN80
- Brine Line Connector: 3/4" M
- Distributor Basket: DN100
Mounting Configuration
Side mountTop and bottom distributor
Electrical
- Power Requirements
- Input: AC100~240V/50~60HZ; Output: DC24V/4A
Compliance
- Certifications
- CERoHS
