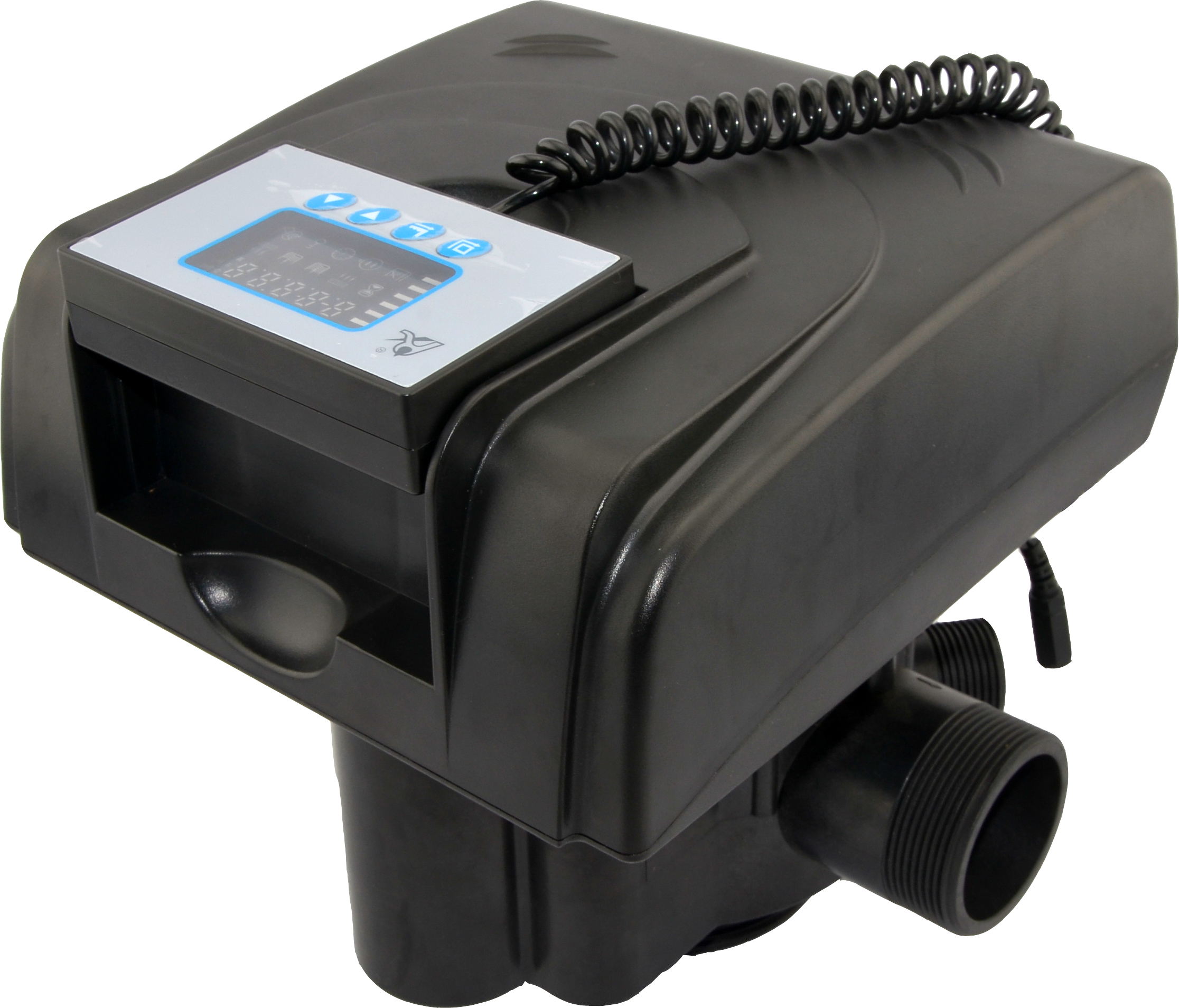

Automatic Multiport Water Softener Valve
This automatic multiport valve is designed for water softener systems, controlling water flow during softening and regeneration. It features an electronic control panel for programming and monitoring, ensuring efficient water usage and optimal softening.
Technical Specifications
Overview
Automatic Water Softening Control
This automatic multiport water softener valve is engineered for efficient water treatment and softening processes. It features a corrosion-resistant design and supports essential cycles including backwash, brine draw, slow rinse, brine refill, and fast rinse. Designed for reliability, this unit ensures optimal performance in residential and light commercial water systems.
Performance Metrics
Flow Rate
10 m3/h
Flow Rate
Technical Specifications
- Model Numbers
- N74B1N74B363510B63610B
- Inlet/Outlet Size
- 2 inch Male
- Drain Connection
- 1 inch Male
- Brine Line Connector
- 1/2 inch Male
- Mounting Base
- 4 inch - 8UN
- Riser Pipe
- 1.5 inch D-GB
Operating Conditions
Ambient Environment
- Ambient Temperature: 5°C - 50°C
- Relative Humidity: ≤ 95% (at 25°C)
- Water Pressure
- 0.2 - 0.6 MPa
- Water Temperature
- 5 - 50 °C
- Max Water Turbidity
- < 5 FTU
Power Requirements
Power Adapter Specifications
| Parameter | Specification |
|---|---|
| Input | AC100-240V / 50-60Hz |
| Output | DC24V / 1.5A |
