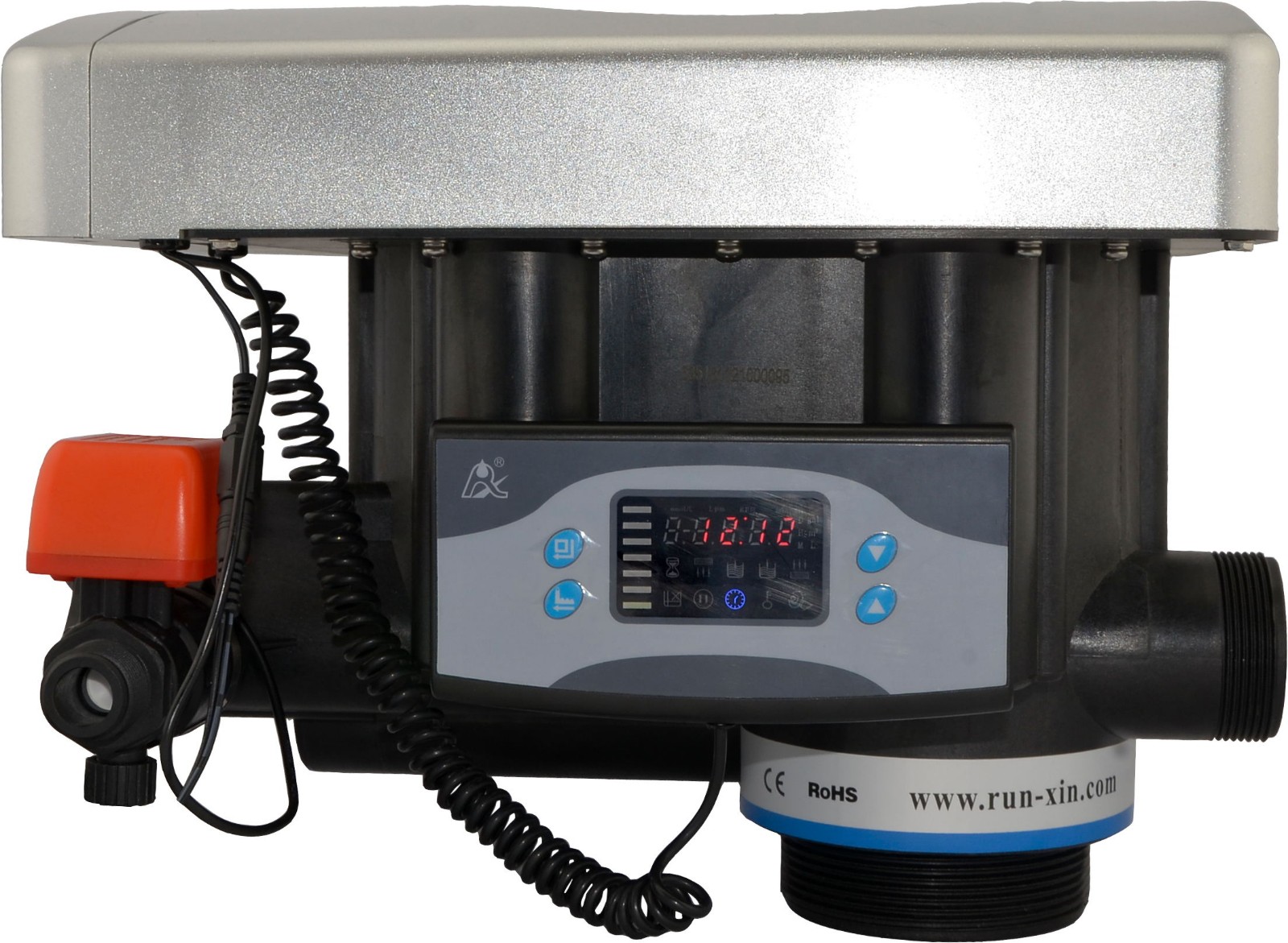

Automatic Multiport Water Softener Valve
This automatic multiport softener valve is designed for residential and light commercial water softening applications. It features an electronic control panel for easy programming and operation, as well as adjustable regeneration cycles.
Technical Specifications
Product Overview
Automatic Multiport Water Softener Valve
This automatic multiport valve is designed for efficient water softening and treatment applications. It features a corrosion-resistant construction and utilizes a dual-valve core system to precisely control water inflow, brine management, outflow, and drainage. Available in both timer clock (N77A1) and meter-based (N77A3) configurations, this versatile unit supports top or side mounting for flexible installation in residential and light commercial systems.
Technical Specifications
Available Models
- N77A1 (Timer Clock Type)
- N77A3 (Meter Type)
- Max Flow Rate
- 18 m3/h
- Compatible Tank Size
- 24" - 42"
- Operating Pressure
- 0.2-0.6 MPa
- Operating Temperature
- 5-50°C
- Max Water Turbidity
- <20 FTU
Installation & Connectivity
- Mounting Options
- Top mountSide mount
- Inlet/Outlet Connection
- 2" Male
- Drain Connection
- 1.5" Male
- Brine Line Connection
- 3/4" Male
Power & Environment
- Power Input
- AC100~240V / 50~60Hz
- Power Output
- DC24V / 1.5A
- Max Relative Humidity
- ≤95% (at 25°C)
Certifications
Compliance Standards
CERoHS
