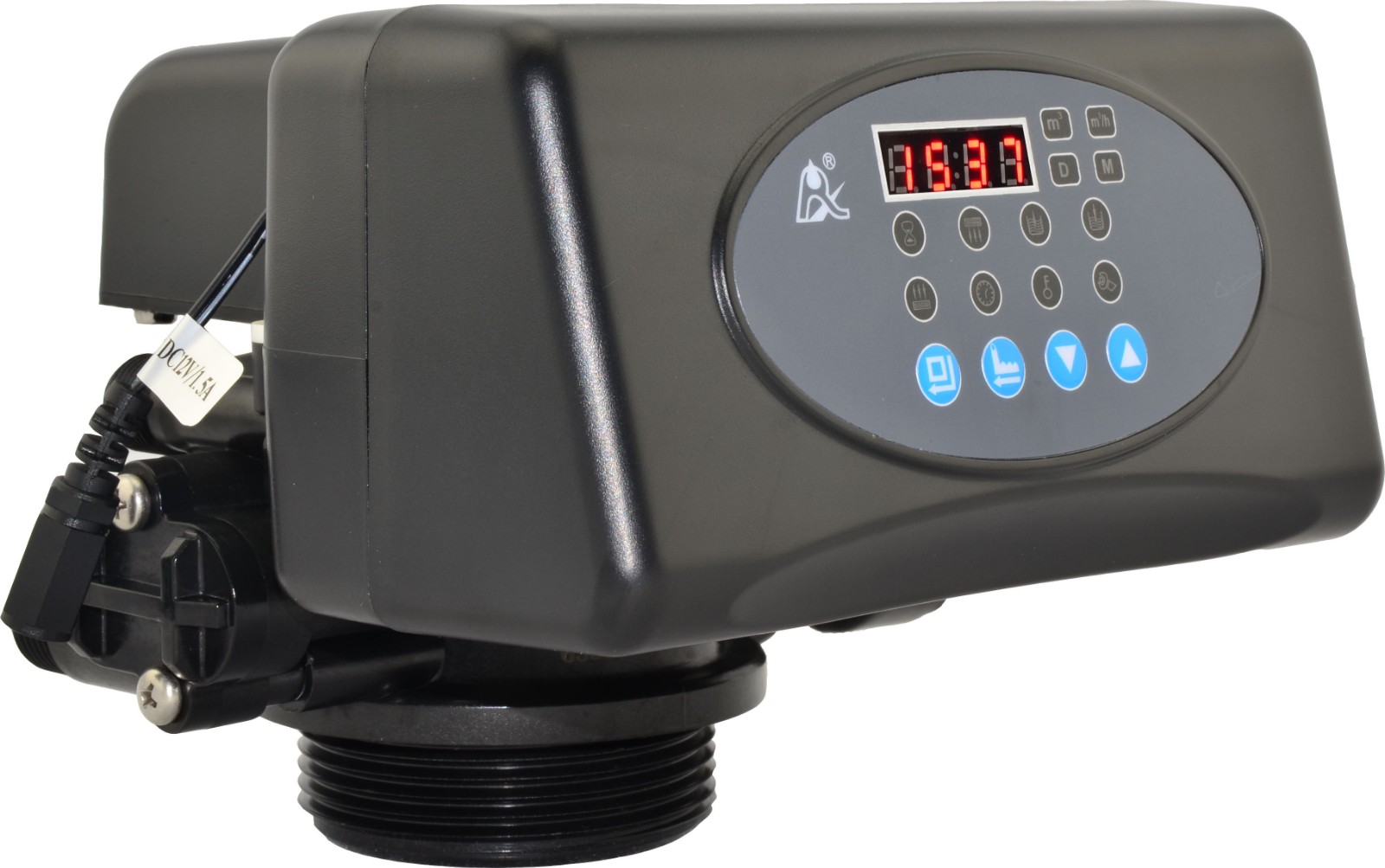

Automatic Multiport Water Softener Valve
This automatic multiport valve is designed for water softener systems in residential and light commercial applications. It features an electronic control panel with an LED display for easy programming and monitoring of the regeneration cycle.
Technical Specifications
Product Overview
Automatic Multiport Water Softener Valve
This automatic multiport valve is designed for efficient water softening and treatment systems. It features a corrosion-resistant construction and supports multiple regeneration stages including service, backwash, brine and slow rinse, brine refill, and fast rinse. Available in both timer clock (F65P1) and meter (F65P3) configurations, it provides versatile control for residential and light commercial ion exchange and RO pretreatment applications.
Technical Specifications
Flow Rate
2 m³/h
Max Flow Rate
Mounting & Connections
| Connection Type | Specification |
|---|---|
| Mount type | Top mount |
| Inlet/Outlet | 3/4" F |
| Drain | 1/2" M |
| Brine line connector | 3/8" M |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.05" OD |
- Regeneration Type
- Time clock type (F65P1)Meter type (F65P3)
Operating Conditions
Operating Parameters
- Water pressure: 0.15-0.6 MPa
- Water temperature: 5-50℃
- Water turbidity: <5 FTU
- Filter tank compatibility: 6"-12"
- Power Requirements
- Input AC100~240V/50~60HZ; Output DC12V/1.5A
- Corrosion Resistant
- Yes
Applications
Typical Applications
Ion exchange equipmentWater treatment systemRO pretreatment system
