Automatic Multiport Valve for Water Softeners
This automatic multiport valve is designed for water softening applications. Its electronic control panel allows for easy programming and monitoring of the softening process.
Technical Specifications
Overview

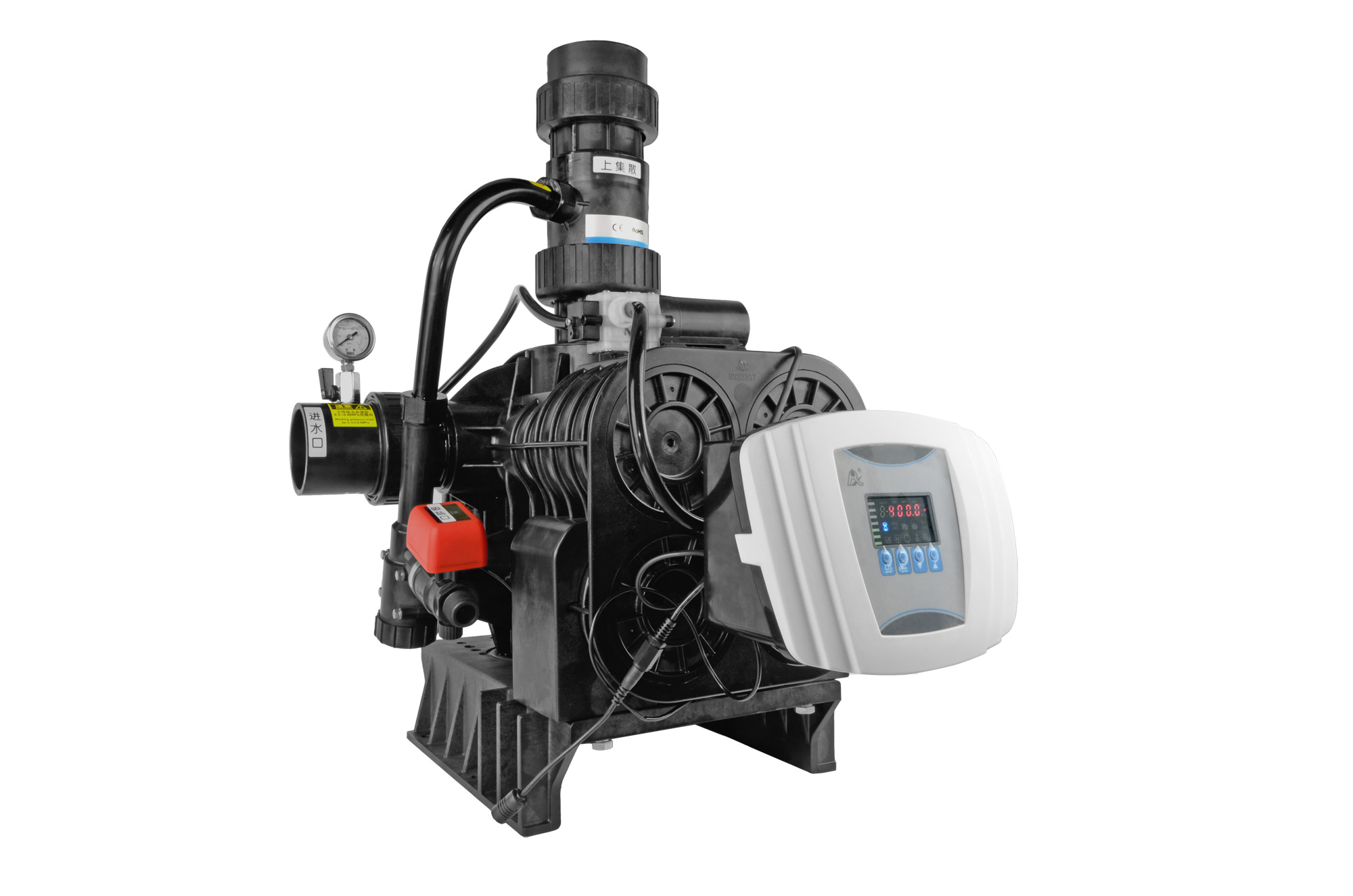

High-Capacity Automatic Multiport Valve
The F112A series automatic multiport valve is engineered for high-performance water softening systems, featuring a 4-port T-configuration design. It is highly versatile, suitable for both boiler softening systems and RO pretreatment applications, and supports integration with booster pumps. Designed for reliability, this valve ensures efficient water treatment with a robust flow rate capability of up to 40m³/h.
Technical Specifications
Flow Rate
40 m³/h
Flow Rate
Connection Sizes
| Connection Point | Size |
|---|---|
| Inlet/Outlet | DN65 |
| Drain | DN65 |
| Brine Line | 3/4" M |
| Riser Pipe | DN80 |
- Model Variants
- F112A1F112A363540B63640B
Operating Conditions
- Water Pressure
- 0.6 MPa
- Water Temperature
- 5-50°C
- Max Turbidity
- <5 FTU
- Max Relative Humidity
- ≤95% (at 25°C)
Electrical
Power Requirements
- Input: AC100~240V / 50~60Hz
- Output: DC24V / 4A
System Configuration
Regeneration Method
Time ClockMeter Type
- Compatible Filter Tank Size
- 24" - 60"
