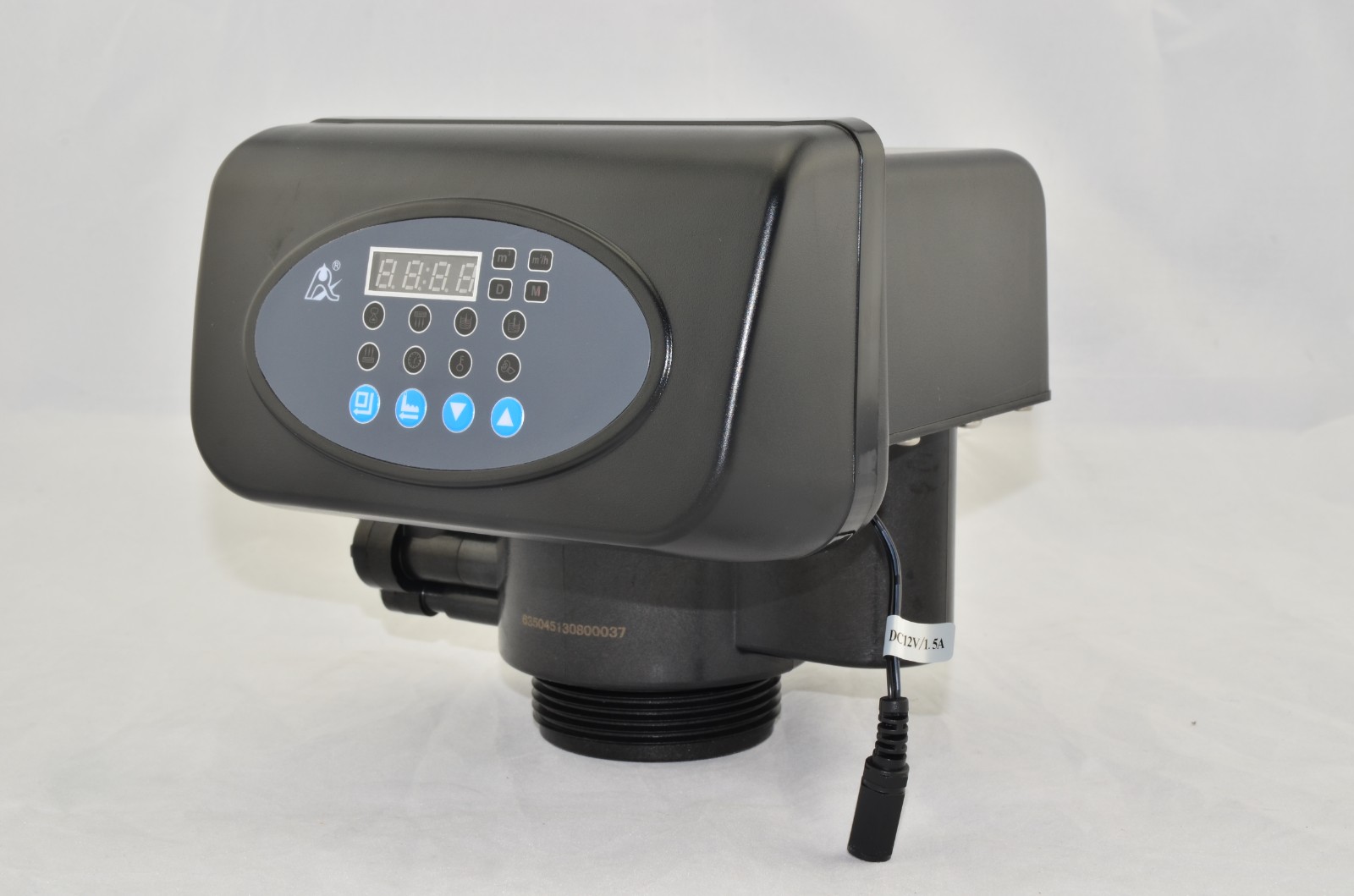

Automatic Multiport Softener Valve
This automatic multiport softener valve is designed for residential and light commercial water softening applications. It features programmable regeneration cycles and adjustable settings for optimal water treatment performance.
Technical Specifications
Overview
Automatic Multiport Softener Valve
This automatic multiport softener valve is engineered for efficient water treatment in residential and light commercial applications. It supports comprehensive regeneration cycles, including service, backwash, brine draw, slow rinse, brine refill, and fast rinse. Designed for durability and ease of use, the unit features a corrosion-resistant construction and is compatible with standard softener tanks, making it a reliable choice for ion exchange and RO pretreatment systems.
Technical Specifications
Performance Metrics
4 m3/h
Flow Rate
0.15 Mpa
Min Pressure
0.6 Mpa
Max Pressure
Connection Specifications
| Connection Point | Specification |
|---|---|
| Inlet/Outlet | 1"M |
| Drain | 1/2"M |
| Brine Line | 3/8"M |
| Mounting Base | 2.5"-8NPSM |
| Riser Pipe | 1.05"OD |
- Regeneration Types
- Time Clock (F63P1)Meter Type (F63P3)
Operating Conditions
Operating Limits
- Water Temperature: 5-50℃
- Water Turbidity: <5FTU (Down-flow regeneration)
- Filter Tank Compatibility: 6"-18"
- Power Supply
- Input AC100~240V/50~60HZ, Output DC12V/1.5A
Applications
Suitable Systems
Ion Exchange EquipmentWater Treatment SystemsRO Pretreatment Systems
