Automatic Multiport Softener Valve
This automatic multiport softener valve is designed for residential and light commercial water softening applications. It provides efficient regeneration cycles and user-friendly programming for optimized water usage and performance.
Technical Specifications
Overview

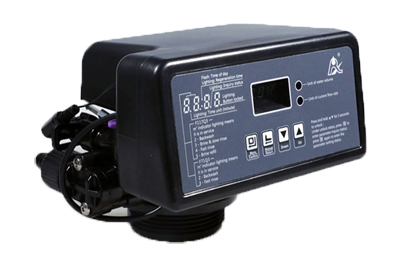

Automatic Multiport Softener Valve
The F117Q series automatic multiport softener valve is a corrosion-resistant solution designed for residential and light commercial water softening. It supports versatile regeneration modes, including time-clock initiated (F117Q1) and meter-initiated (F117Q3) options, providing flexibility to optimize water usage and salt consumption. The unit features an intuitive electronic control panel for easy programming and monitoring of critical cycles like backwash, brine draw, and rinse.
Technical Specifications
Model Variants
| Model | Type |
|---|---|
| F117Q1 | Time clock type |
| F117Q3 | Meter type |
- Flow Rate
- 3 m3/h
- Operating Pressure
- 0.15-0.6 MPa
- Water Temperature
- 5-50 °C
- Regeneration Type
- Down-flow regenerationTime clockMeter initiated
Installation Details
Mounting & Connections
- Mount type: Top mount
- Inlet/Outlet: 3/4" F
- Drain: 3/4" M
- Brine line connector: 3/8" M
- Mounting base: 2.5"-8NPSM
- Riser pipe: 1.05" OD
- Compatible Filter Tanks
- 6" - 12"
Electrical Requirements
Power Adapter Specs
100 V
Input Voltage Min
240 V
Input Voltage Max
12 V
Output Voltage
1.5 A
Output Current
Features
Regeneration Cycles
ServiceBackwashBrine & Slow RinseBrine RefillFast Rinse
