Automatic Multi-Gun Spraying Machine for Doors

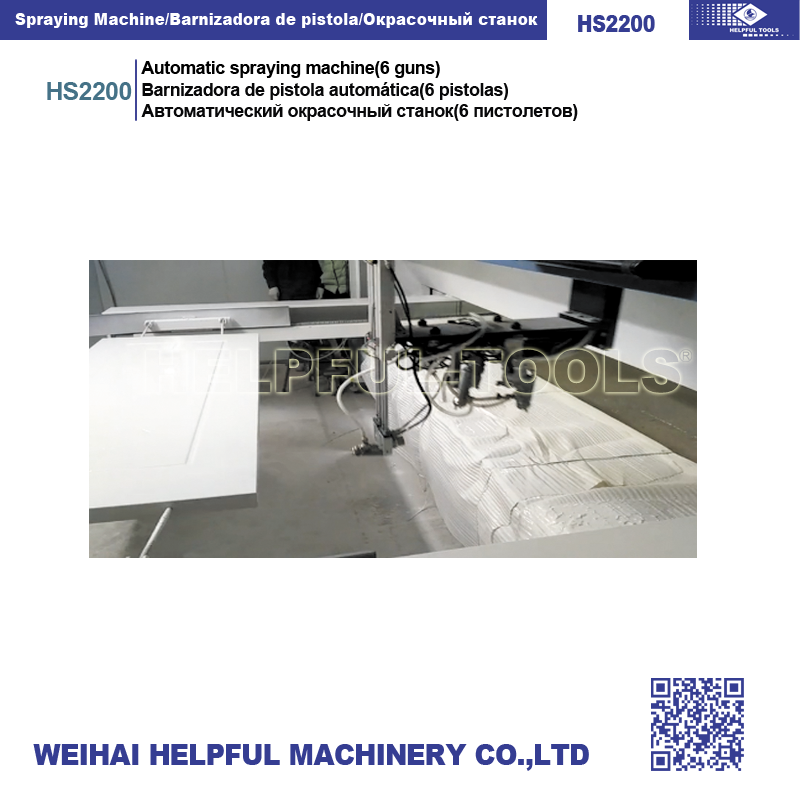

This automatic spraying machine is designed for coating doors and panels. The machine utilizes an automated system for applying coatings with high precision and consistency.
Technical Specifications
Overview
High-Efficiency Automatic Door Spraying

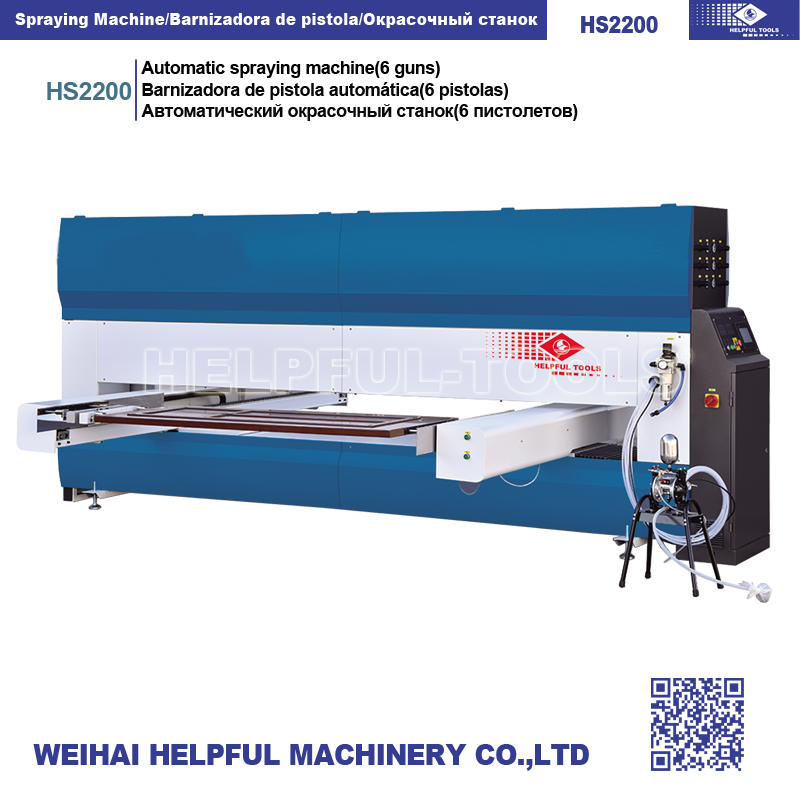

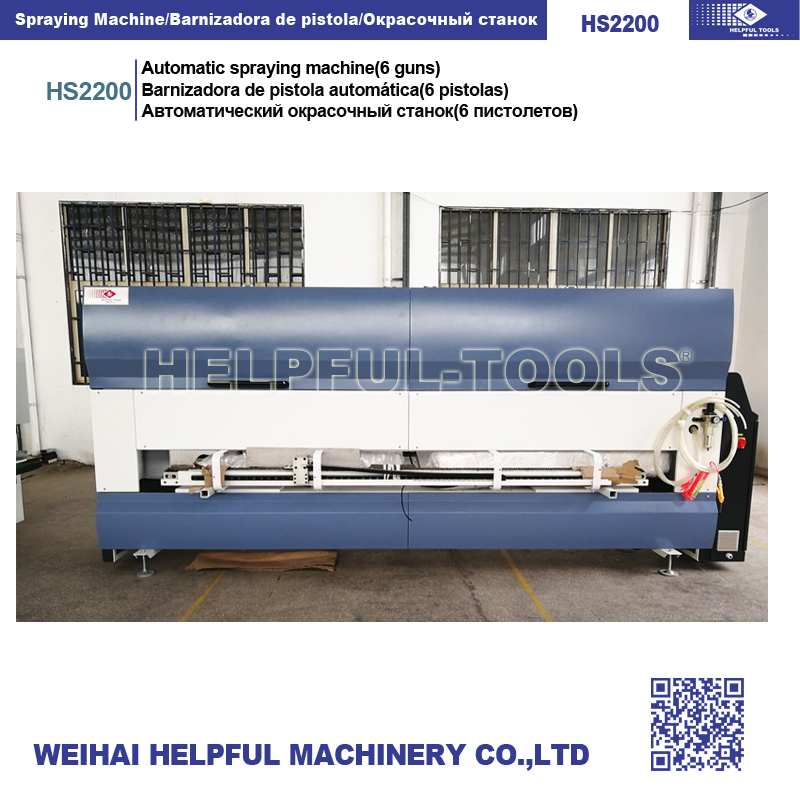

The HS2200 is a professional-grade automatic spraying machine equipped with a 6-gun configuration designed specifically for doors and flat panels. It ensures consistent, high-quality coating application with adjustable speeds to match industrial production requirements. This automated system optimizes material usage while delivering a smooth, uniform finish for various coating types including paints and varnishes.
Key Features
Key Highlights
6 pcs
Spray Guns
8 m/min
Max Feeding Speed
100 m/min
Reciprocate Speed
Technical Specifications
Technical Parameters
| Parameter | Value |
|---|---|
| Model | HS2200 |
| Max. Workpiece Size | 2500 x 1200 x 80 mm |
| Max. Workpiece Weight | 50 kg |
| Air Pressure | 0.5 - 0.8 Mpa |
| Total Power | 1.5 kw |
| Machine Weight | 1200 kg |
| Dimensions | 4720 x 3700 x 1950 mm |
Operational Capabilities
Primary Applications

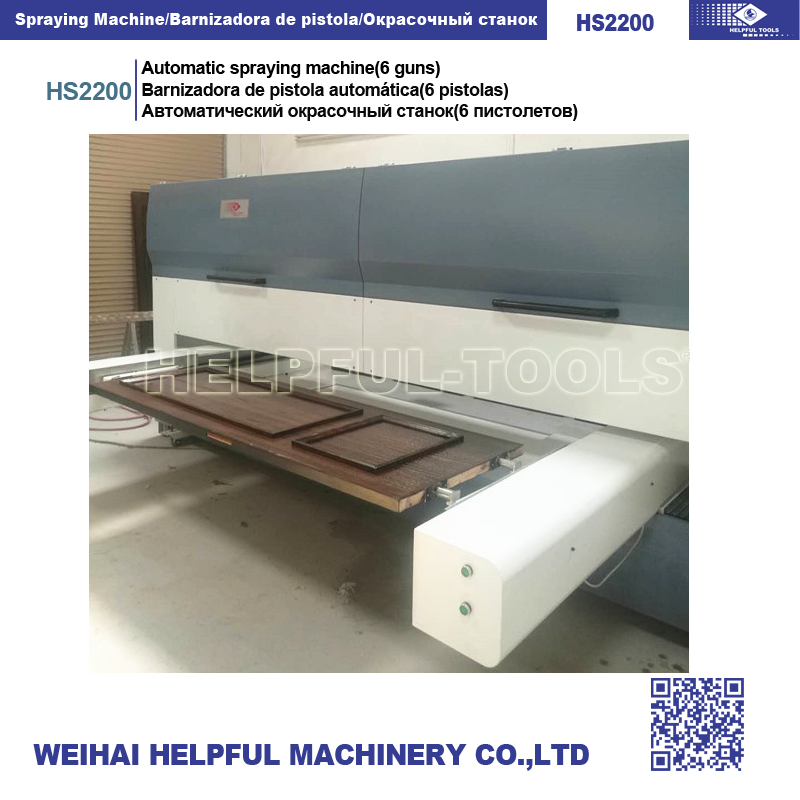

- Wooden Doors
- Flat Panels
- Furniture Components
- Industrial Surface Finishing
- Suitable Coatings
- PaintVarnishIndustrial Coatings
Performance
Performance Benefits
- High transfer efficiency with minimal overspray
- Precise automated controls for consistent quality

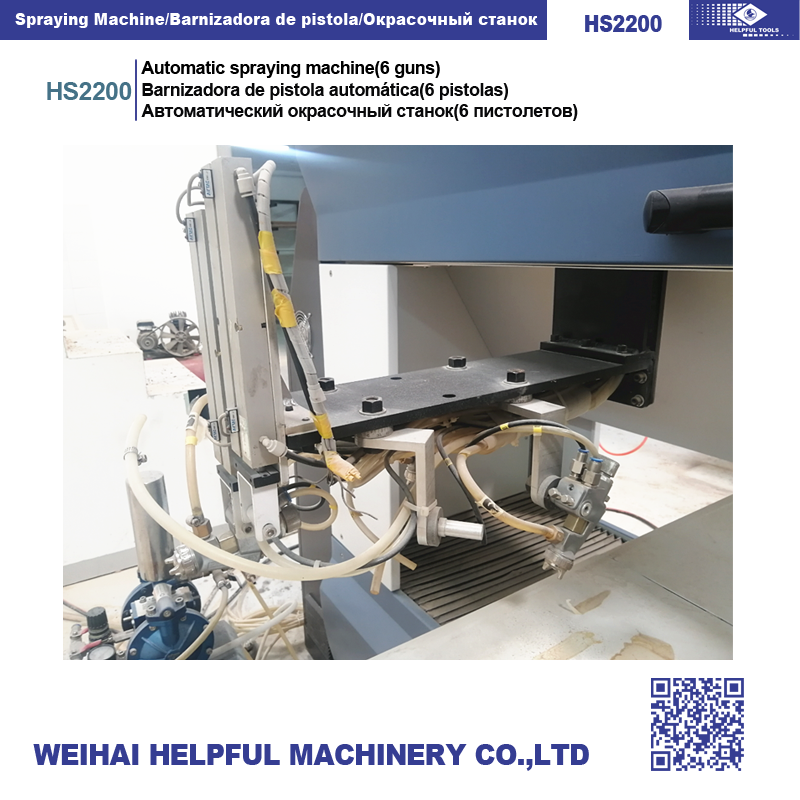

- Multi-gun setup to optimize coverage area
- Reduced processing time for high-volume production
