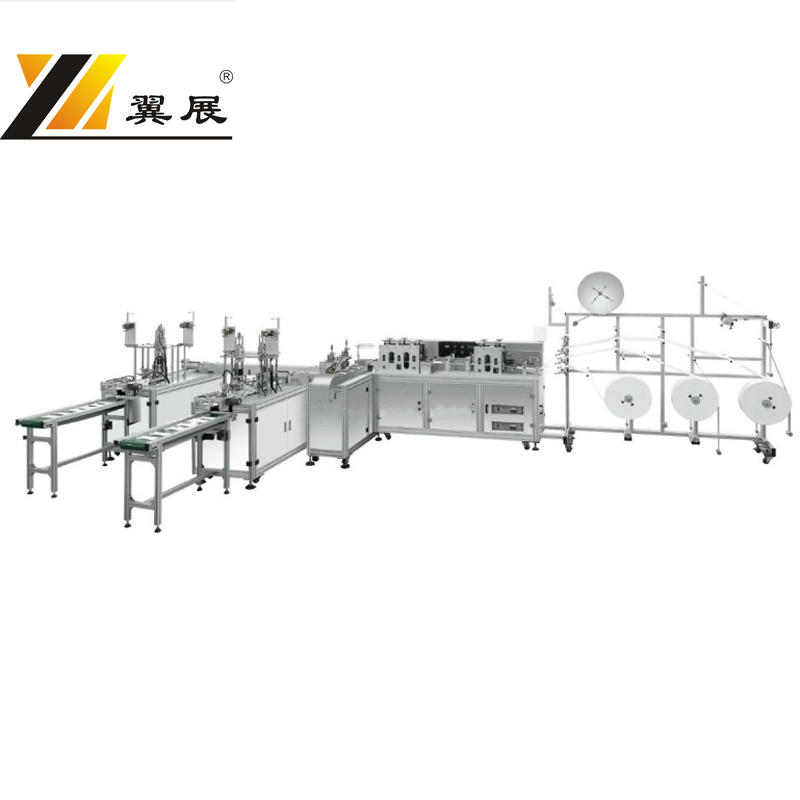

Automatic Flat Face Mask Production Machine
This machine features an aluminum alloy structure for enhanced durability. It integrates raw material feeding, folding, pressing, forming, ear-loop welding, and cutting processes to produce finished masks efficiently.
Technical Specifications
Overview
High-Efficiency Flat Mask Production
The YZJ-120B is a high-speed, fully automated machine designed for the consistent production of flat disposable masks. Integrating raw material feeding, ultrasonic welding, and ear-loop attachment into one system, it ensures high stability through PLC program control and photoelectric detection. Its compact, aluminum alloy structure maximizes production capacity while minimizing space requirements and labor costs.
Technical Specifications
Core Performance
120 pcs/min
Maximum Speed
12 Kw
Power Consumption
1,500 Kg
Machine Weight
- Physical Dimensions
- 7000 x 3600 x 2000 mm
- Air Consumption
- 30 m³/h
Environment
Operating Requirements
| Parameter | Value |
|---|---|
| Temperature | 15°C - 35°C |
| Humidity | 40% - 80% (non-condensing) |
| Power Supply | AC 220V / 50Hz |
| Air Pressure | 86 - 106 kPa |
Key Features
Advanced Functionalities
- Automatic nose bridge wire feeding
- Waste edge collection system
- Automated counting and batch shut-off
- PLC-based photoelectric error detection
- Integrated ultrasonic side sealing and cutting
- Build Quality
- Aluminum Alloy StructureUltrasonic WeldingCompact Design
