Automatic Flask and Bottle Lacquer Spray Machine

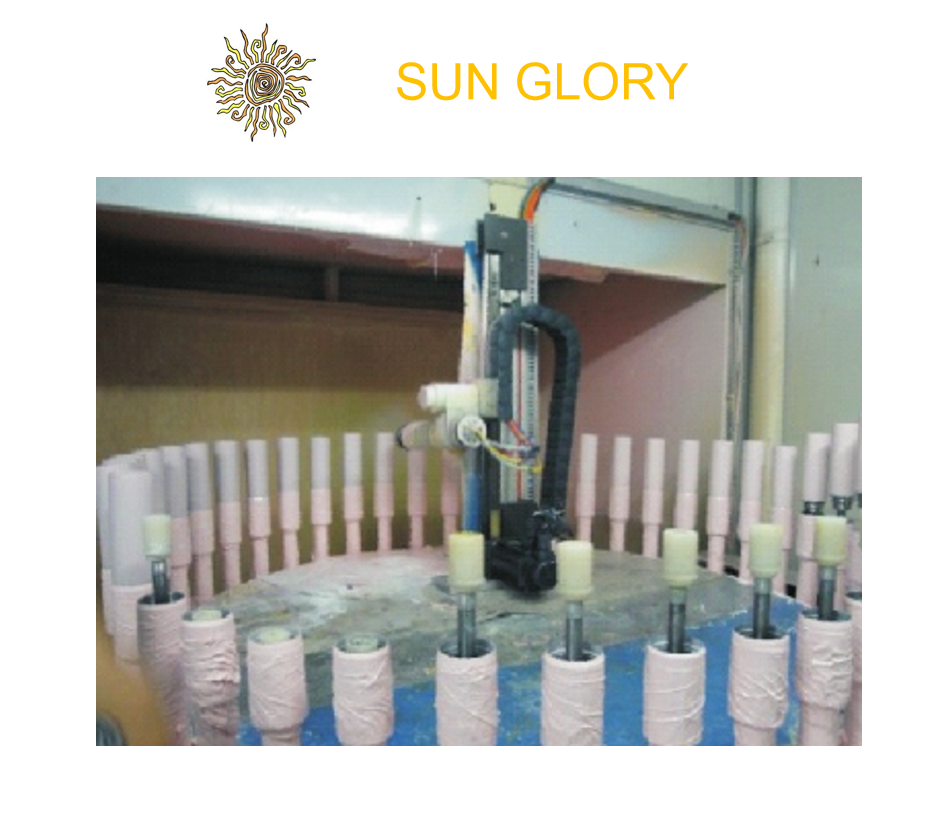

This automatic machine applies lacquer to vacuum flasks and water bottles. It uses a robotic arm and rotating platform to ensure even coating and consistent quality.
Technical Specifications
Overview
High-Efficiency Lacquer Spraying Solution
This automatic vacuum flask lacquer spray painting machine is engineered for high-volume production, capable of processing up to 13,000 units per 10-hour shift. It features advanced automation for both painting and unloading, ensuring consistent quality and reduced labor requirements. Designed with eco-friendly features like water recycling and waste reduction systems, this machine provides a sustainable and cost-effective solution for finishing stainless steel, aluminum, and copper bottles.
Performance & Capacity
Daily Capacity
13,000 pcs/10hrs
Max Output
Technical Features
Automation Capabilities
- Automatic painting process
- Automatic unloading system
- Programmable logic controller (PLC) for precise spray control
- Electrostatic generator for enhanced paint adhesion
- Automated lift mechanism for vertical movement
System Components
| Component |
|---|
| Electrical control system |
| Lift mechanism |
| Electrostatic generator |
| Oil supply system |
| Electrostatic spray gun |
| Spray chamber |
| Transportation turntable |
Efficiency & Sustainability
Cost Saving Metrics
- 320 tool fixtures capacity
- Improved paint utility ratio via short chain design
- Patented 2nd generation auto-static/non-static spray gun
- Environmental Features
- Water recycling systemWaste paint reductionClosed-loop vacuum systemFresh air supply
Flexibility
Operational Flexibility
Easy model changesSuitable for small quantity ordersSupports multiple bottle designsQuick sampling
