Automatic Edge Bander for Woodworking
This automatic edge bander is designed for applying edge banding materials to the edges of wooden panels. It features automatic feeding, edge trimming, end trimming, corner rounding, scraping, and buffing units.
Technical Specifications
Overview
High-Performance Woodworking Edge Bander

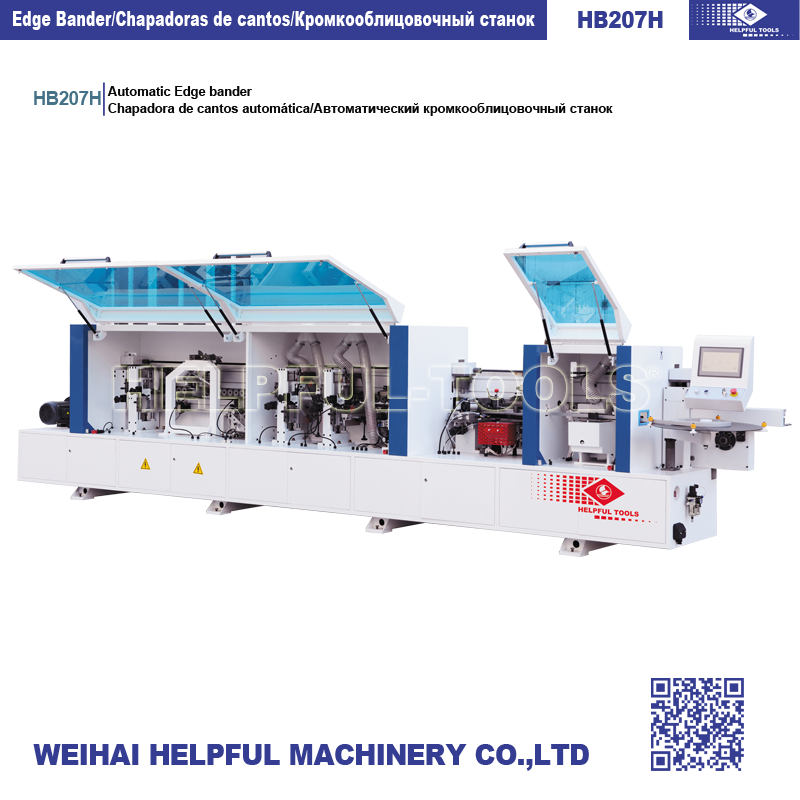

The HB207H is a fully automatic edge banding machine designed for high-efficiency furniture manufacturing. It handles a wide range of materials including PVC, ABS, veneer, and melamine with precision and speed. This robust industrial solution integrates multiple processing stages from gluing to buffing to ensure a professional, high-quality finish on every panel.
Key Performance Metrics
Performance Metrics
26 m/min
Max Feed Speed
0.7 mpa
Working Pressure
6.19 kw
Total Power
Technical Specifications
Model Specifications
| Feature | HB207 | HB207H |
|---|---|---|
| Total Power | 14.69kw | 6.19kw |
| Outline Length | 6200mm | 7000mm |
| Net Weight | 2300kgs | 2500kgs |
| Feed Speed | 0-26m/min | 0-26m/min |
Processing Capabilities
Material Capacities
- Edge thickness: 0.3-3mm (PVC)
- Panel thickness: 10-60mm
- Minimum panel length: ≥260mm
- Minimum panel width: ≥80mm
Operational Features
- Integrated Functions

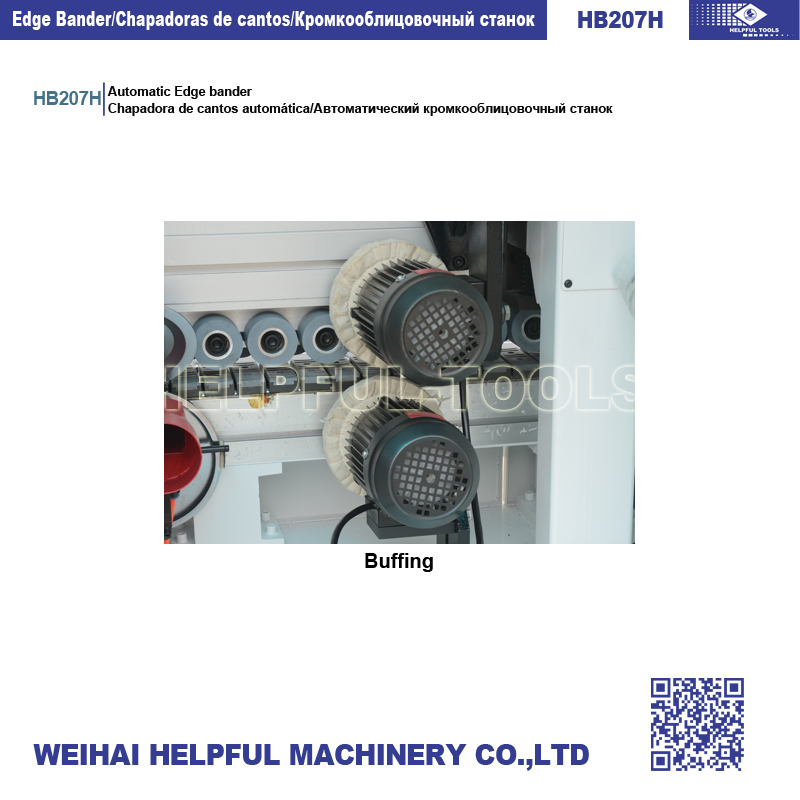

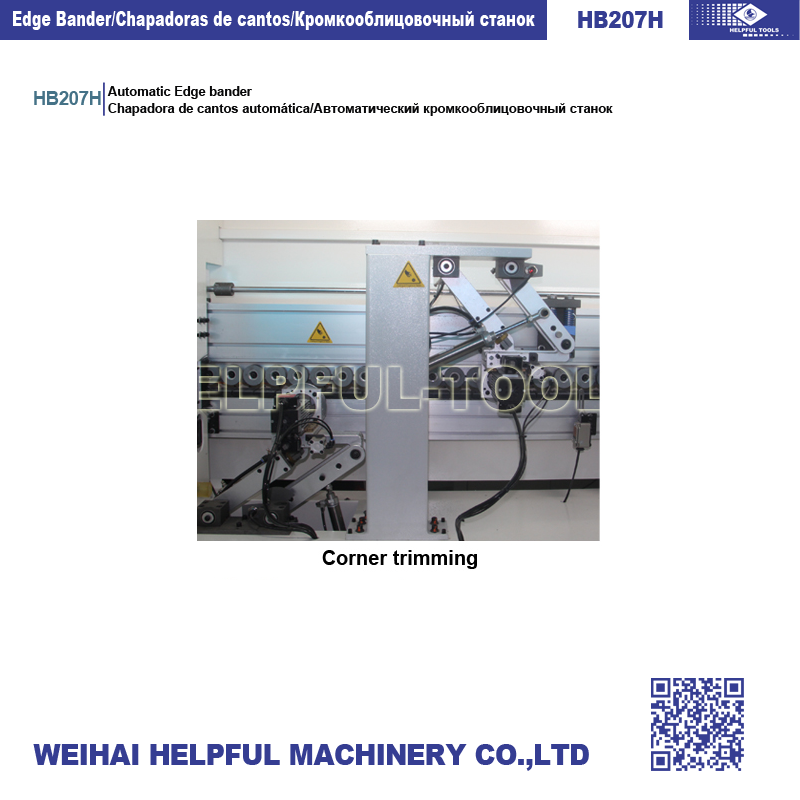

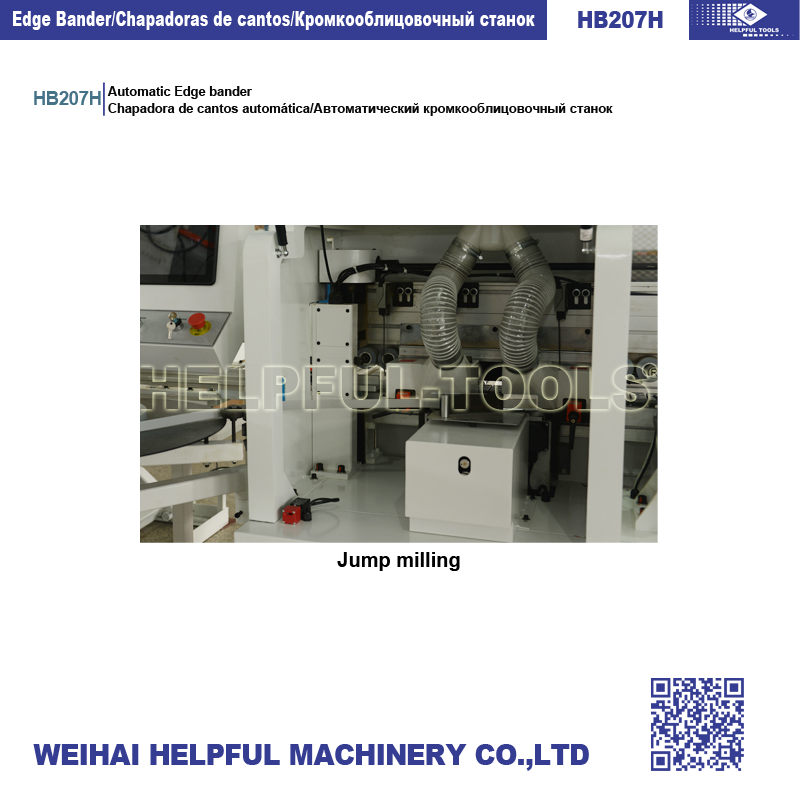

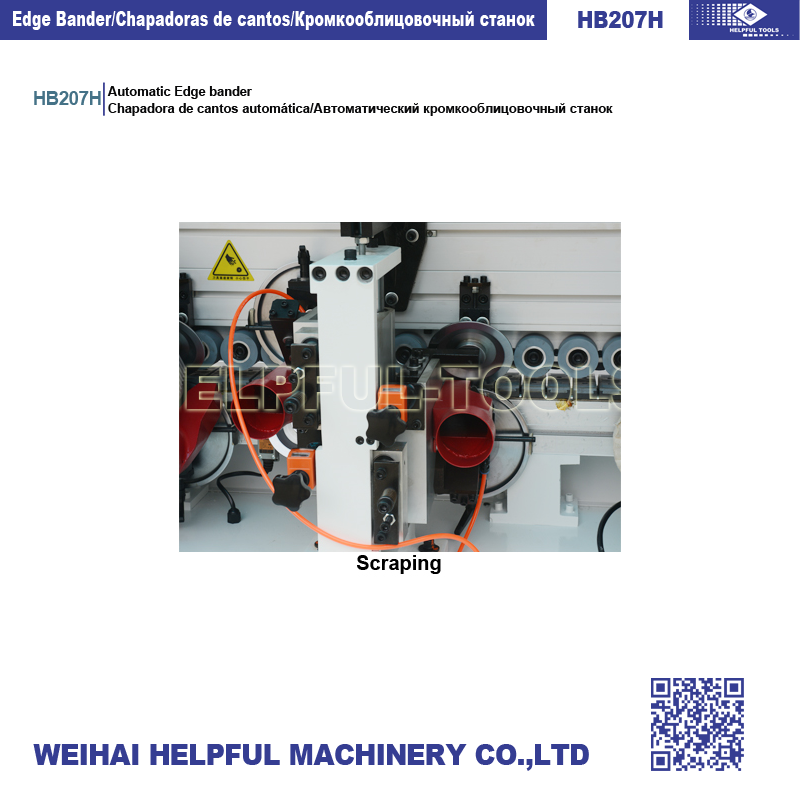

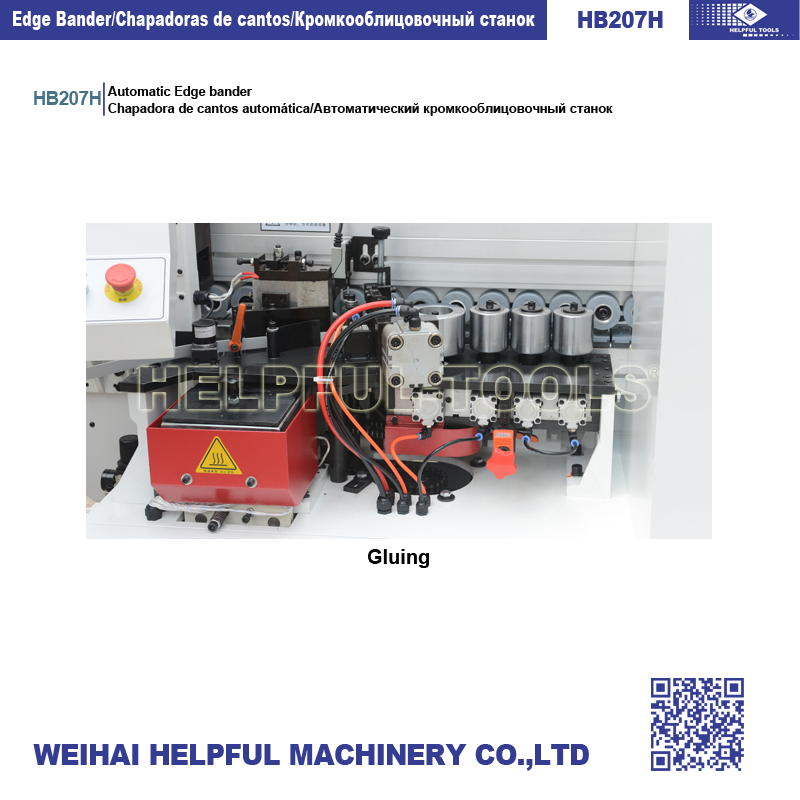

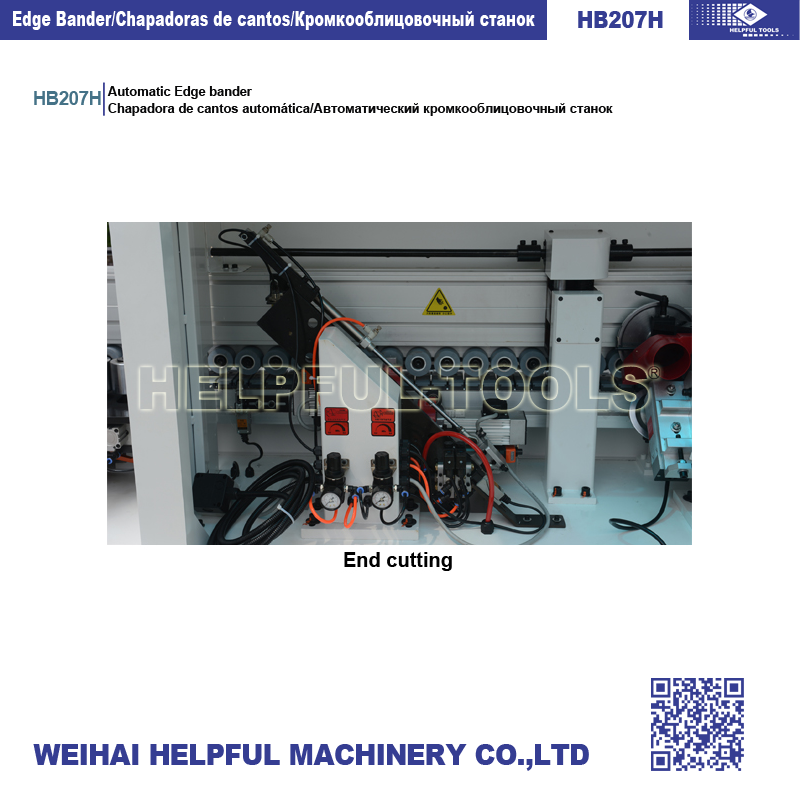

- Jump MillingGluingEnd CuttingRough TrimmingFine TrimmingCorner TrimmingScrapingBuffingNotching
Control & Operation

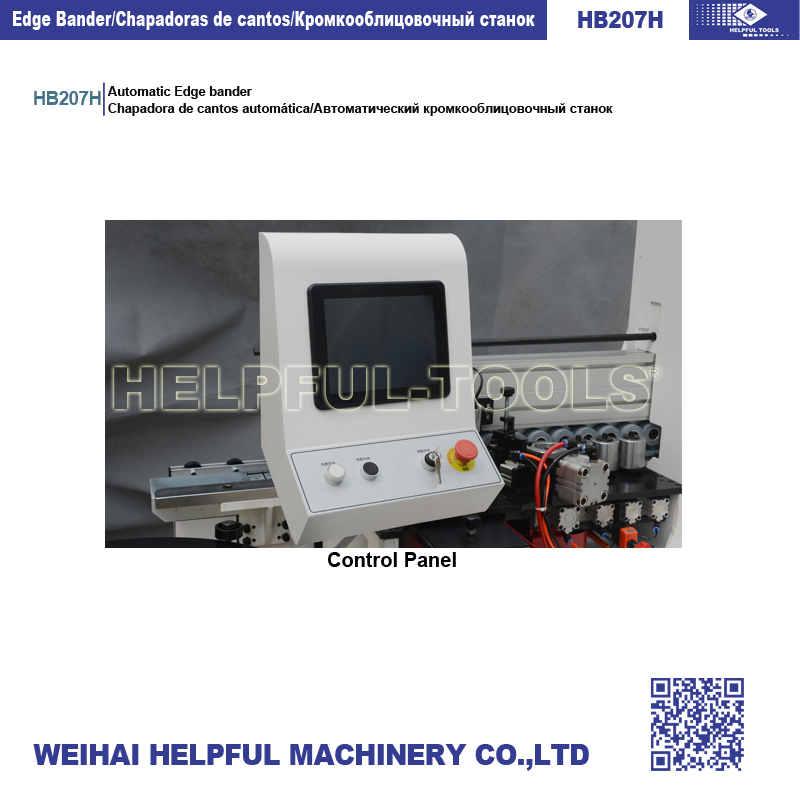

- Control System
- Equipped with a user-friendly control panel for easy operation and precise adjustment of processing parameters.
Physical Dimensions
- Machine Dimensions
- 900mm x 1600mm (Width & Height)
