Automatic Edge Bander
This automatic edge bander applies edge banding to various types of materials, such as particleboard, MDF, and plywood. The machine automates the edge banding process, ensuring precision and efficiency.
Technical Specifications
Overview
High-Efficiency Automatic Edge Bander
The HB202 is a professional-grade automatic edge bander designed for high-volume production environments. It delivers precision edge application for various materials including particleboard, MDF, and plywood, ensuring a clean and durable finish. This versatile machine automates the entire process from feeding and gluing to multi-stage trimming and buffing, significantly enhancing workshop productivity.
Key Performance Metrics
Performance Metrics
26 m/min
Max Feed Speed
8.85 kW
Total Power
1,500 kg
Net Weight
Processing Capabilities

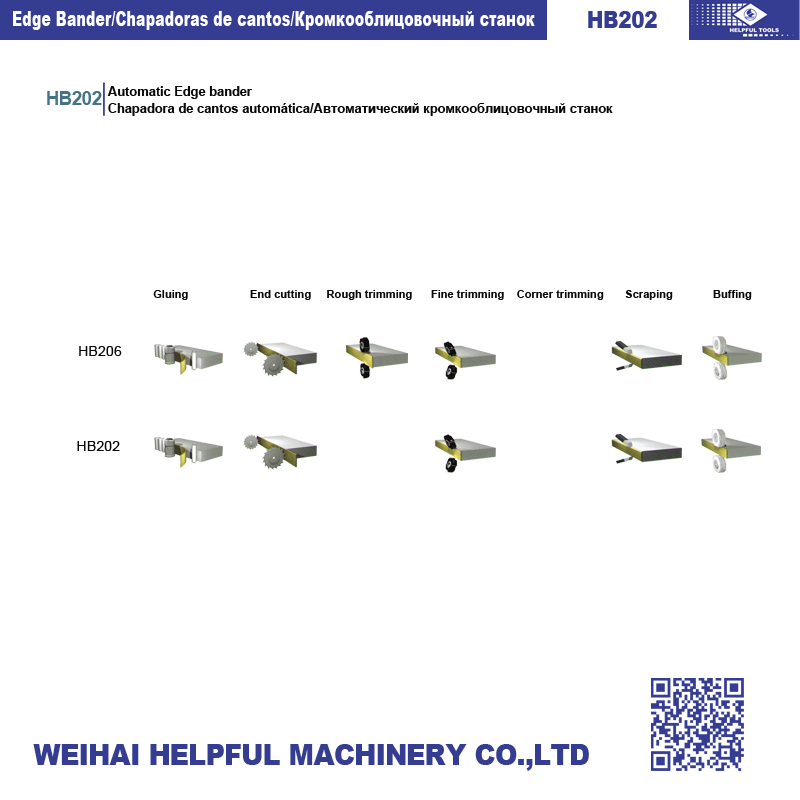

Integrated Processing Stations

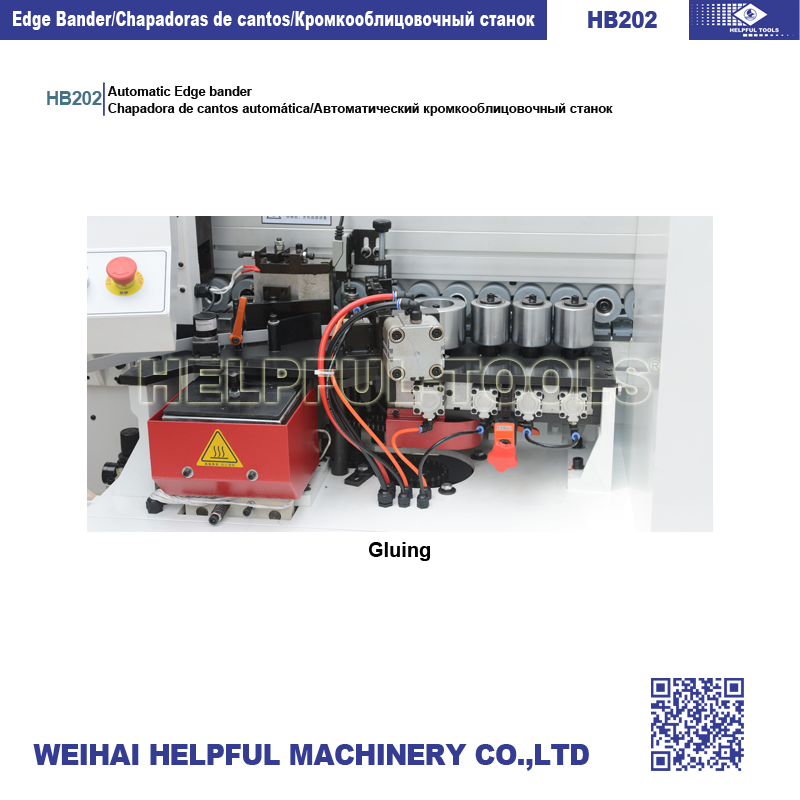

- Automatic Gluing

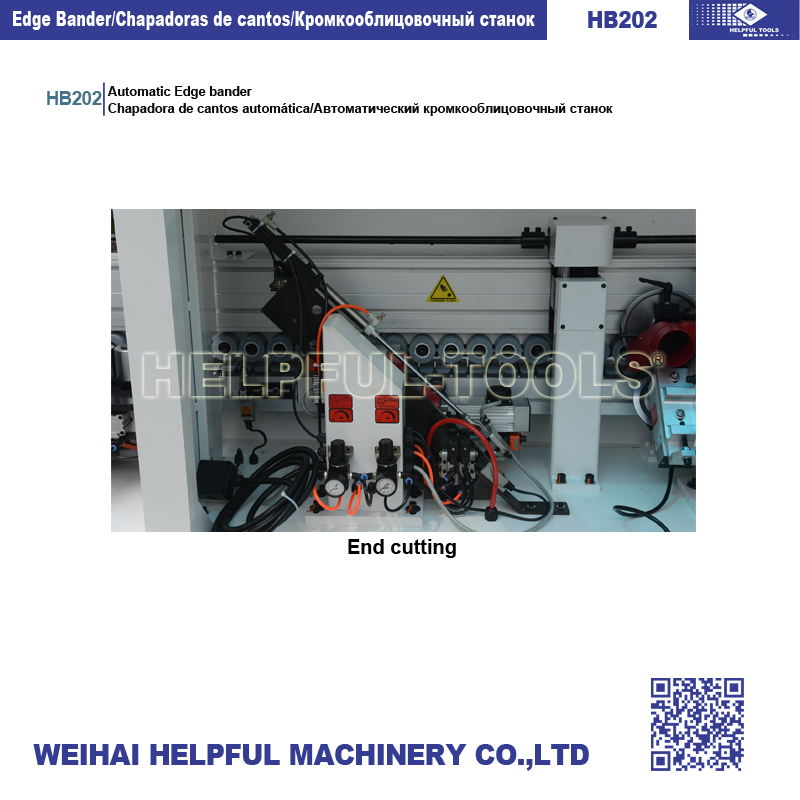

- End Cutting
- Rough Trimming

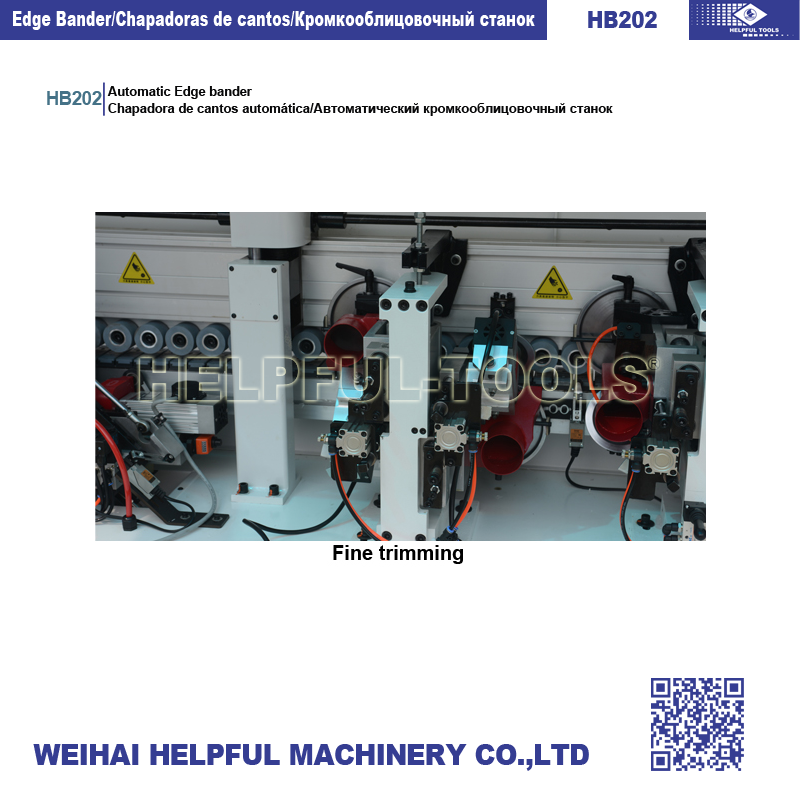

- Fine Trimming
- Corner Trimming

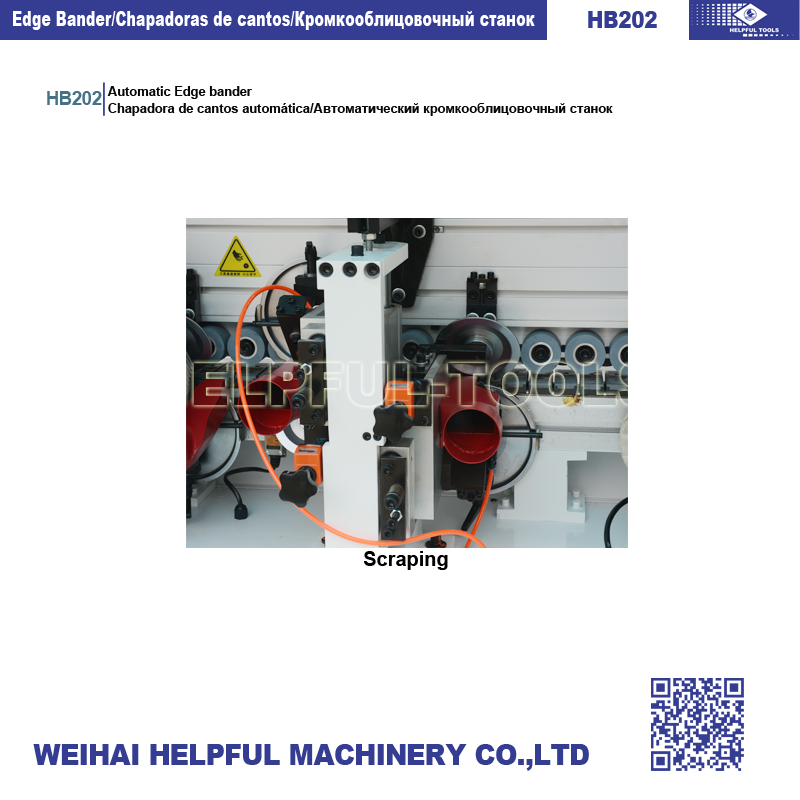

- Scraping

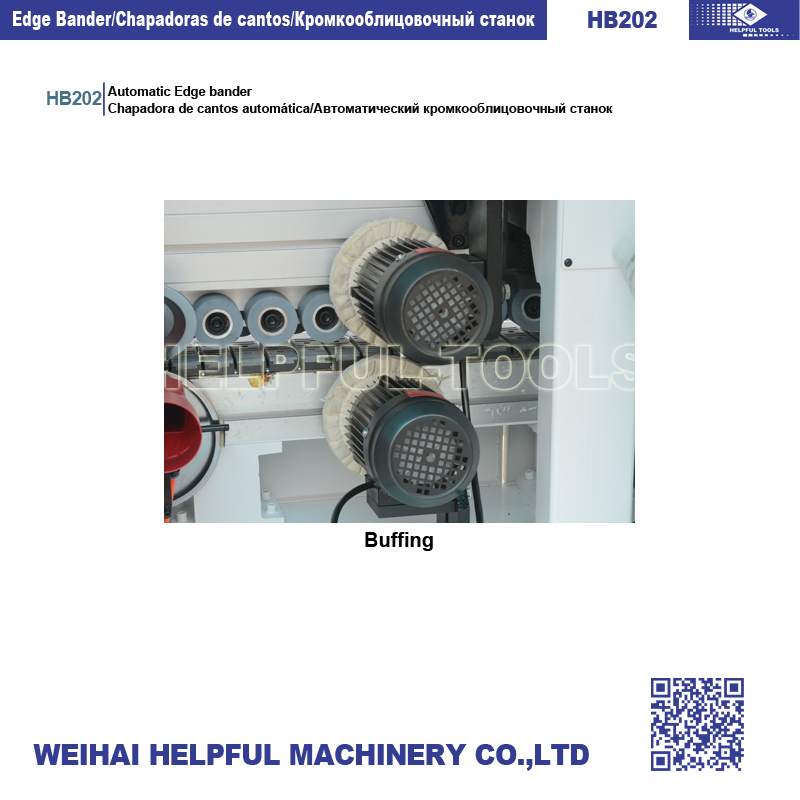

- Buffing
- Compatible Materials
- MDFPlywoodParticleboardWood PanelsPVC Edging
Technical Specifications
Material & Panel Limits
| Parameter | Range/Value |
|---|---|
| Edge Thickness (PVC) | 0.3 - 3 mm |
| Panel Thickness | 10 - 60 mm |
| Minimum Panel Length | ≥160 mm |
| Feed Speed | 0 - 26 m/min |
Physical Dimensions
Machine Dimensions
| Dimension | Measurement |
|---|---|
| Length | 4400 mm |
| Width & Height | 900 x 1600 mm |
Operational Features

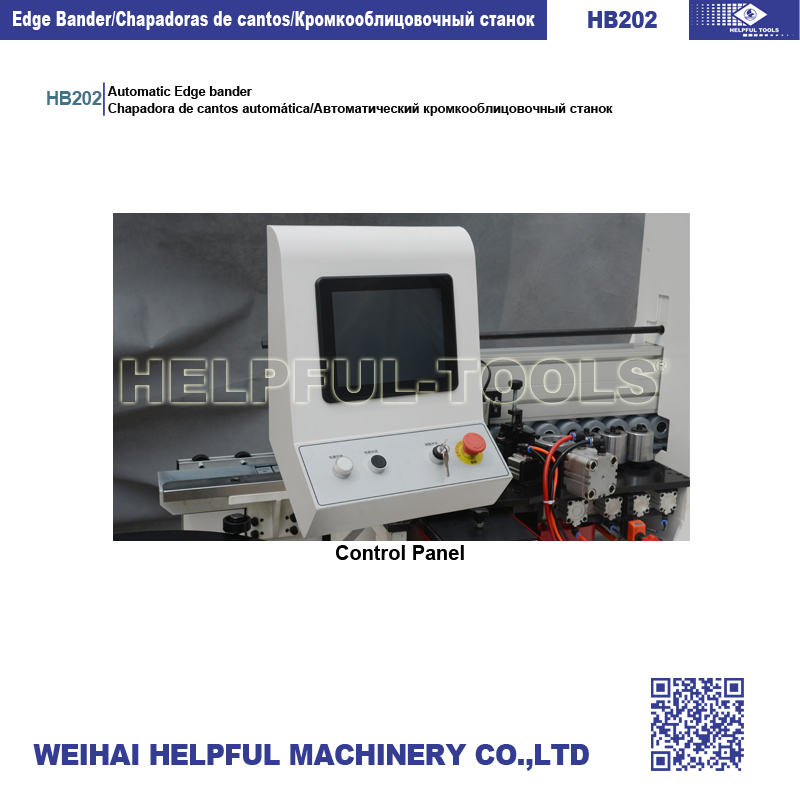

- Control & Feeding
- Equipped with a user-friendly control panel for precise adjustments and a robust feeding system for consistent application.
