Automated Welding Robot Workstation for Brackets and Pipes

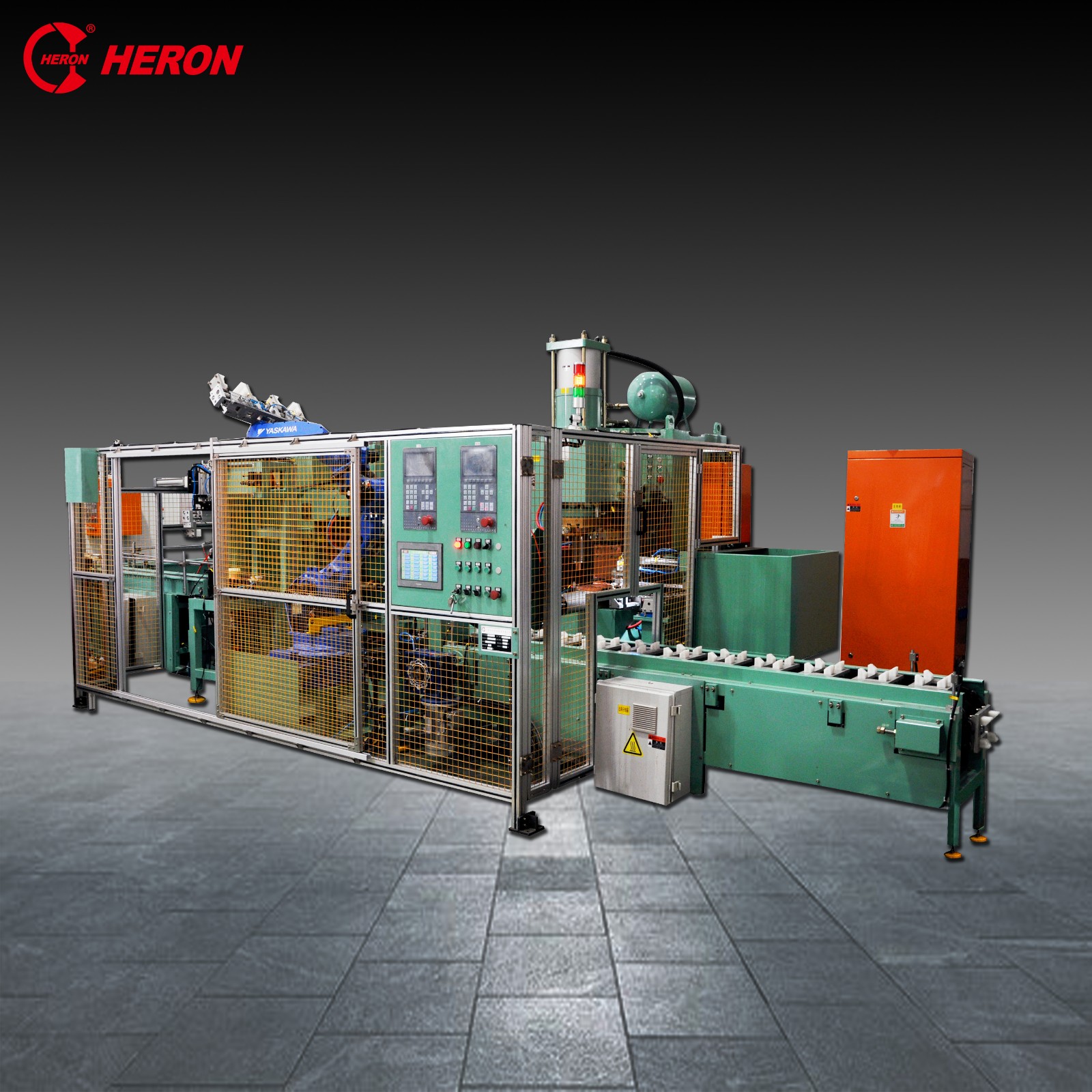

This automated workstation is designed for welding brackets and pipes. It features a robotic arm for precise welding within a safety cage, enhancing both production efficiency and safety.
Technical Specifications
Overview
Automated Welding Solution
This automated press welding robot workstation is specifically engineered for high-precision manufacturing of brackets and suck pipes within the compressor industry. The system integrates a robotic arm with a secure conveyor and fixture setup to ensure consistent weld quality and high production efficiency. Designed for industrial environments, it features robust construction and comprehensive safety measures for automated, high-volume production.
Technical Specifications
Rated Capacity
110 KVA
Rated Capacity 1
660 KVA
Rated Capacity 2
- Power Supply
- 380V/3Φ/50Hz
- Max Primary Current
- 120/280 A
- Max Short Cut Current
- 27/85 KA
- Max Working Pressure
- 11/27 KN
Physical Dimensions
- Dimensions (LxWxH)
- 7069 x 3347 x 2435 mm
Features
System Components
- Robotic welding arm
- Safety cage enclosure
- Automated conveyor belt
- Control panel with digital display
- Component fixtures
- Key Applications

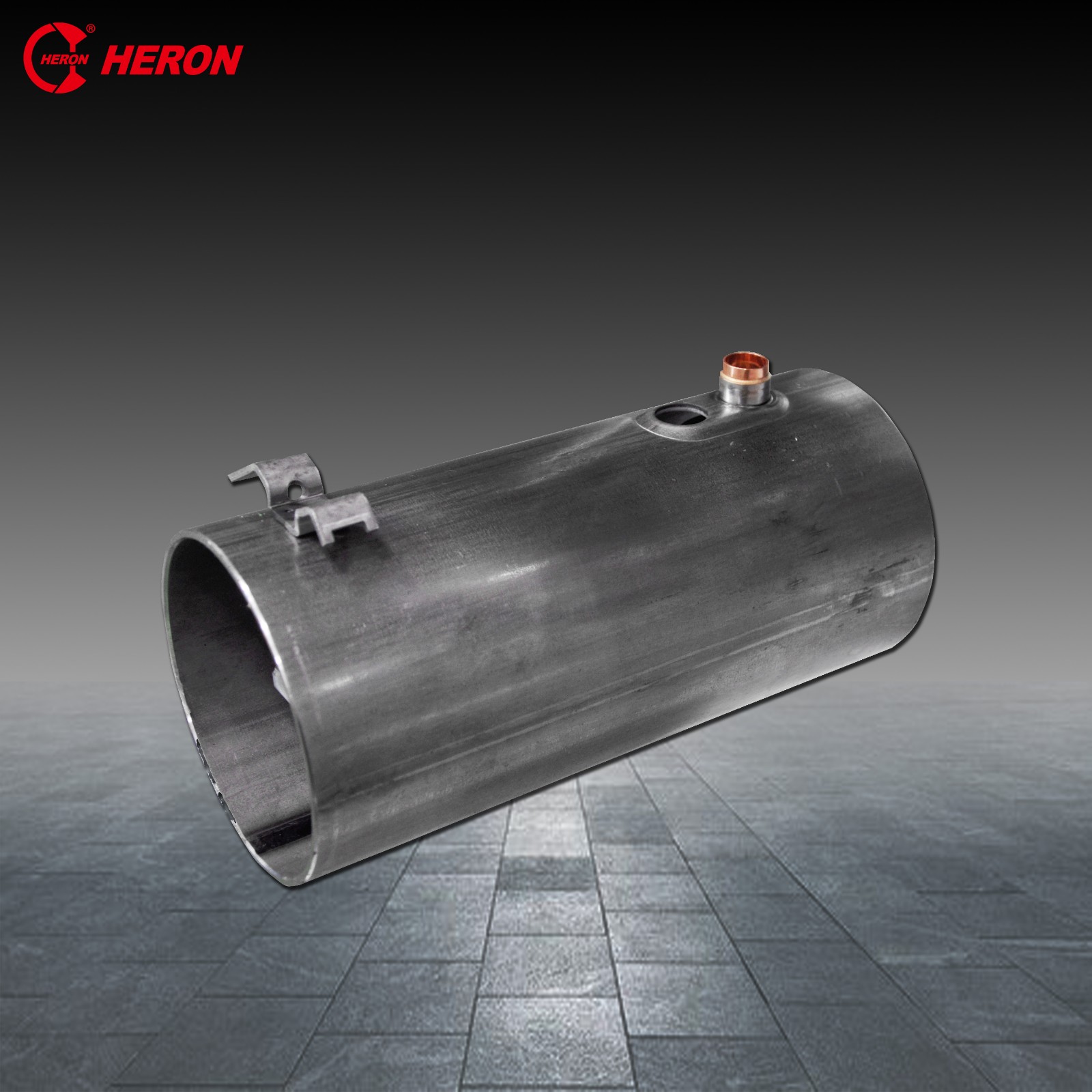

- Bracket WeldingSuck Pipe WeldingCompressor Industry
