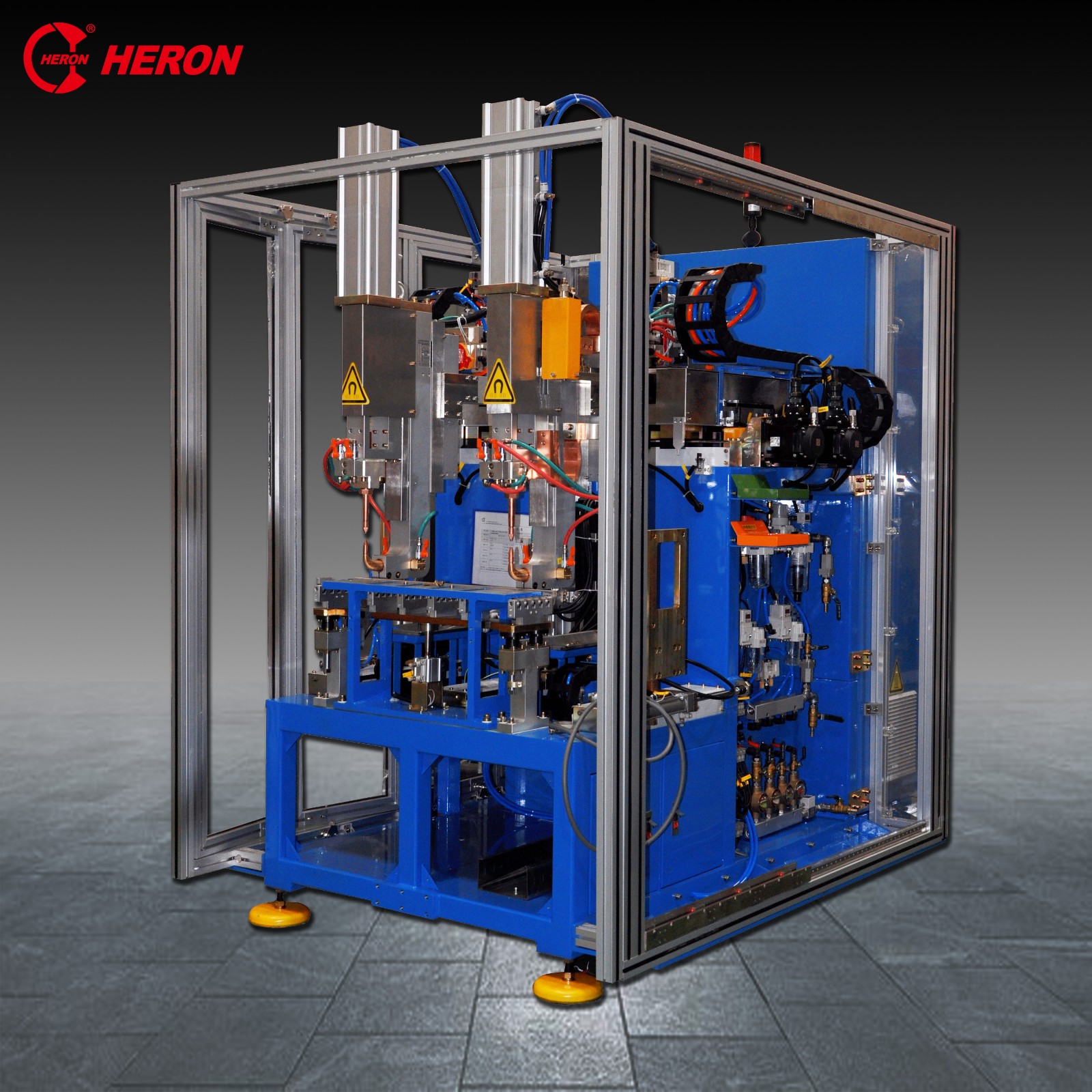

Automated Double-Head Spot Welder for Auto Door Columns
This automated double-head spot welder is designed for welding car door B/C columns. It features precision welding heads and an advanced control system for accurate and repeatable welds.
Technical Specifications
Product Overview
Automated Precision Welding
This automated double-head welding machine is specifically engineered for the auto parts manufacturing industry, focusing on the assembly of car door B/C columns. Built with a robust steel frame and precision welding heads equipped with copper electrodes, it ensures consistent, high-quality results. The system is designed for high-volume production environments, utilizing adjustable parameters and precise alignment mechanisms to maintain strict dimensional accuracy.
- Model Number
- DB-110-17105
Technical Performance
Performance Metrics
110 KVA
Rated Capacity
120 A
Max Primary Current
17 KA
Max Short Cut Current
4.6 KN
Max Working Pressure
- Power Supply
- 380V / 3Φ / 50Hz
Physical Dimensions
- Machine Dimensions (LxWxH)
- 2137mm x 1444mm x 2034mm
Features
Key Features
- Automated double-head design
- Robust steel construction
- Precision welding heads with copper electrodes
- Advanced control system for repeatable welds
- Integrated safety features
- Adjustable welding parameters
