Technical Specifications
Overview
Professional Auto-Darkening Protection

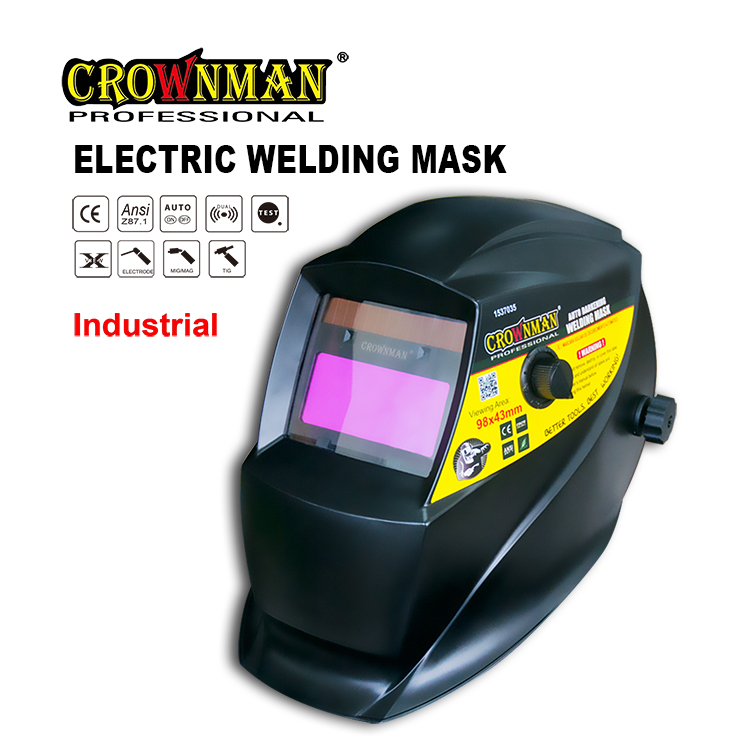

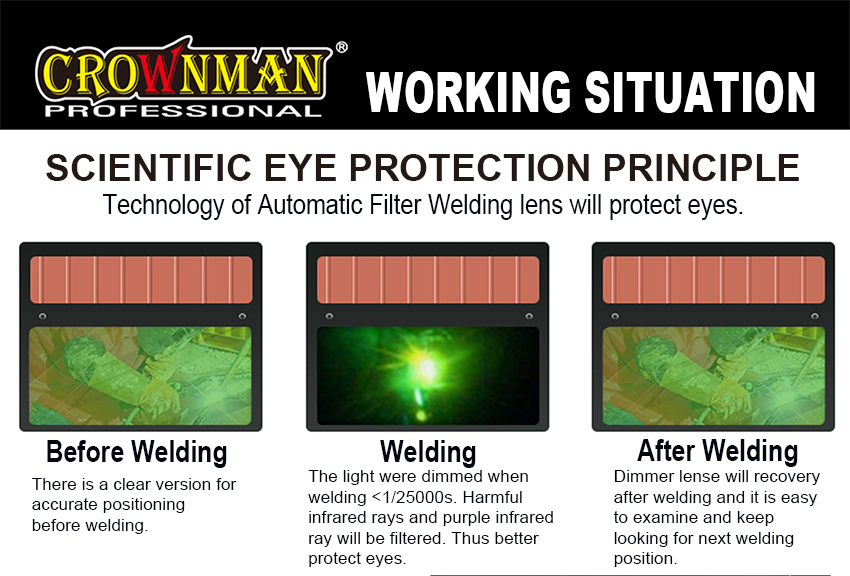

This high-performance welding helmet is constructed from new PP resin, offering a lightweight yet durable solution for industrial environments. Featuring a dual-layer liquid crystal display and a large viewing area, it provides consistent shading and superior eye protection. With rapid switching speeds and integrated solar charging, it is designed for long-term reliability across automotive, construction, and metal fabrication sectors.
Optical Performance
Viewing Area
98 mm
Width
43 mm
Height
- Darkening Response Time
- 1/5000s to 1/25000s
- Variable Shade Range
- 4/9-13 DB

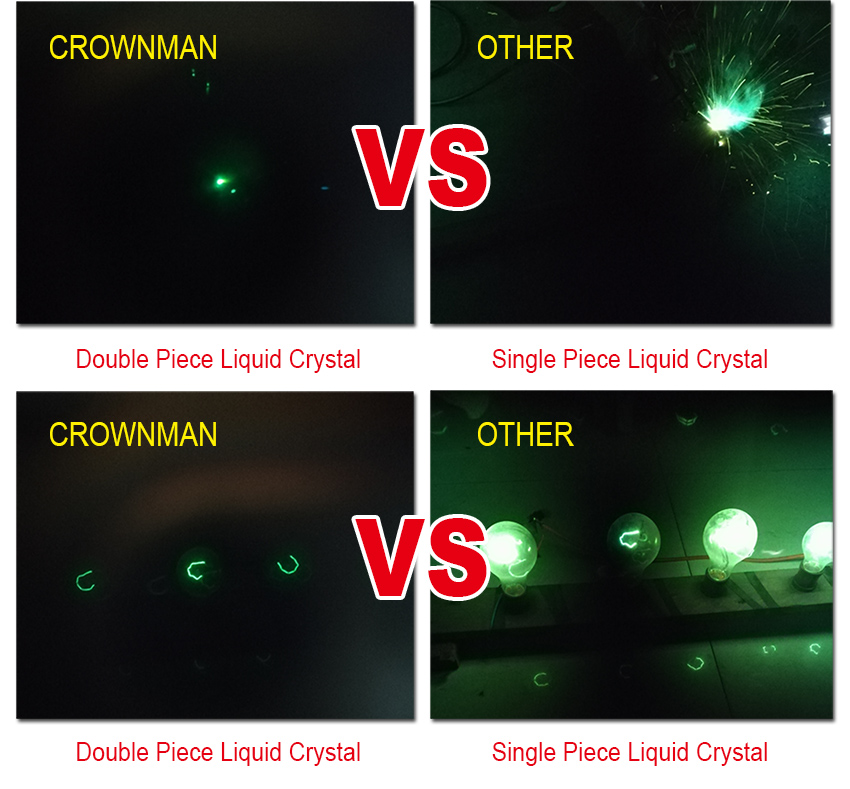

- Lens Configuration
- Double-piece Liquid Crystal Dimming Lens

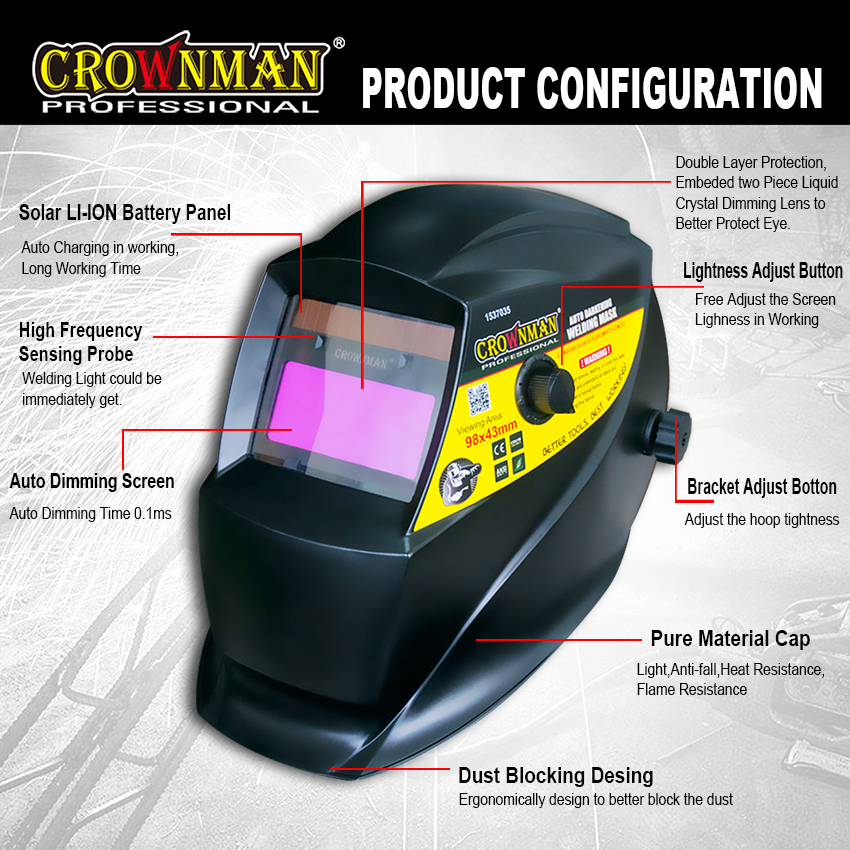

Technical Features
Power Source
- Solar Panel Auto-Charging
- Replaceable Li-ion Battery
- Low Power Indicator Light
- Up to 5000 hours working time

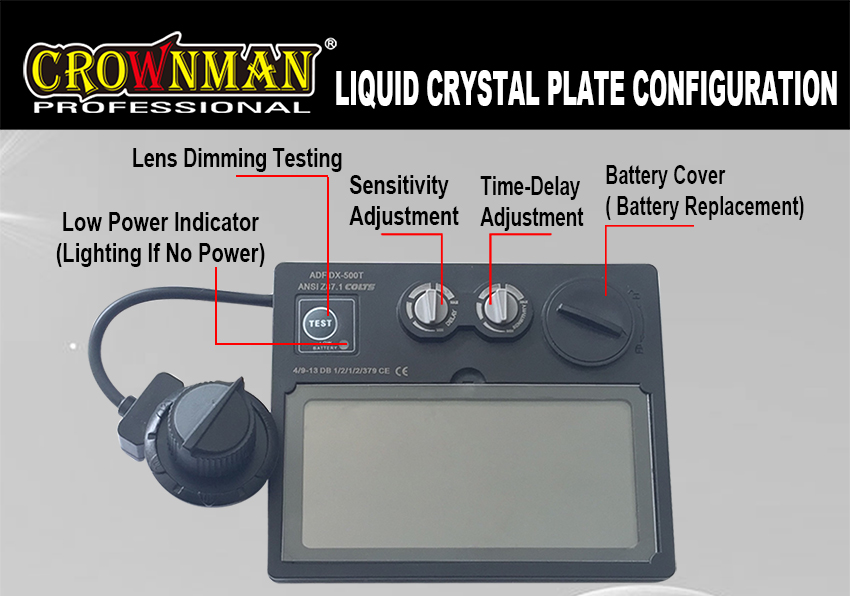

- Adjustable Controls
- Sensitivity AdjustmentTime-Delay AdjustmentLightness AdjustmentLens Dimming Testing
Construction & Comfort

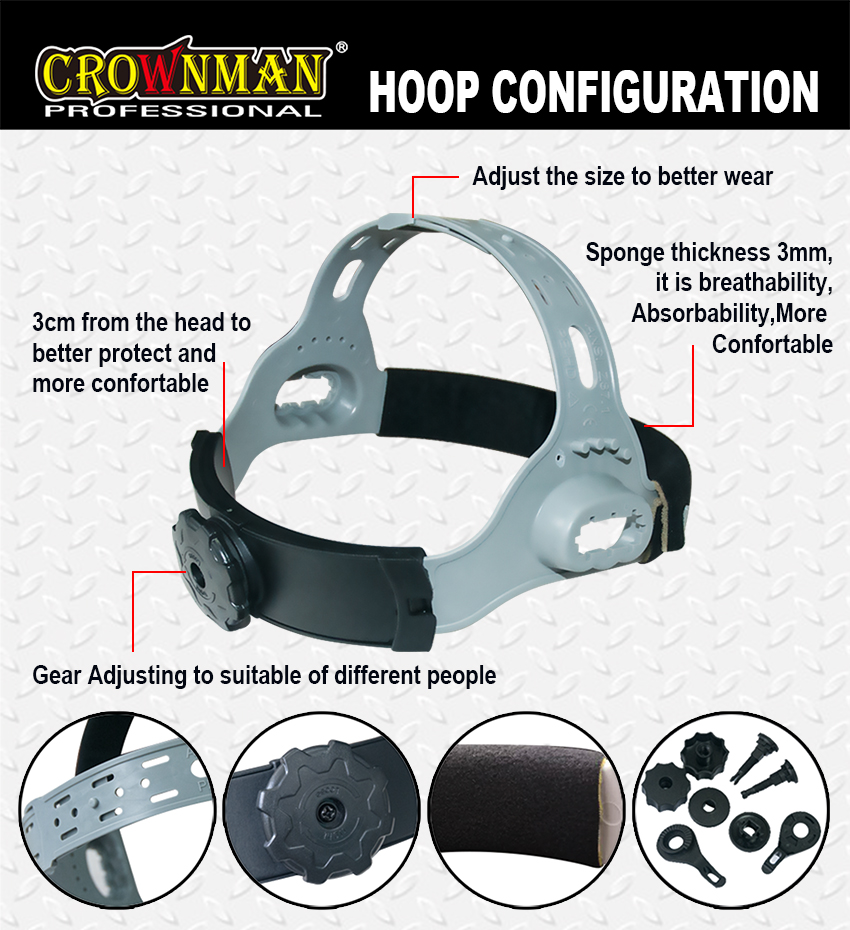

Headgear Configuration
- 3mm Breathable/Absorbent Sponge
- Gear-driven size adjustment
- 3cm head clearance for comfort
- Adjustable hoop tightness
- Shell Material Properties
- Heat ResistantFlame ResistanceAnti-fallShockproofLightweight PP Resin
Applications & Standards
Compatible Processes
ElectrodeMIG/MAGTIGOxygen WeldingGas WeldingCutting
Recommended Industries
- Automotive & Transportation
- Construction & Mining
- Food & Beverage Manufacturing
- Metal Production & Fabrication
- Military Maintenance & MRO
- Oil & Gas
- Safety Standards
- CEANSI Z87.1ANSI Z17.1 COLTS
