Technical Specifications
Overview
Industrial Aluminum Lever Block
This robust lever block hoist is engineered for efficient lifting and positioning of heavy loads in demanding industrial environments. Constructed from high-quality aluminum, it offers an optimal balance between structural strength and portability. Designed for versatility, this hoist is suitable for a wide range of machinery and industrial applications requiring precise load control.
Performance Metrics
Capacity Options
0.25 t
Small Model Capacity
0.5 t
Large Model Capacity
- Standard Lifting Height
- 1.5 m
Technical Specifications
Load Test Capacity
| Model | Load Test |
|---|---|
| HSH-0.25A609 | 3 KN |
| HSH-0.5A609 | 6 KN |
Required Pull Force
| Model | Force |
|---|---|
| HSH-0.25A609 | 162 N (16.5 kg) |
| HSH-0.5A609 | 240 N (24.5 kg) |
Chain Configuration
- HSH-0.25A609: 4.0 x 1 mm
- HSH-0.5A609: 5.0 x 1 mm
Physical Dimensions

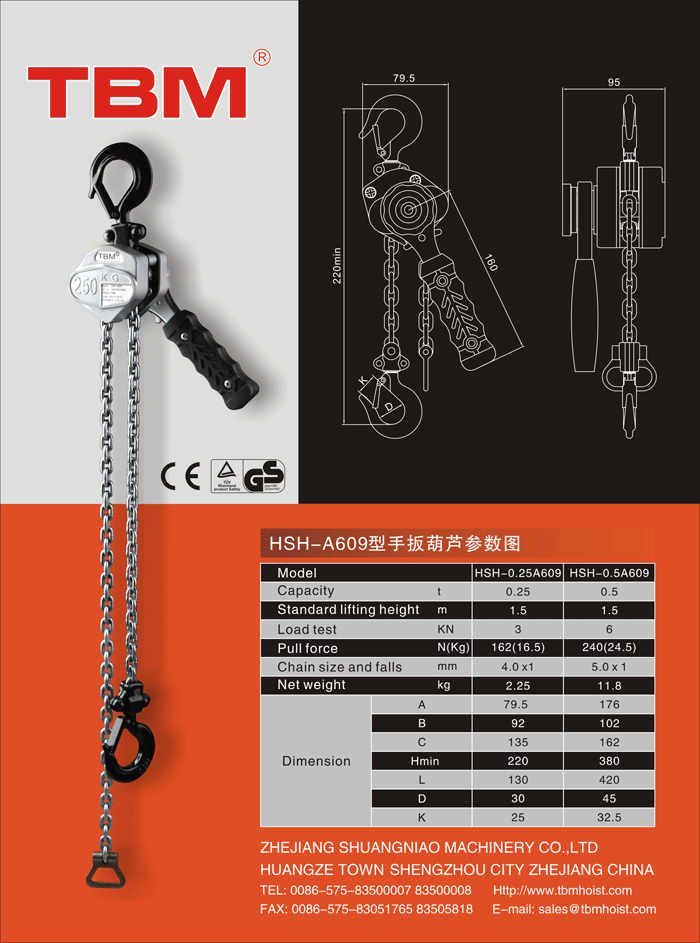

Detailed Dimensions
| Dimension | HSH-0.25A609 (mm) | HSH-0.5A609 (mm) |
|---|---|---|
| A | 79.5 | 176 |
| B | 92 | 102 |
| C | 135 | 162 |
| Hmin | 220 | 380 |
| L | 130 | 420 |
| D | 30 | 45 |
| K | 25 | 32.5 |
Net Weight
- HSH-0.25A609: 2.25 kg
- HSH-0.5A609: 11.8 kg
