Aluminum Foil Container Production Line

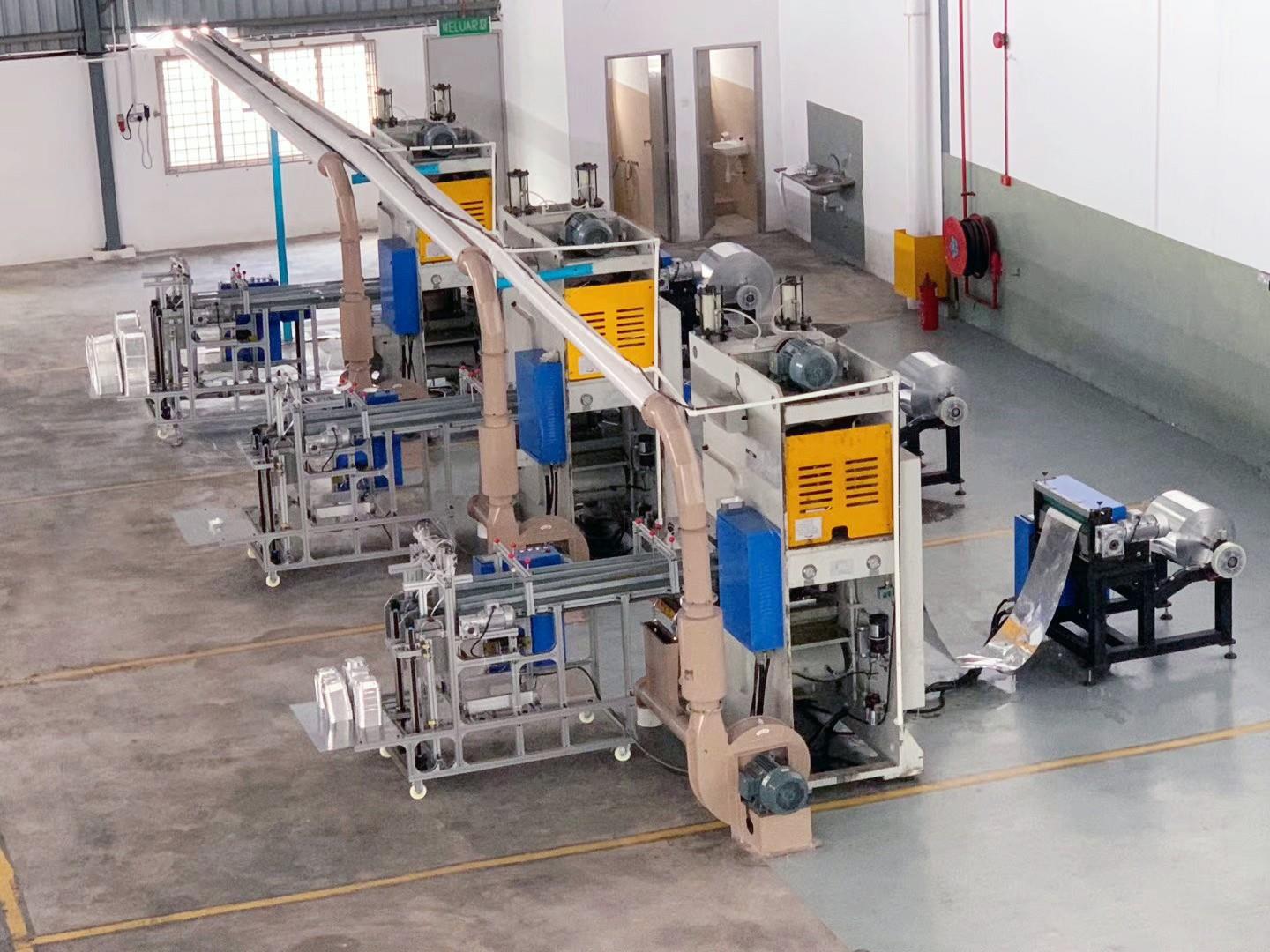

This production line is designed for the efficient manufacturing of aluminum foil containers. It integrates uncoiling, pressing, stacking, and scrap collecting machinery.
Technical Specifications
Overview
High-Efficiency Aluminum Foil Container Production Line
This automated production line is engineered for the high-volume manufacturing of aluminum foil containers, integrating uncoiling, pressing, and stacking processes into a streamlined workflow. The system features precision control, robust steel construction, and versatile tooling options, making it ideal for creating various container shapes and sizes. Designed for reliability and consistency, this equipment includes advanced safety mechanisms and automated stacking to maximize productivity while minimizing material waste.
Environmental Requirements
Operating Conditions
80 %
Humidity Limit
50 Hz
Frequency Min
60 Hz
Frequency Max
- Power Supply
- AC 3 Phase5 Wires380V Three Phase220V Single Phase
Uncoiler Machine
Uncoiler Specifications
| Parameter | Value |
|---|---|
| Max Roll Diameter | 1000 mm |
| Max Material Width | 550 mm |
| Feeding Speed | 10-50 m/min |
| Feeding Accuracy | ±0.6 mm |
| Net Weight | 1000 kg |
Press Machine
Press Performance Metrics
110 times/min
Max Stroke Speed
200 mm
Stroke Height
440 mm
Max Die Height
Press Machine Details
- Steel plate welding body construction
- Dry friction clutch system
- Overload protection included
- Work plate dimensions: 660 x 1000 mm
- Net weight: 5000 kg
Automatic Stacker
Stacker Configuration Options
| Feature | Standard Stacker | 800 Stacker (3-Way) |
|---|---|---|
| Collector Belt Width | 550 mm | 800 mm |
| Max Container Height | 420 mm | 500 mm |
| Installed Power | 3 kW | 3 kW |
| Net Weight | 1000 kg | 800 kg |
- Stacker Key Features
- Touch screen controlStep motor liftingLinear guide systemPhotocell countingEmergency auto-stopElectric brake system
