Aluminum Copper Cable Lugs - German Standard
These aluminum copper cable lugs conform to German industrial standards. They provide a secure and reliable connection for electrical cables in diverse applications.
Technical Specifications
Product Overview

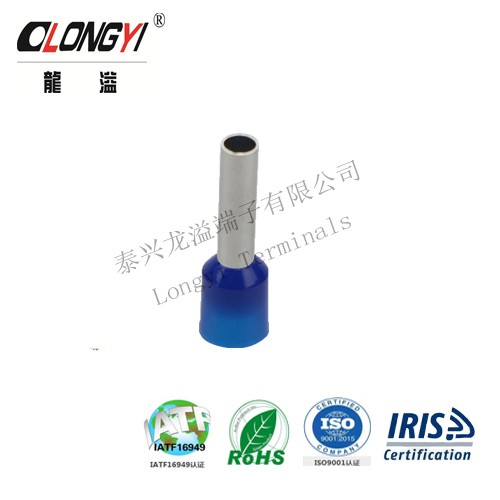

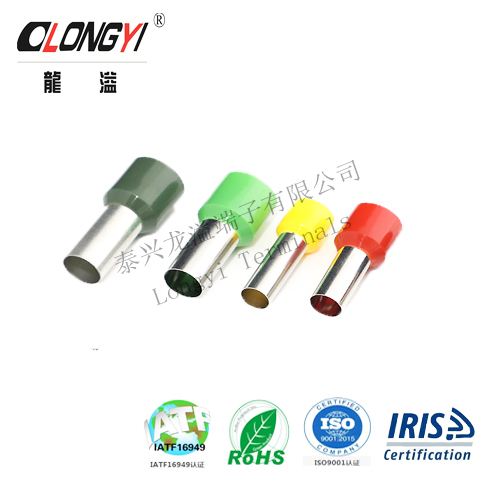

German Standard Cord-End Terminals
These German standard cord-end terminals are engineered for the reliable connection of copper conductors in power cables and electronic equipment. Manufactured using high-purity T2 copper, they feature a tin-plated surface for enhanced durability and corrosion resistance. Designed to perform in demanding environments, these terminals support a wide working temperature range of -55°C to 150°C.
Technical Specifications
Working Temperature
-55 °C
Min Temperature
150 °C
Max Temperature
- Material
- 99.99% Pure T2 Copper
- Surface Treatment
- Tin-plated
- Certifications
- CEULJISDINAWG
Dimensions and Sizing
Dimensions Table
| Wire Range (mm²) | D1 (mm) | D2 (mm) | S1 (mm) |
|---|---|---|---|
| 0.14 | 0.7 | 1.9 | 0.15 |
| 0.5 | 1 | 2.6 | 0.15 |
| 1 | 1.4 | 3 | 0.15 |
| 2.5 | 2.2 | 4.2 | 0.15 |
| 6 | 3.5 | 6.3 | 0.2 |
| 16 | 5.8 | 8.8 | 0.2 |
| 50 | 10.3 | 15 | 0.3 |
| 150 | 19.5 | 23 | 0.5 |
