Technical Specifications
Product Overview
Professional Industrial Cooling Solution

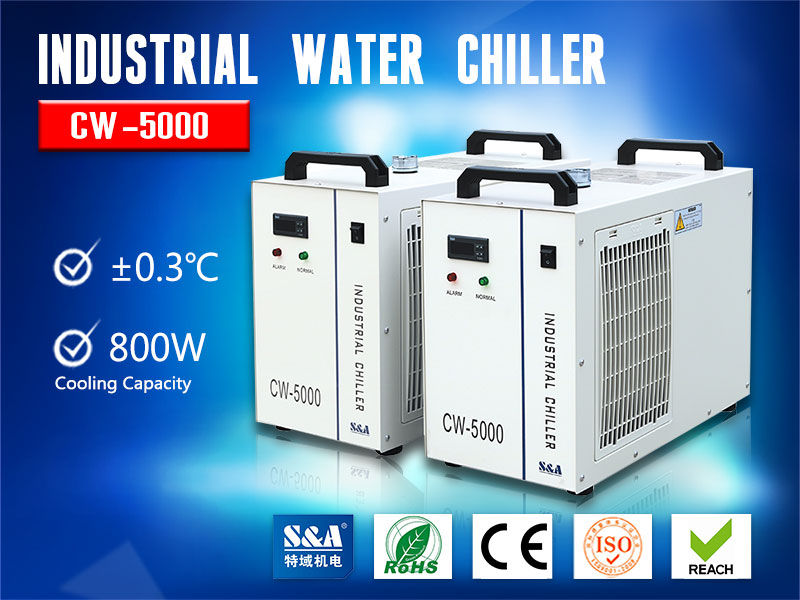

The CW-5000 is a high-performance air-cooled water chiller designed for efficient thermal management of CO2 lasers, UV LED systems, and spindles. Featuring an 800W cooling capacity and ±0.3℃ temperature stability, it ensures prolonged equipment lifespan and stable operational performance. Its intelligent dual-mode temperature control automatically adjusts to ambient conditions to prevent condensation.
Technical Specifications
Performance Metrics
800 W
Cooling Capacity
0.3 ℃
Temperature Accuracy
6 L
Tank Capacity
Flow and Lift
| Metric | Range |
|---|---|
| Max Flow | 10 - 16 L/min |
| Max Lift | 10 - 25 m |
Electrical Requirements
- Voltage: 110V-220V
- Frequency: 50/60Hz
- Pump Power: 0.03kW - 0.1kW
Dimensions and Weight
- Dimensions: 58 x 29 x 47 cm
- Net Weight: 24 kg
- Gross Weight: 27 kg
Features and Compliance
Control Modes
Intelligent ModeConstant Temperature Mode
- Certifications
- CERoHSREACH
- Warranty
- 2 Years
