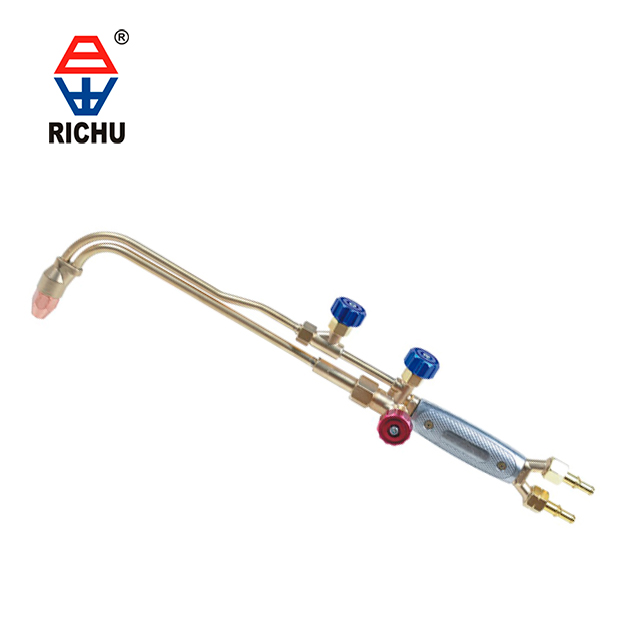

Acetylene Gas Cutting Torch
This acetylene gas cutting torch is engineered for cutting metals using a mixture of acetylene and oxygen. Featuring a brass body and stainless steel tubes, it offers adjustable valves for precise gas flow, ensuring optimal cutting in heavy-duty industrial applications.
Technical Specifications
Product Overview
Industrial Acetylene Cutting Torch
This robust Russia-style acetylene gas cutting torch is engineered for precision and durability in heavy-duty industrial environments. Featuring a brass body and stainless steel tubing, it offers superior resistance to heat and corrosion while ensuring optimal gas control. Designed for versatility, it supports cutting steel sheets up to 200mm thick and is ideal for shipbuilding, construction, and automotive repair applications.
Technical Capabilities
Nozzle Performance Specifications
| Nozzle Type | Thickness (mm) | O2 Pressure (MPa) | C2H2 Consumption (m3/h) |
|---|---|---|---|
| No.1A | 15 | 0.1 | 0.12 |
| No.2A | 15-30 | 0.1 | 0.28 |
| No.3A | 30-50 | 0.1 | 0.58 |
| No.4A | 50-100 | 0.1 | 1.05 |
| No.5A | 100-200 | 0.1 | 1.21 |
- Maximum Cutting Thickness
- 200 mm
Key Features
Primary Applications
- Shipbuilding
- Industrial Construction
- Automotive Repair
- Metal Fabrication
- Construction Materials
- Brass BodyStainless Steel TubesCopper Nozzles
