Technical Specifications
Product Overview

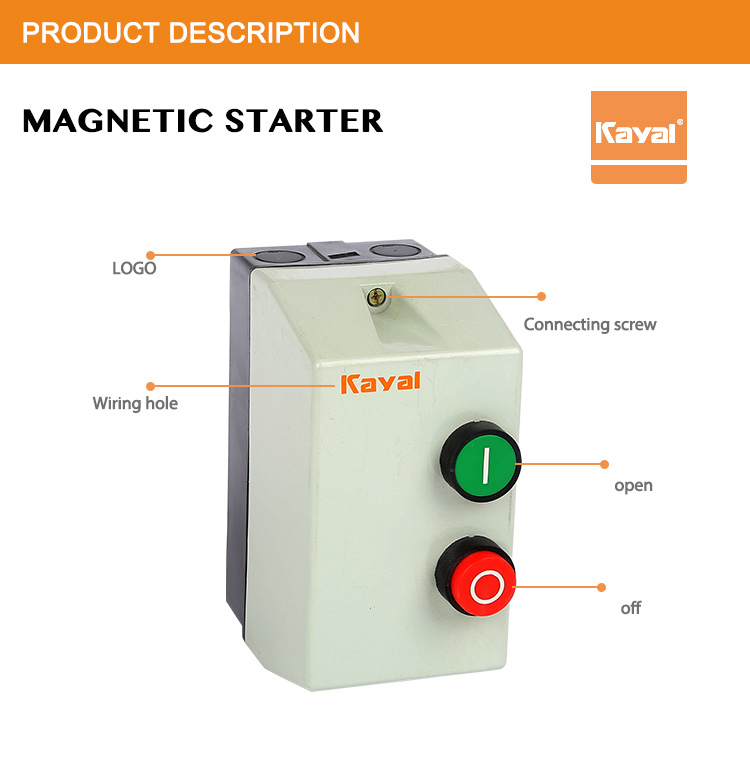

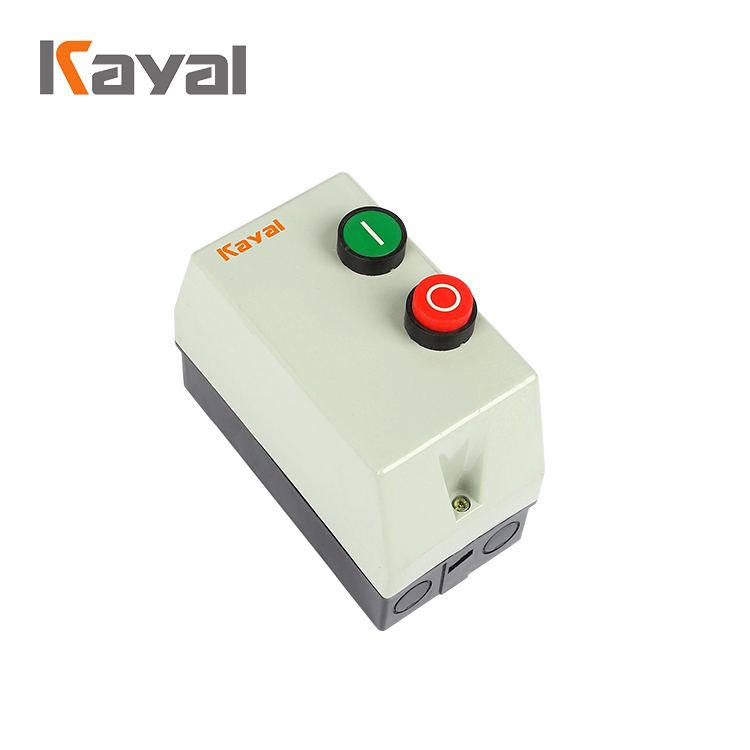

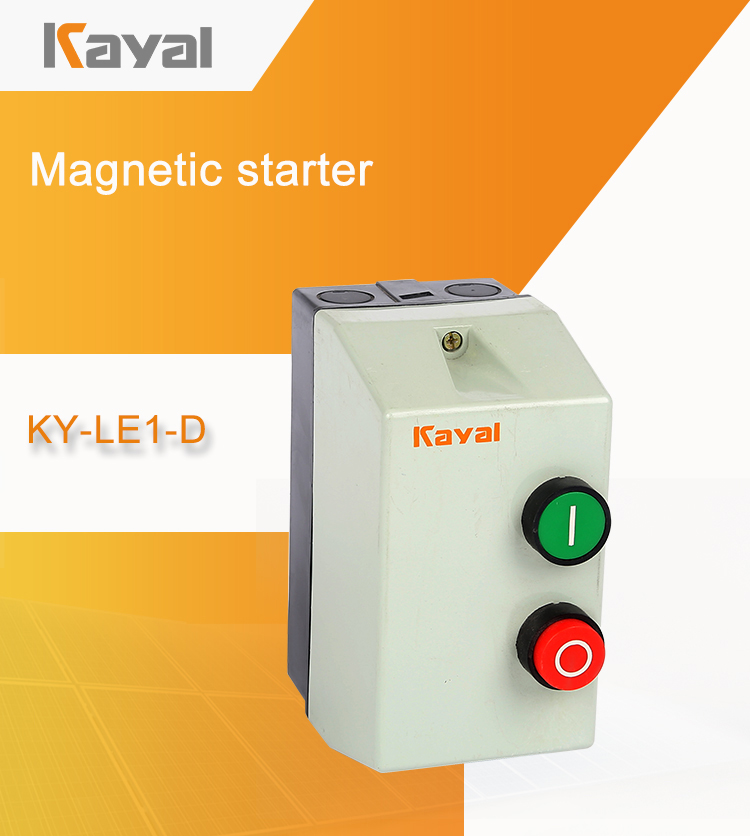

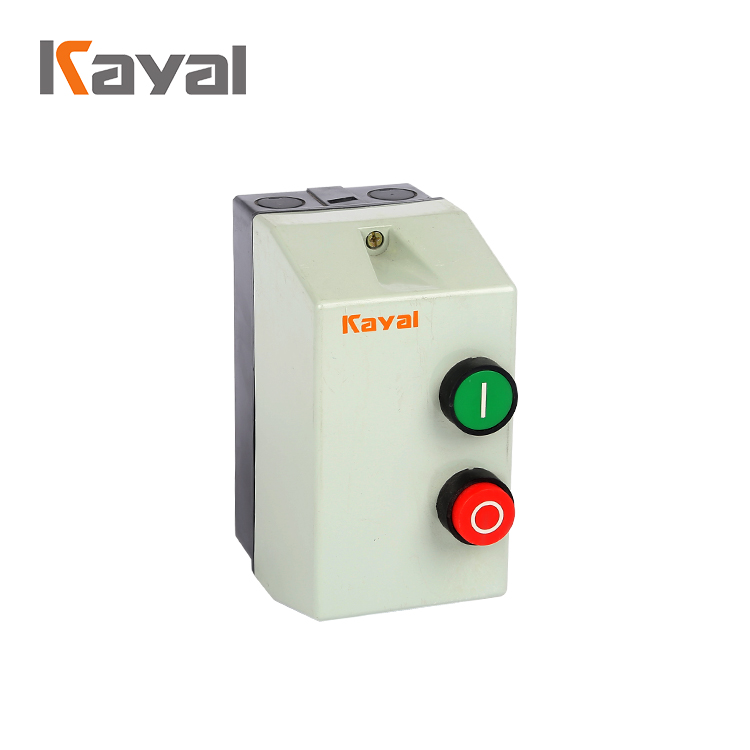

Magnetic Motor Starter
This magnetic starter is an electromechanical device designed for the safe and reliable control of AC motors. It is primarily applied to circuits with frequencies of 50 or 60Hz and voltages up to 550V, facilitating remote switching and frequent motor starts. The unit features a compact, lightweight design with low power consumption and high efficiency, ensuring safe and reliable performance in industrial environments.
Technical Specifications
Enclosure Type
IP42IP65
- Operating Frequency
- 50Hz60Hz
- Maximum Voltage
- 550 V
Performance Data
Key Performance Features
- Small volume
- Light weight
- Low power consumption
- High efficiency
- Safe and reliable performance
AC3 Duty Power Ratings
| Voltage (V) | Max Power (kW) |
|---|---|
| 220-230 | 1.1 |
| 380-400 | 2.2 |
| 415 | 22 |
| 440 | 22 |
Application
Suitable Environments
- Industrial automatic control rooms
- Elevator control rooms
- Computer centers
- Telecommunications rooms
- Hospital operating rooms
- Monitoring rooms
