AC Metal-Enclosed Ring Network Switchgear
This AC metal-enclosed ring network switchgear is compact, lightweight, and simple to operate with low maintenance. It is suitable for receiving and distributing electrical energy in AC 50Hz, 12kV systems.
Technical Specifications
Product Overview
High-Efficiency Ring Network Switchgear
The HXGN-12(SF6) unit type AC metal-enclosed ring main unit is a modern, high-pressure electrical solution designed for robust power distribution. Engineered for both urban and agricultural grid transformations, it offers reliable performance, a compact footprint, and long-term durability. The design features advanced interlock systems and protective measures, ensuring safe, low-maintenance operation across diverse environmental conditions.
Technical Specifications
- Certified Standards
- IEC298GB3906
- Protection Rating
- IP3X
- Rated Frequency
- 50 Hz
- Rated Voltage
- 12 kV
Environmental Conditions
Relative Humidity
- Daily average ≤ 95%
- Secondary average ≤ 90%
- Temperature Range
- -25°C to +40°C
- Maximum Altitude
- 2000 m

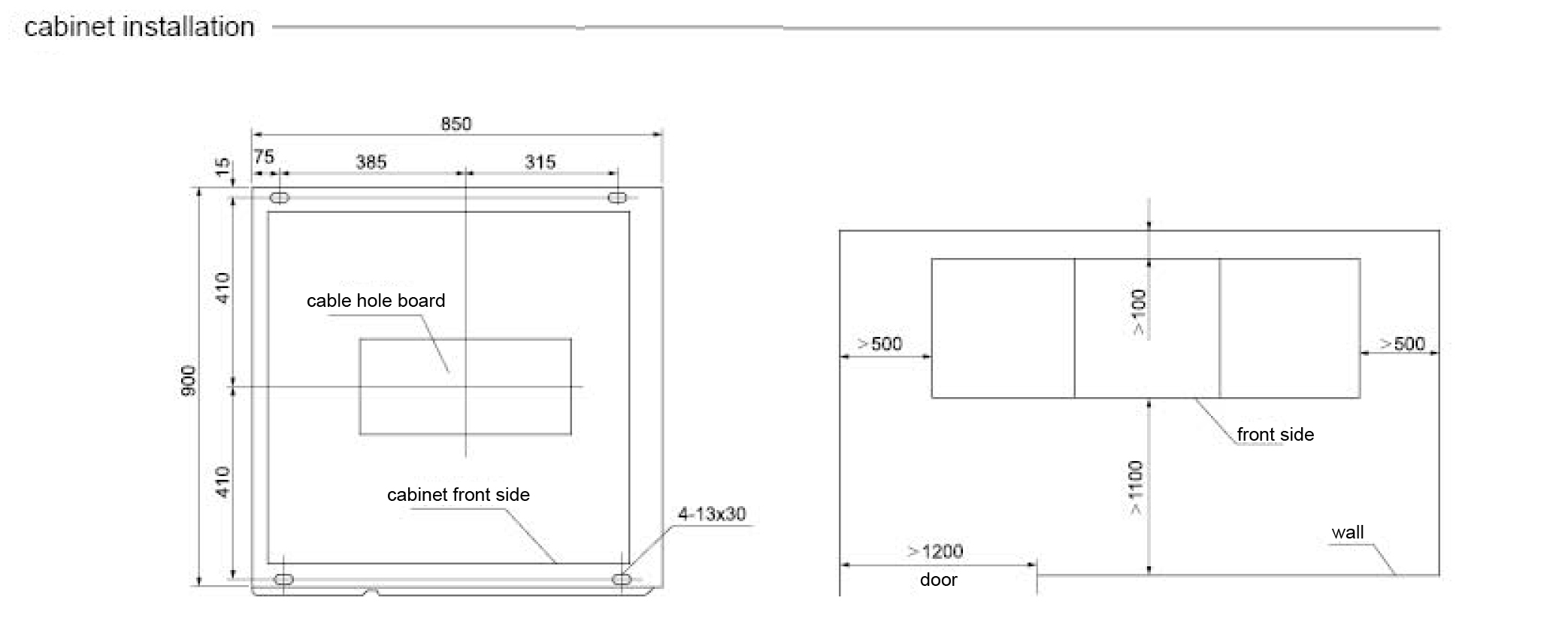

Physical Dimensions
Unit Dimensions (H x W x D)
2,000 mm
Height
850 mm
Width
900 mm
Depth
