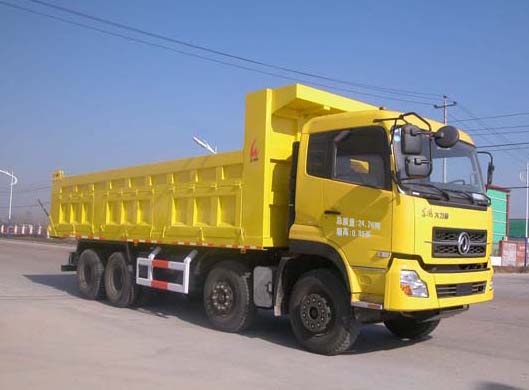

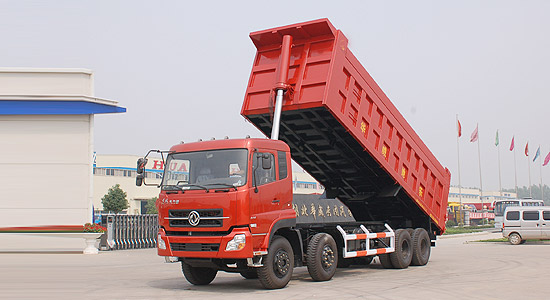

8x4 Tipper Dump Truck
This 8x4 tipper dump truck is designed for transporting and unloading bulk materials. It features a robust chassis and a hydraulically operated dump bed for efficient unloading.
Technical Specifications
Overview
Heavy-Duty 8x4 Tipper Dump Truck
This heavy-duty 8x4 dump truck is engineered for demanding transport and unloading tasks in construction, mining, and bulk material handling. Featuring a robust chassis and a high-capacity cargo bed, it provides excellent stability and traction on challenging terrains. Designed for efficiency, the hydraulic system ensures reliable unloading, while the powerful engine options deliver the performance required for heavy-duty operations.
Performance
Emission Standard
Euro III
- Maximum Speed
- 80 km/h
Dimensions & Capacity
Mass Metrics
24,260 kg
Total Mass
12,130 kg
Curb Mass
12,000 kg
Rated Mass
- Overall Dimensions (L×W×H)
- 9550/9650/9800 × 2500 × 3450/3760 mm
- Cargo Body Dimensions
- 6600-7600 × 2300 × 800-850 mm
Engine Specifications
Engine Configurations
| Engine Model | Displacement (ml) | Power (kw) |
|---|---|---|
| dCi340-30 | 11,120 | 250 |
| dCi290-30 | 11,120 | 213 |
| ISLe340 30 | 8,900 | 250 |
| ISLe315 30 | 8,900 | 232 |
| ISLe290 30 | 8,900 | 213 |
| YC6M340-30 | 9,839 | 250 |
| YC6M290-30 | 9,839 | 215 |
Chassis & Drivetrain
- Axle Configuration
- 8x4
- Tyre Size Options
- 11.00-2011.00R2012.00-2012.00R20
- Approach/Departure Angle
- 25/18° or 25/17°
