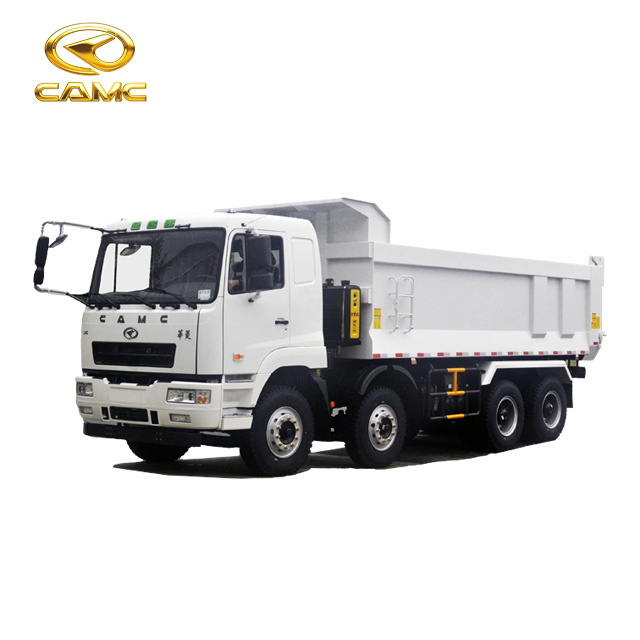

8x4 Heavy Duty Dump Truck
This 8x4 heavy-duty dump truck is designed for transporting bulk materials in demanding environments. The truck features a robust chassis and a high-capacity dump body for efficient loading and unloading.
Technical Specifications
Overview
Heavy-Duty 8x4 Dump Truck
This 8x4 heavy-duty dump truck is engineered for demanding bulk material transport in construction and mining environments. Featuring a robust chassis and a high-capacity 28 cubic meter dump body, it is built for exceptional durability and performance. The vehicle includes a comfortable, ergonomically designed cabin to enhance driver productivity and safety during long operations.
Key Metrics
Performance Highlights
420 hp
Horsepower
1,930 N.m
Max Torque
31,000 kg
Gross Vehicle Weight
28 m³
Dump Capacity
Vehicle Dimensions
Dimensions
| Parameter | Value |
|---|---|
| Overall Dimension | 10500 x 2495 x 3520 mm |
| Wheelbase | 1850 + 4605 + 1350 mm |
| Kerb Weight | 9880 kg |
Engine & Powertrain
Engine Specifications
- Displacement: 11.81 L
- Cylinders: 6
- Max Power: 309 kW
- Rated Speed: 1900 rpm
- Emission Standard: Euro II
Transmission & Steering
- Transmission Configuration
- Mechanical & manual with servo, synchronizer, and creep. 9 forward ratios (15.49 to 1.00) and 1 reverse ratio (14.19).
Dump Body
Dump Body Details
- Dimensions: 8000 x 2350 x 1500 mm
- Bottom Thickness: 8 mm
- Side Thickness: 6 mm
- Lifting Type: Front lifting
Cab & Comfort
- Cabin Amenities
- Air ConditioningMP3 PlayerSingle BerthPower WindowsAdjustable Steering WheelHydraulically Damped Seat
Chassis & Suspension
Axle Rated Capacity
7.5 T
Front Axle
16 T
Rear Axle
