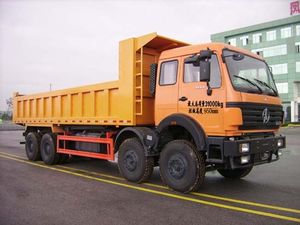

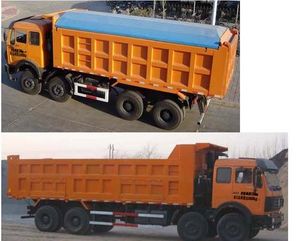

8x4 Heavy-Duty Dump Truck
This 8x4 dump truck is designed for heavy-duty transport and unloading of materials. It features a robust chassis and a tipping mechanism for efficient unloading in demanding construction and mining environments.
Technical Specifications
Overview
Heavy-Duty 8x4 Dump Truck
This heavy-duty 8x4 dump truck is engineered for demanding construction and mining environments, offering a robust chassis and high load-bearing capacity. Equipped with a powerful diesel engine and a reinforced cargo bed, it ensures efficient material transport and rapid unloading. Designed for stability and performance, this vehicle is an ideal solution for hauling aggregates, soil, and other bulk materials in challenging conditions.
Performance & Engine
Engine Specifications
| Engine Model | Displacement (ml) | Power (kW) |
|---|---|---|
| WP10.300N | 9,726 | 221 |
| WP10.270N | 9,726 | 199 |
| WP10.310E32 | 9,726 | 228 |
| WP10.270 | 9,726 | 199 |
| WP10.290 | 9,726 | 213 |
Emission Standard
Euro III
Maximum Speed
80 km/h
Max Speed
Dimensions & Capacity
Mass Specifications
- Total Mass: 31000 kg
- Rated Mass: 15725/15375 kg
- Curb Mass: 15145/15495 kg
- Overall Dimensions (L×W×H)
- 11180/11380 x 2500 x 3484 mm
- Cargo Body Dimensions
- 8500 x 2300 x 950 mm
Chassis & Mobility
- Wheel Configuration
- 8x4
- Tyre Options
- 12.00-2012.00R2011.00-2011.00R20
- Approach/Departure Angles
- 26° / 37°
- Axle Load
- 6500/6500/18000 kg
