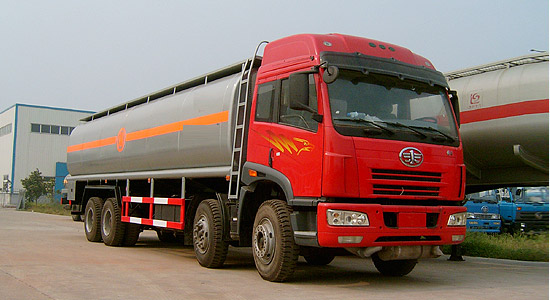

8x4 Fuel Tanker Truck, 29cbm Capacity
This 8x4 fuel tanker truck has a 29cbm tanker volume and external dimensions of 11995×2500×3500 (mm). It is powered by a 223hp to 256hp engine.
Technical Specifications
Overview
Heavy-Duty Fuel Transportation
This 8x4 fuel tanker truck is engineered for the reliable and safe transport of large volumes of liquid fuel. With a substantial 29cbm capacity and a robust 8x4 drive configuration, it offers enhanced stability and traction for demanding logistical operations. Built with high-strength materials and advanced safety systems, this vehicle is designed to meet the rigorous requirements of the petroleum and chemical transport industries.
Key Metrics
Performance Metrics
29 cbm
Tank Capacity
31,000 kg
Gross Vehicle Weight
85 km/h
Max Speed
Chassis Specifications
Dimensions & Weights
| Parameter | Value |
|---|---|
| Overall Size | 11995 x 2500 x 3500 mm |
| Rated Load Weight | 19535 - 19600 kg |
| Curb Weight | 11270 kg |
| Approach/Departure Angle | 16° / 10° |
Chassis Configuration
- Drive Configuration: 8x4
- Number of Axles: 4
- Wheelbase: 1900+4500+1350 mm
- Tire Quantity: 10
Engine Options
Available Engine Configurations
| Model | Displacement (ml) | Power (kw) |
|---|---|---|
| CA6DE3-22E3 | 6,060 | 171 |
| CA6DE3-24E3 | 7,146 | 188 |
| CA6DF3-22E3 | 6,740 | 171 |
| CA6DF3-24E3 | 6,740 | 188 |
| CA6DF3-22E3U | 6,744 | 171 |
| CA6DF3-24E3U | 6,744 | 188 |
| CA6DF3-24E3F | 7,120 | 180 |
| CA6DF3-22E3F | 7,120 | 165 |
| CA6DE3-24E3F | 6,618 | 179 |
| CA6DE3-22E3F | 6,618 | 164 |
| BF6M1013-24E3 | 7,146 | 188 |
Technical Features
- Safety & Operational Features
- Anti-lock Braking System (ABS)Rollover Protection SystemEmergency Shut-off ValvesGrounding MechanismsHigh-Strength Steel Body
