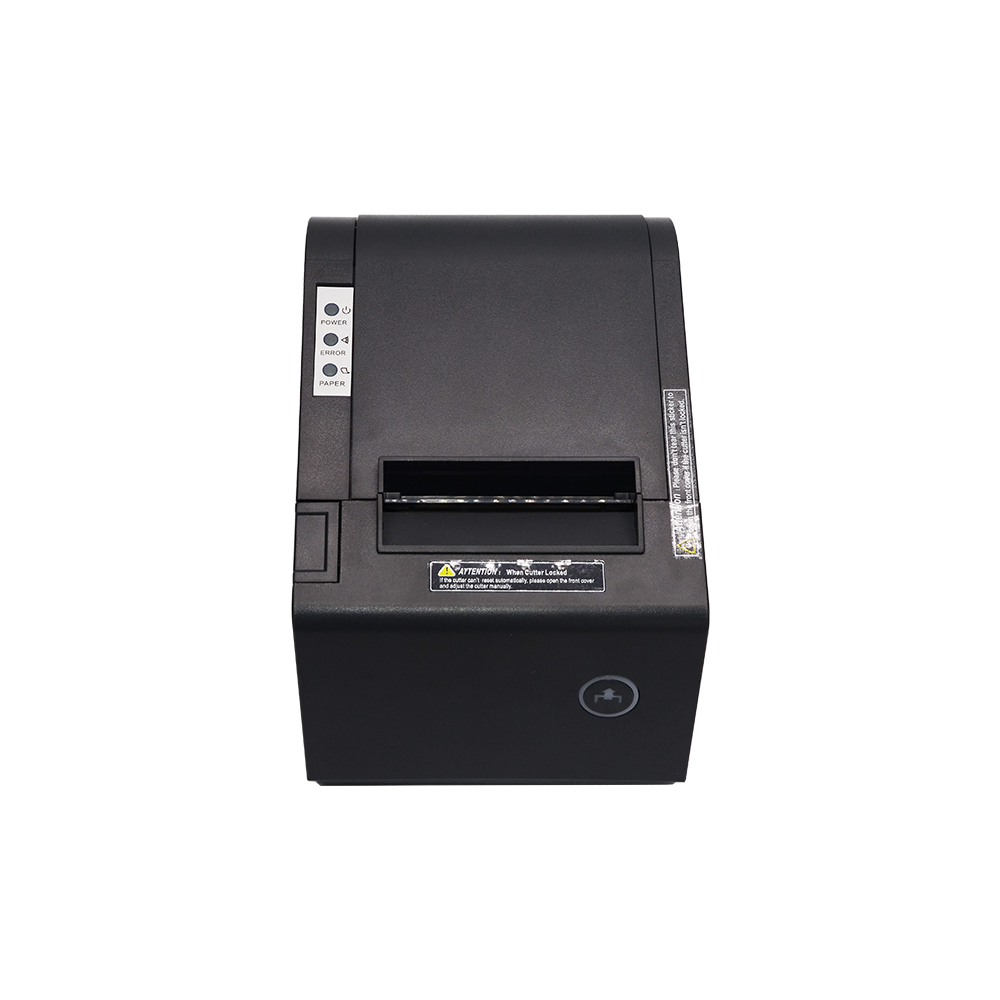

80mm Thermal Receipt Printer with Multiple Interfaces
This 80mm thermal receipt printer is compatible with EPSON ESC/POS and STAR Line mode command sets. It supports a 250mm/sec print speed and offers multiple interfaces including Serial, USB, and Ethernet.
Technical Specifications
Product Overview
High-Speed Thermal Receipt Printing
This 80mm thermal receipt printer is engineered for high-speed, reliable performance in demanding retail and hospitality environments. It features an easy paper loading mechanism, a durable cutter, and versatile interface options for seamless POS system integration. Designed for efficiency, it supports various character sets and configurable settings to meet diverse business requirements.
Technical Specifications
Baud Rate Options
- 9,600
- 19,200
- 38,400
- 115,200
- Print Width
- 80 mm
- Configurable Characters per Line
- 4248
Configuration & Settings

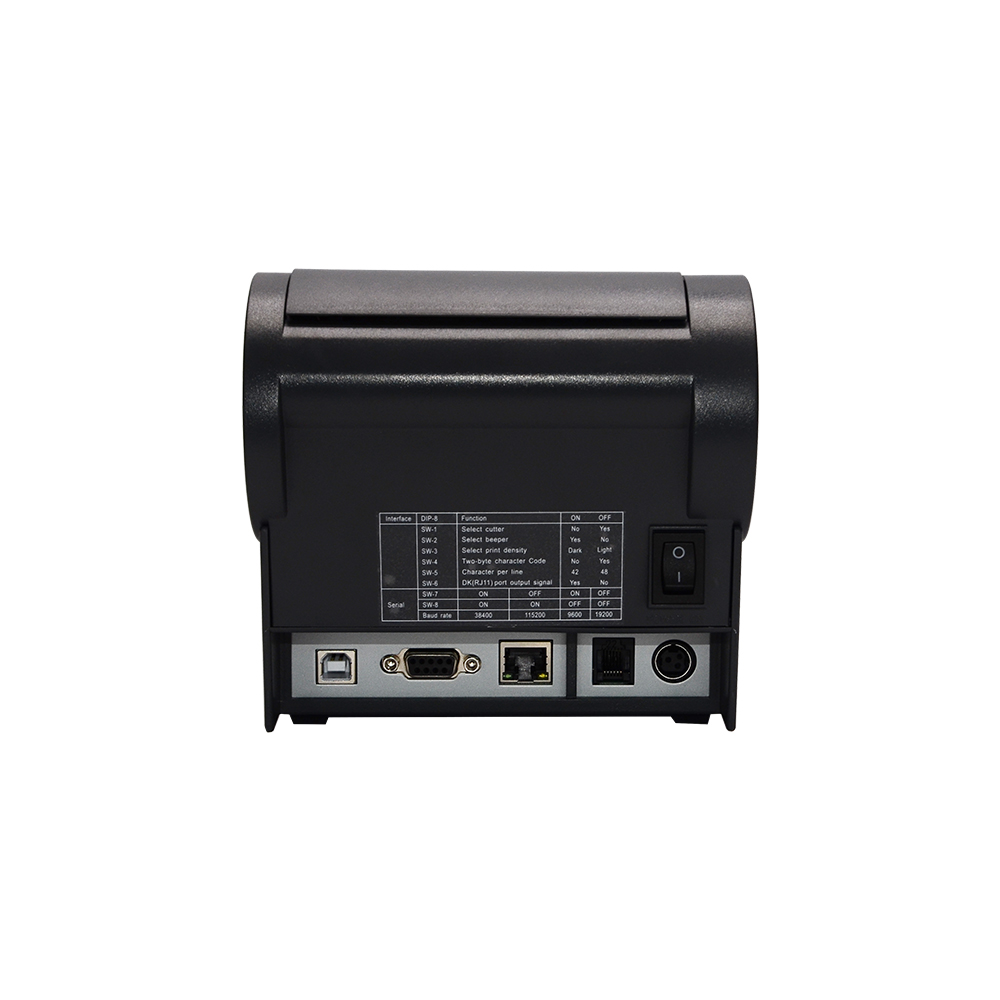

DIP Switch Configuration Table
| Switch | Function | Option 1 | Option 2 |
|---|---|---|---|
| SW-1 | Select cutter | No | Yes |
| SW-2 | Select beeper | Yes | No |
| SW-3 | Select print density | Dark | Light |
| SW-4 | Two-byte character code | No | Yes |
| SW-5 | Character per line | 42 | 48 |
| SW-6 | DK(RJ11) port output | Yes | No |
Language & Character Support
Supported Character Sets
AlphanumericKatakanaMultilingualPortugueseCanadianWest EuropeHebrewIranEast EuropeLatinLatvian
