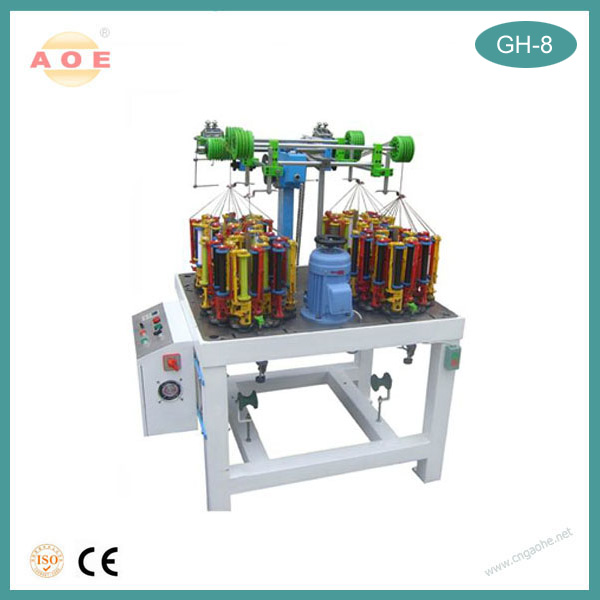

8-Spindle High-Speed Lace Braiding Machine
This high-speed braiding machine is equipped with eight spindles for efficient lace production. It is designed to produce various ropes, special bands, and shoelaces with precision and speed.
Technical Specifications
Overview
High-Efficiency Lace Braiding Solution
This 8-spindle high-speed braiding machine is engineered for the professional production of round ropes, special bands, and shoelaces. Featuring a four-head design, it can produce four laces simultaneously, significantly increasing factory throughput. The machine is built with precision-machined ductile iron components and surface-hardened rotors to ensure long-term stability and minimal maintenance in high-volume industrial environments.
Technical Performance
Performance Metrics
320 RPM
Max Rotation Speed
4
Production Heads
8
Carriers per Head
0.75 kW
Motor Power
- Production Capacity (MPH)
- 60 x 4
Applications
Supported Products
- RIC-RAC Lace
- Piping Tape
- Jacquard Tape
- Elastic Band
- Fibre Band
- Various Ropes
- Special Bands
- Shoelaces
Construction & Engineering
Material & Build Quality
| Component | Material/Treatment | Benefit |
|---|---|---|
| Base Casting | Machined after aging treatment | Ensures flatness |
| Panel | Ductile Iron 800 | Precision and wear resistance |
| Core Shaft Rotor | Ductile Iron 600 + High-frequency treatment | Enhanced surface hardness |
| Rotor Nylon Pad | Nylon 66 with imported grease | Extended lifespan |

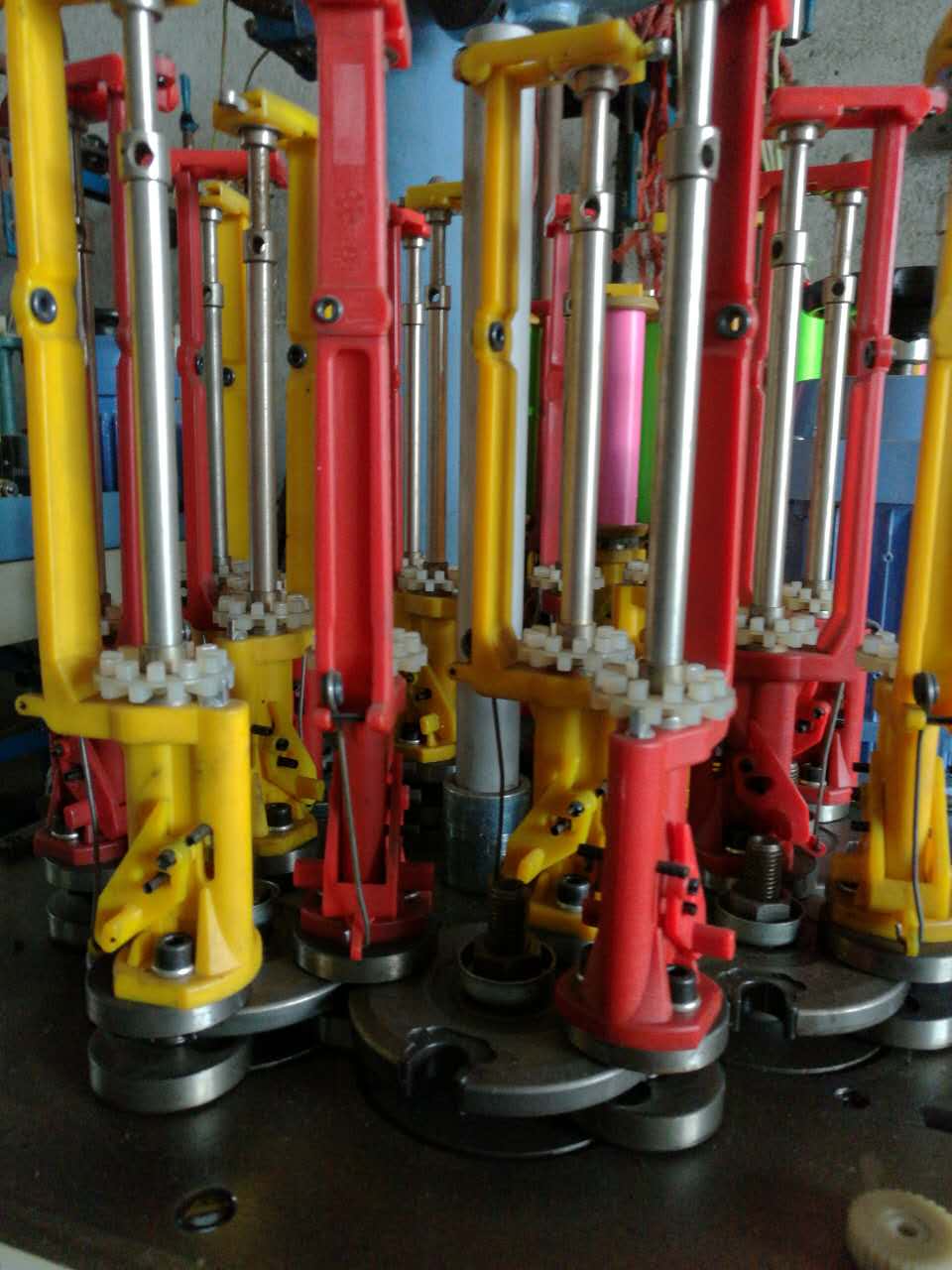

- Spindle/Impeller Fit Tolerance
- 0.03 mm
Operation & Features
Operational Features
- Auto yarn cutting device
- Frequency converter for variable speed control
- Humanized design for safe operation
- Fast and simple bobbin replacement system
- Direct and convenient maintenance access
Physical Specifications
- Machine Dimensions
- 1050 x 1050 x 1700 mm
- Bobbin Dimensions
- 48 x 140 mm
- Voltage Requirements
- 220/380 VAC, 50/60Hz
Logistics & Compliance
- Certifications
- CE
- Delivery Timeline
- 20 days for <10 sets; 30 days for >10 sets
- Packaging Method
- Single wooden case (<10 sets) or full container load (>10 sets)
