33 Spindle High Speed Lace Braiding Machine
This high-speed braiding machine is equipped with 33 spindles for producing lace. It is designed for creating flat RIC-RAC lace, piping tape, jacquard tape, elastic bands, and shoelaces.
Technical Specifications
Overview
High-Speed Lace Braiding Solution

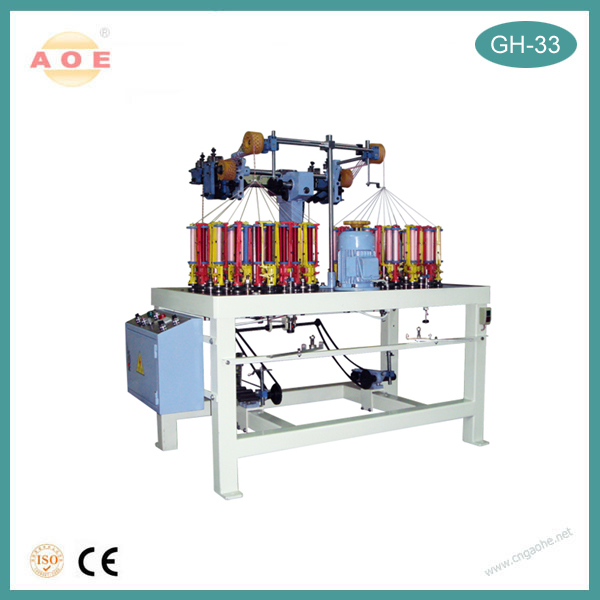

The GH-33 is a high-performance 33-spindle braiding machine specifically engineered for the efficient production of flat RIC-RAC lace, piping tapes, and jacquard tapes. Featuring a dual-head configuration and a maximum speed of 300 RPM, it delivers high-volume output for shoelaces, elastic bands, and decorative fibre bands. The machine is built with precision-machined ductile iron components and an automated yarn cutting device to ensure consistent quality and reduced downtime in professional textile environments.
Performance Metrics
Performance Metrics
300 RPM
Max Speed
33
Carriers per Head
2
Production Heads
1.1 kW
Motor Power
Technical Specifications
Machine & Component Data
| Parameter | Value |
|---|---|
| Machine Size | 1400 x 950 x 1700 mm |
| Bobbin Dimension | 48 x 140 mm |
| Max M.P.H | 60 x 2 |
| Voltage Support | 220/380 VAC, 50/60Hz |
Applications
Supported Products
- Flat RIC-RAC Lace
- Piping Tape
- Jacquard Tape
- Elastic Bands
- Fibre Bands
- Various Ropes
- Specialty Bands
- Shoelaces
Manufacturing & Quality
Technical Advantages
- Base casting machined after aging treatment for perfect flatness
- Ductile iron 800 panels for high precision and wear resistance
- Core shaft rotor with high-frequency surface treatment and precision grinding
- Spindle base and impeller fit tolerance controlled within 0.03mm
- Rotor nylon pads cast with imported wear-resistant grease
Operational Features
Key Features
- Frequency converter for stepless speed adjustment
- Automatic yarn cutting device
- Humanized design for safe and easy operation

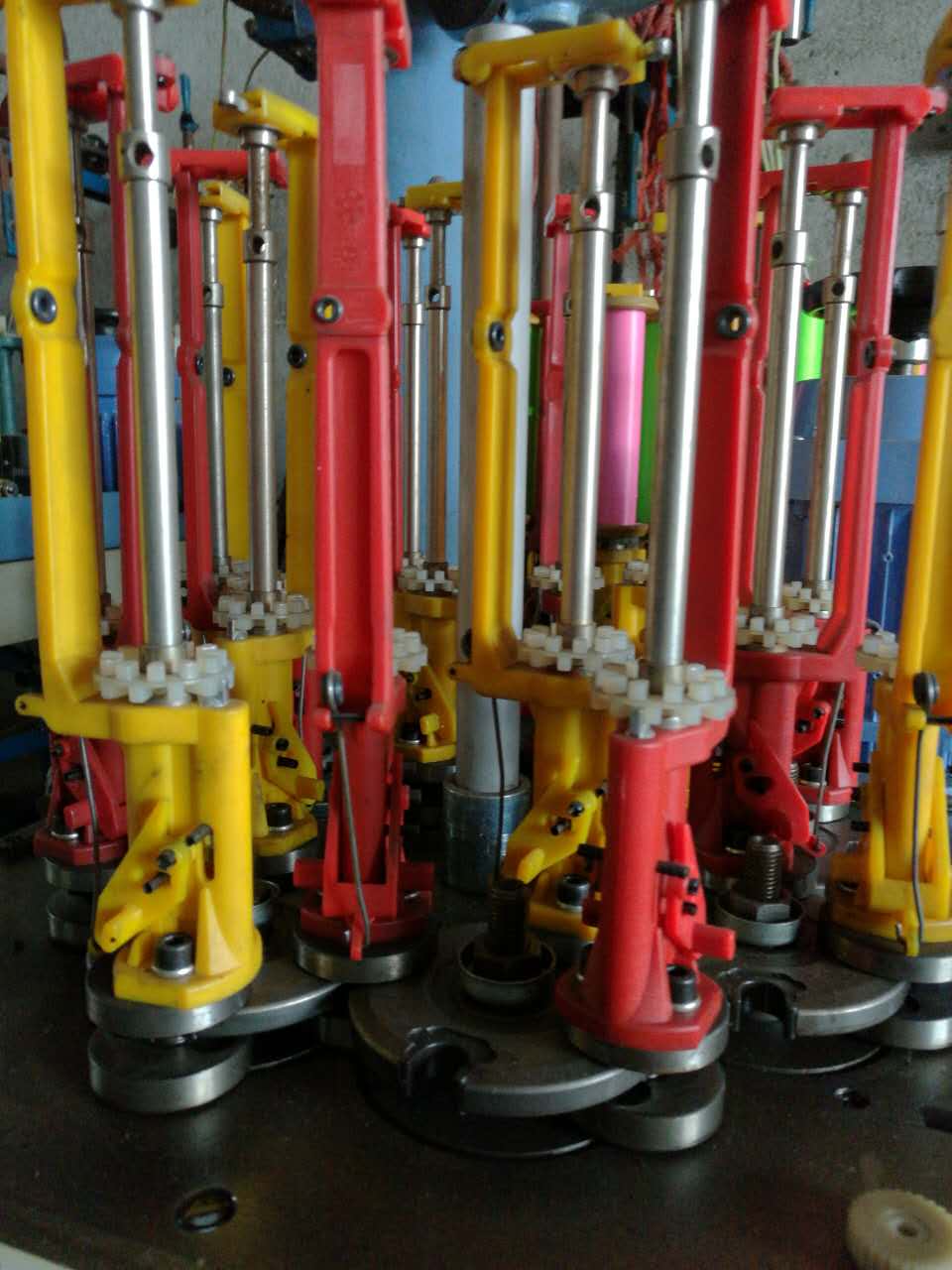

- Quick-change spindle structure for fast bobbin replacement
- Direct and convenient maintenance access
Compliance
- Certifications
- CEISO
