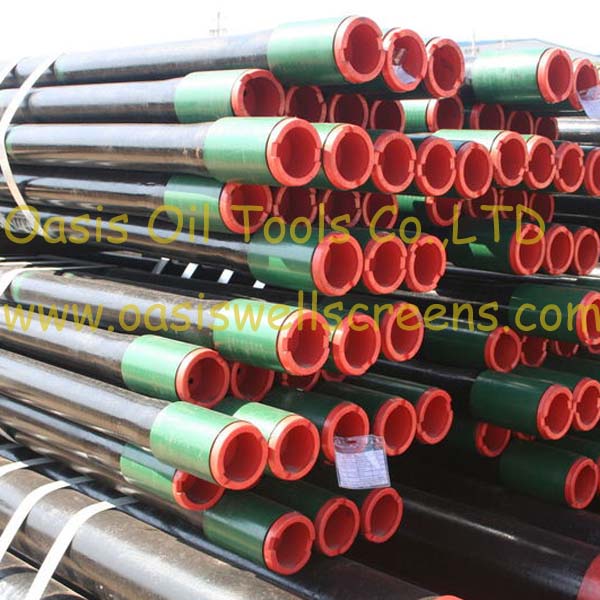

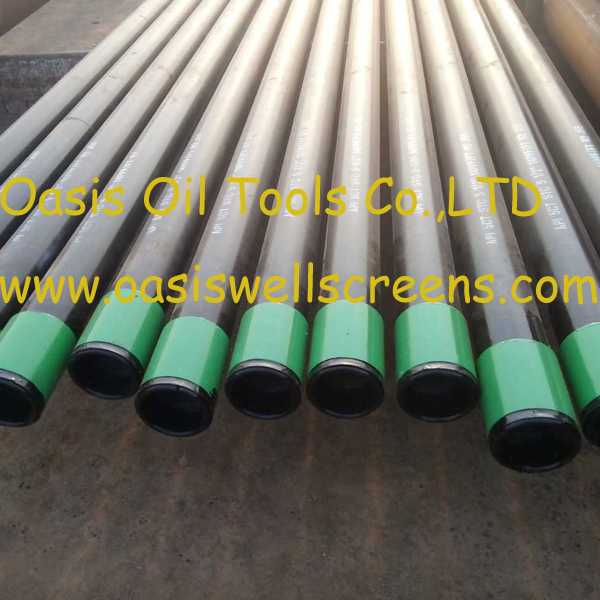

8 5/8" Seamless Casing Pipe for Well Drilling
This 8 5/8" seamless casing pipe is designed for well drilling applications. It is manufactured to API 5CT specifications.
Technical Specifications
Product Overview
High-Performance Seamless Casing Pipe
This seamless casing pipe is engineered for critical well drilling applications, designed to provide superior structural integrity and stability for oil and gas wells. Manufactured in strict accordance with API 5CT and API 5B standards, these pipes ensure reliable performance under demanding subsurface conditions. Available in a wide range of steel grades and connection types, they are suitable for various drilling depths and geological environments.
- Industry Standards
- API 5CTAPI 5B
Technical Specifications
Casing Connection Types
STCLTCBTC
Tubing Connection Types
EUENUE
- Available Steel Grades
- H40J55K55M65N80L80P110Q125
Size & Dimensions
Standard Dimensions Reference
| Size (in) | Weight (ppf) | Wall Thickness (mm) |
|---|---|---|
| 4-1/2 | 11.6 | 6.35 |
| 5 | 15 | 7.52 |
| 5-1/2 | 17 | 7.72 |
| 7 | 23 | 8.05 |
| 9-5/8 | 43.5 | 11.05 |
| 10-3/4 | 40.5 | 8.89 |
| 13-3/8 | 54.5 | 9.65 |
| 16 | 65 | 9.53 |
| 20 | 94 | 11.13 |
- Available Size Range
- 2 3/8 inch – 20 inch
