Technical Specifications
Overview

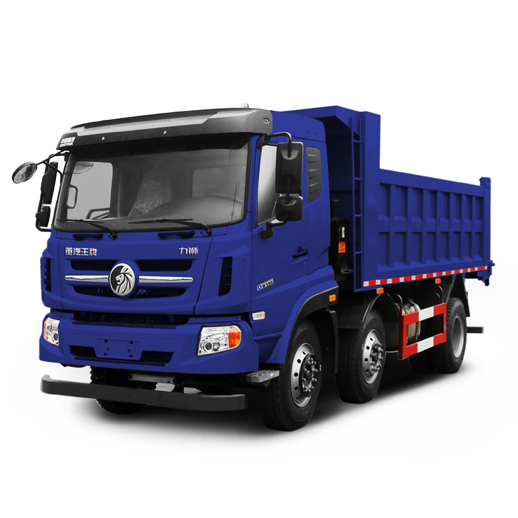

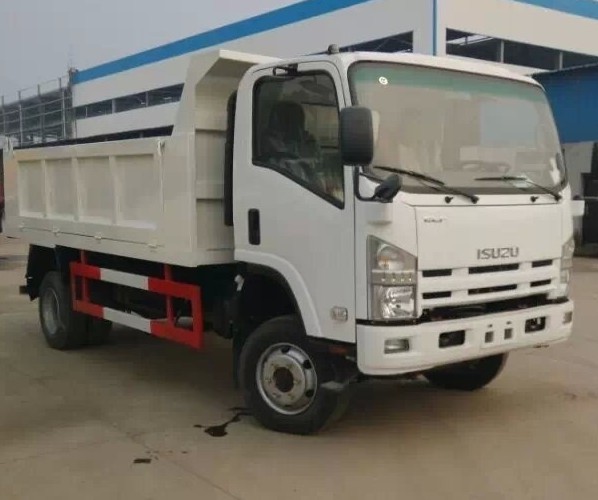

Robust 6m3 Dump Truck
This 6m3 capacity dump truck is engineered for reliability and efficiency in construction and material transport applications. Featuring a powerful 189PS engine and a durable 4x2 drivetrain, it is designed to handle challenging terrains while maintaining performance. With a reinforced dump body and a user-friendly hydraulic lifting system, this vehicle provides an effective solution for heavy-duty hauling needs.
Performance & Engine
Engine Performance
189 PS
Horsepower
139 kW
Power
5,193 ml
Displacement
- Engine Model
- 4HK1-TC51
Dimensions & Capacity
Truck Dimensions
| Metric | Value |
|---|---|
| Overall Length | 6500 mm |
| Overall Width | 2200 mm |
| Overall Height | 2600 mm |
| Wheelbase | 3815 mm |
Dump Body Specifications
- Capacity: 6m3
- Internal Dimensions: 4000 x 2000 x 800 mm
- Bottom Thickness: 4mm
- Side Thickness: 3mm
- Lifting System: Middle Lift, Single Hydraulic Jack
Chassis & Drivetrain
- Drivetrain Configuration
- 4x2
- Transmission
- MLD-6Q (6 Forward, 1 Backward)
- Tires
- 8.25R20 14PR (7 units including spare)
Weights & Loads
Weight Specifications
5,300 kg
Curb Weight
10,000 kg
Gross Vehicle Weight
Features & Safety
Standard Equipment
Power SteeringAir ConditioningABSFree Maintenance BatteryRetro-reflective Marking
