63-200mm Manual HDPE Pipe Butt Fusion Welding Machine

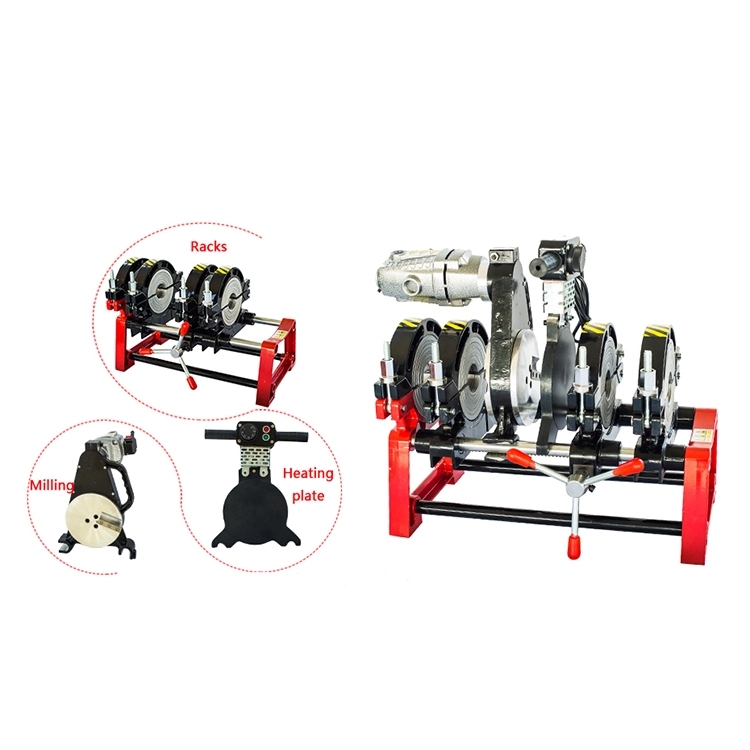

This manual machine welds high-density polyethylene (HDPE) pipes ranging from 63mm to 200mm in diameter using the butt fusion method. It utilizes a four-clamp system to securely hold pipes in place, ensuring precise alignment and optimal fusion for strong, leak-proof joints.
Technical Specifications
Product Overview
Professional HDPE Pipe Welding Solution

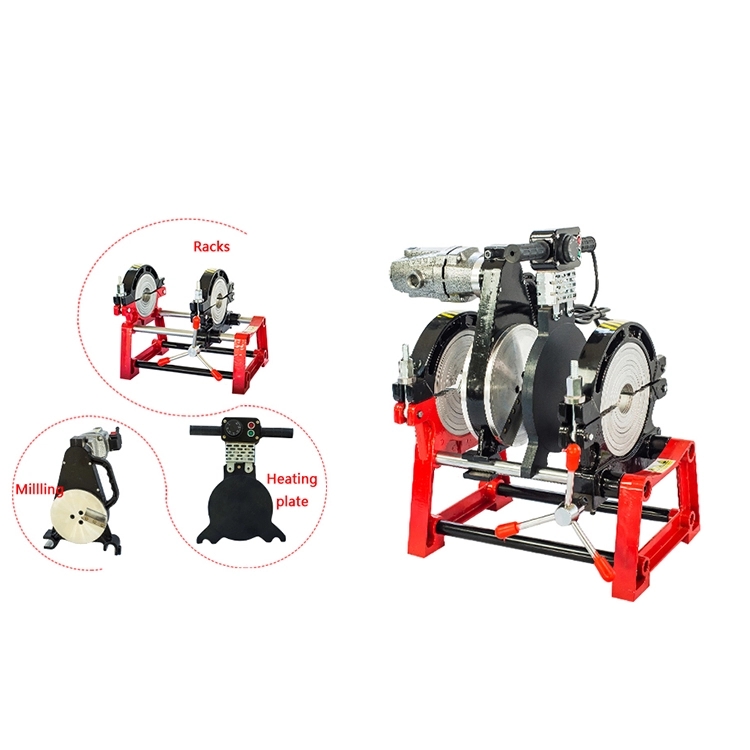

This manual butt fusion welding machine is designed for joining high-density polyethylene (HDPE) pipes with diameters ranging from 63mm to 200mm. Featuring a robust four-clamp system, it ensures precise pipe alignment and secure holding for leak-proof joints in plumbing, gas distribution, and sewage systems. The machine's manual operation provides high control and accuracy, making it an ideal choice for both on-site construction and workshop applications.
Technical Performance
Performance Metrics
300 °C
Max Temperature
0.2 mm
Butt Deviation
20 min
Heating Time
Compatible Materials
PEPPRPBPVDF
- Welding Range
- 63mm75mm90mm110mm125mm140mm160mm200mm
Component Specifications
Component Details
| Component | Weight | Power Consumption |
|---|---|---|
| Racks | 25.5 kg | N/A |
| Heating Plate | 2.8 kg | 1.8kw / 220v |
| Milling Tool | 6.0 kg | 0.9kw / 220v |
Operating Conditions
- Ambient Temperature Range
- -40°C to 40°C
- Temperature Deviation
- ±3°C
Physical Dimensions
- Gross Weight
- 42.4 kg
- Packing Dimensions
- 61 x 43 x 42 cm

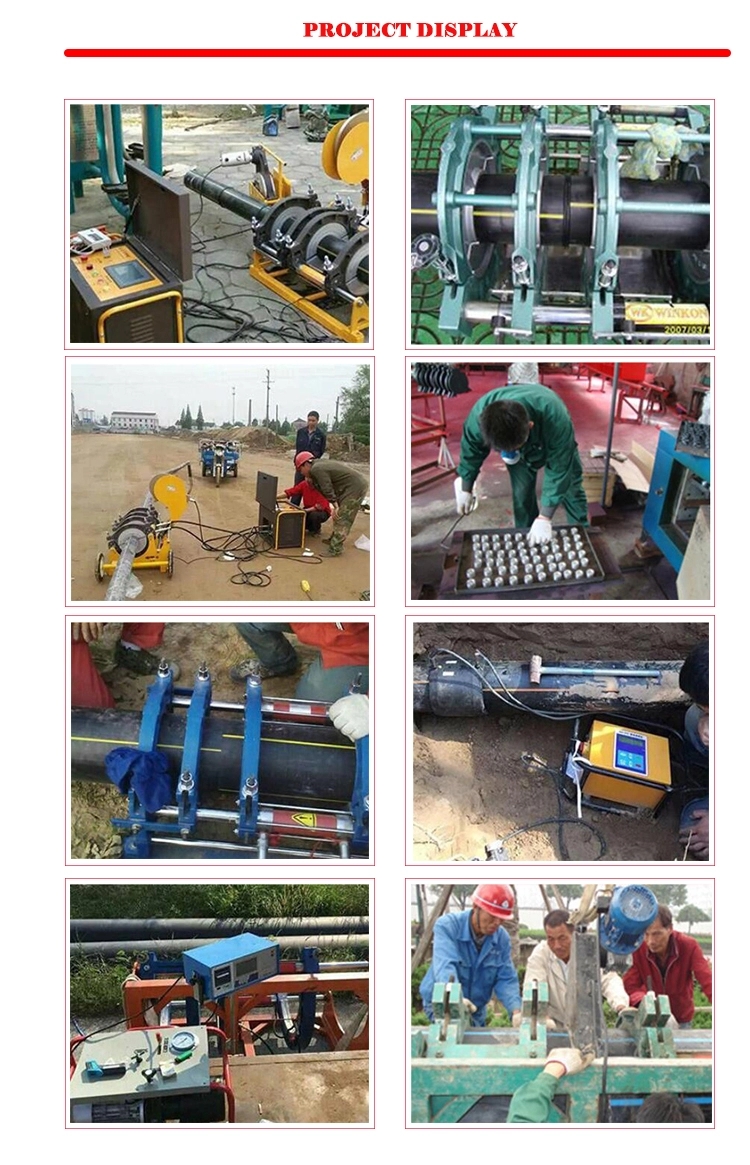

Operational Steps
Standard Welding Procedure
- Fix the pipes on the machine frame with 5cm-8cm spacing
- Use milling cutter to prepare pipe ends until continuous cutting is achieved
- Insert heating plate once stable temperature is reached
- Apply pressure for fusion according to pipe size and environment
- Allow joint to cool to ambient temperature before removal
