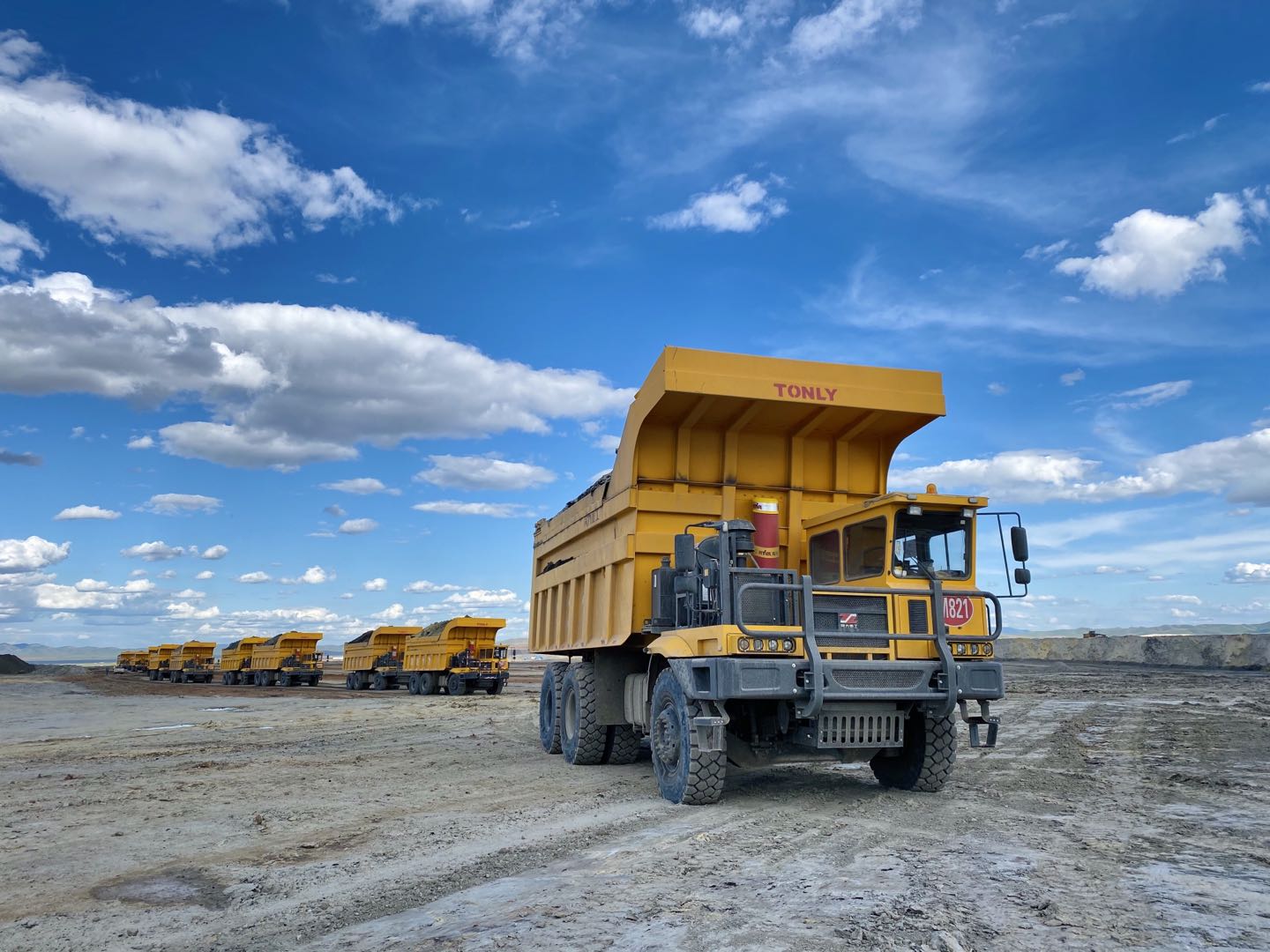

60-Ton Heavy Duty Mining Dump Truck
The TL875 series dump truck has a transport capacity exceeding 60 tons. It is a mature vehicle known for stable performance and a high market presence.
Technical Specifications
Overview
High-Capacity Mining Dump Truck

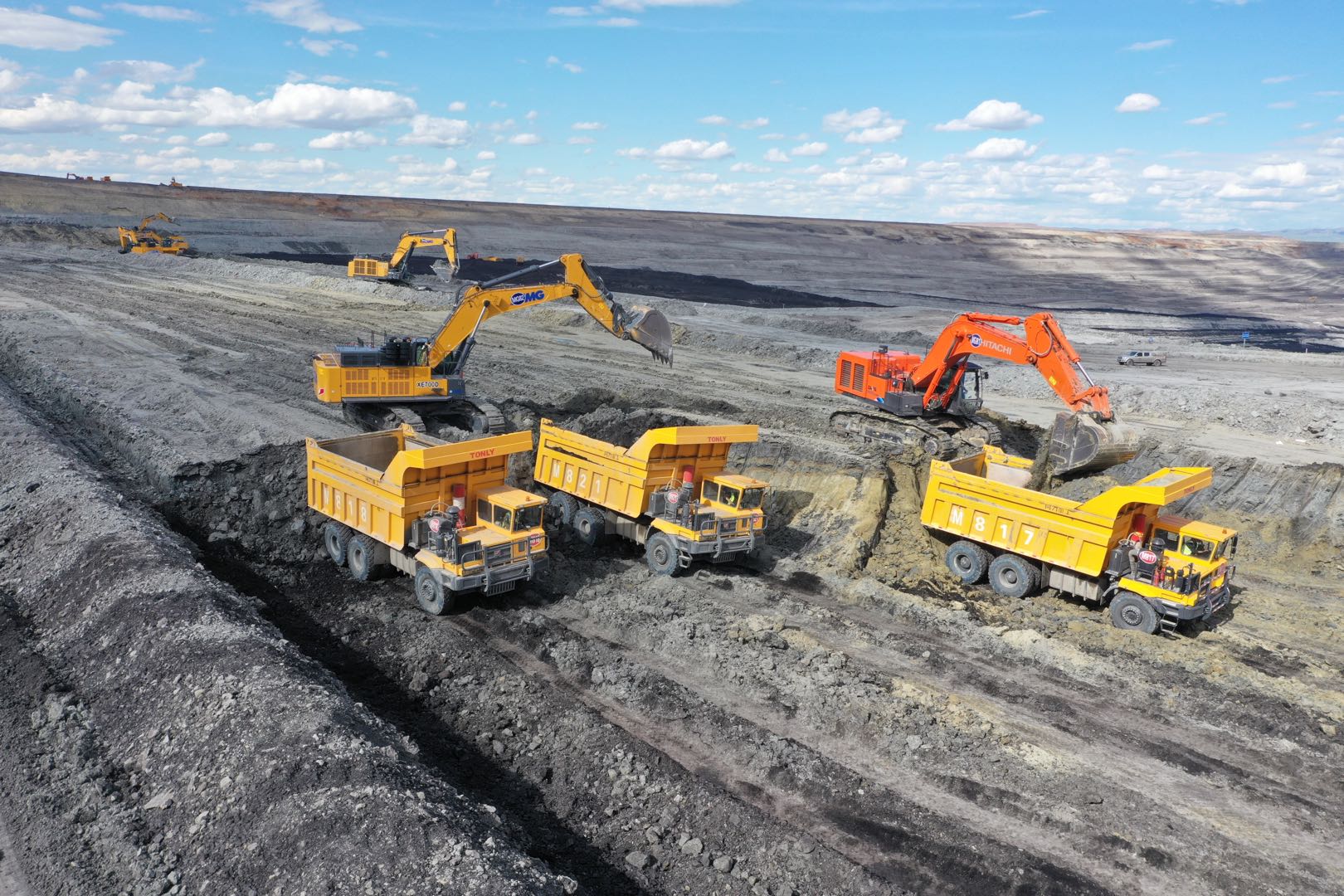

This heavy-duty mining dump truck is engineered for demanding off-road environments, offering a rated loading capacity of 60 tons. Available in three model configurations, it features a 6x4 drive mode and a 30 cubic meter standard bucket capacity for efficient material transport. With a robust design, high gradeability, and reliable braking systems, this vehicle is built to maximize productivity in large-scale mining operations.
Performance Metrics
Key Performance Metrics
60 t
Rated Loading Capacity
30 m3
Bucket Capacity
42 km/h
Max Speed
32 %
Max Gradeability
Technical Specifications
Model Specifications Comparison
| Feature | TL875B | TL875C | TL875D |
|---|---|---|---|
| Engine Power | 430Hp | 420Hp | 480Hp |
| Gearbox | Fast 7DS180 | Fast 7DS180 | Fast 8DS260 |
| Overall Height | 3978mm | 3978mm | 3937mm |
Dimensions and Geometry
Physical Dimensions
- Overall Length: 9157 mm
- Overall Width: 3470 mm
- Min. Ground Clearance: 305 mm
- Approach Angle: 24°
- Departure Angle: 47°
Chassis and Handling
- Chassis & Handling
- 6x4 Drive Mode20T Front Axle35T+35T Drive AxleSingle Cylinder Front Lifting14.00-25 Tires
Safety
- Braking Distance
- <15m (at 30km/h)
