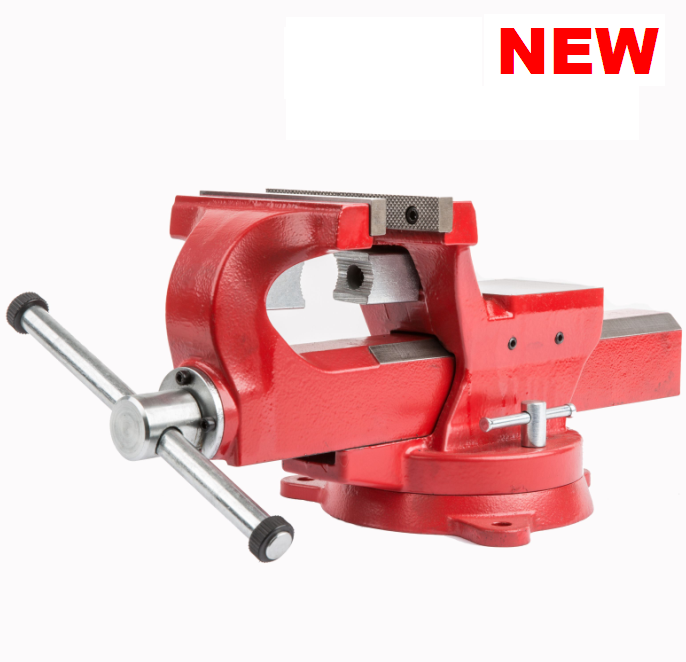

6-Inch Industrial Bench Vise
This 6-inch bench vise is designed for securely holding workpieces during machining, woodworking, and assembly. It features a heavy-duty cast iron construction for strength and durability.
Technical Specifications
Overview
Professional Grade Industrial Bench Vise
This 6-inch industrial bench vise is engineered from Austempered Ductile Iron (ADI), providing superior tensile strength and durability that exceeds standard steel. Designed for rugged B2B applications, it features a massive 8000KG clamping force and a 360-degree swivel base for maximum workshop flexibility. Whether for grinding, cutting, or tapping, this vise offers a lifetime of reliable service in demanding industrial environments.
Key Performance Metrics
Performance Highlights
8,000 KG
Clamping Force
150 mm
Jaw Width
200 mm
Max Opening
Material & Construction
- Body Material
- Austempered Ductile Iron (ADI)
- Surface Finish
- Powder Coated
- Hardware Finish
- Zinc-plated HandleZinc-plated Main Screw
Technical Specifications
- Throat Depth
- 91.9 mm
- Pipe Clamping Capacity
- 18.5mm - 87.5mm (3/4" - 3 1/2")
- Swivel Base Rotation
- 360 °
Functional Features
Clamping Features
- Replaceable microgroove tooth steel jaws
- Built-in high strength steel pipe jaws
- U-Shaped main screw collar for enhanced pressure
- Precision machined guide bar with adjusting screw
- Large integrated anvil for metal shaping
Operational Enhancements
- Noise-canceling plastic ring handle protection
- Removable handle for specialized usage
- Dual locking nuts on swivel base

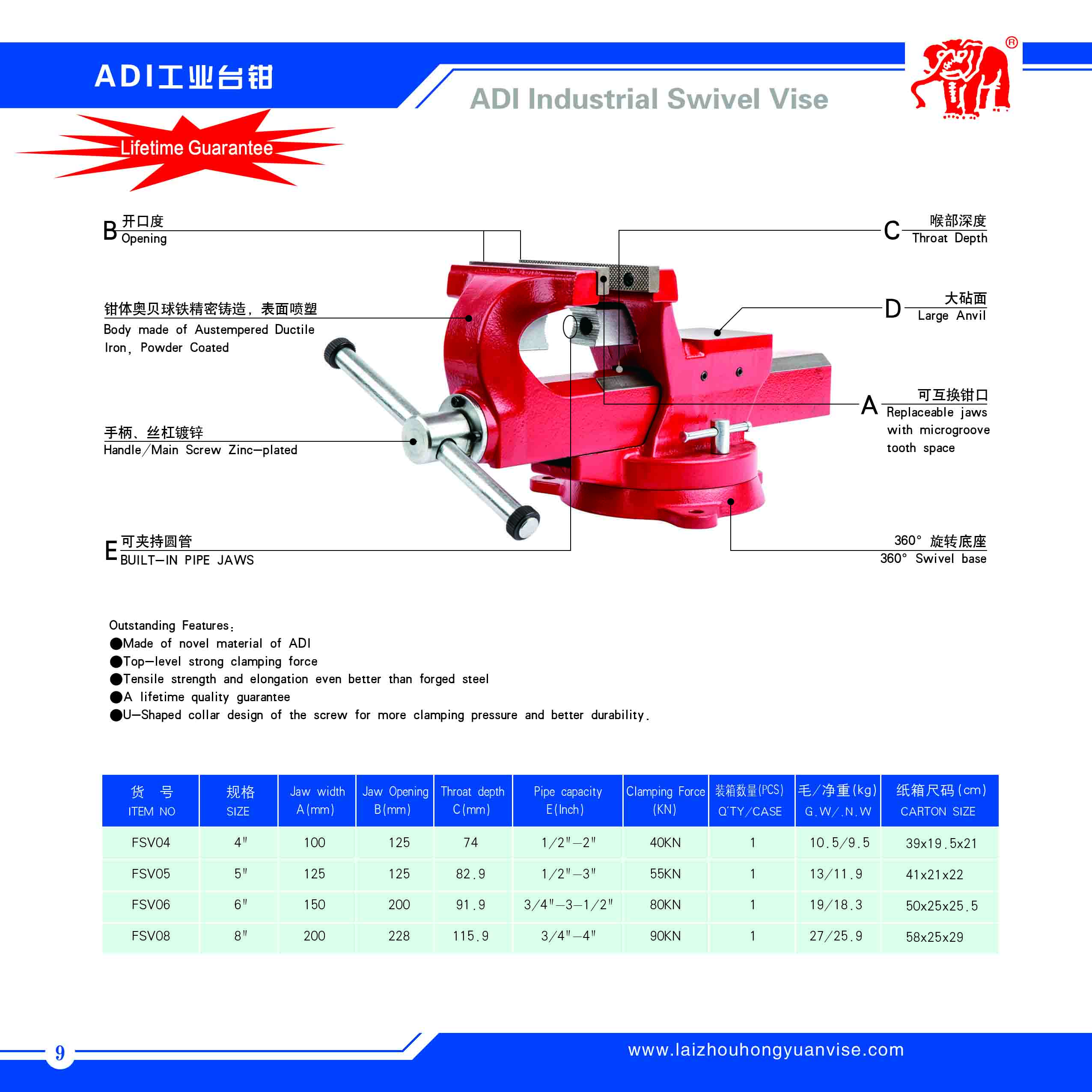

Product Line Comparison
Model Range Specifications
| Size | Jaw Width (mm) | Opening (mm) | Throat Depth (mm) | Clamping Force (KN) |
|---|---|---|---|---|
| 4" | 100 | 125 | 74 | 40 |
| 5" | 125 | 125 | 82.9 | 55 |
| 6" | 150 | 200 | 91.9 | 80 |
| 8" | 200 | 228 | 115.9 | 90 |
Warranty & Quality
Quality Assurance
Lifetime WarrantyIndustrial GradeHigh Tensile Strength
