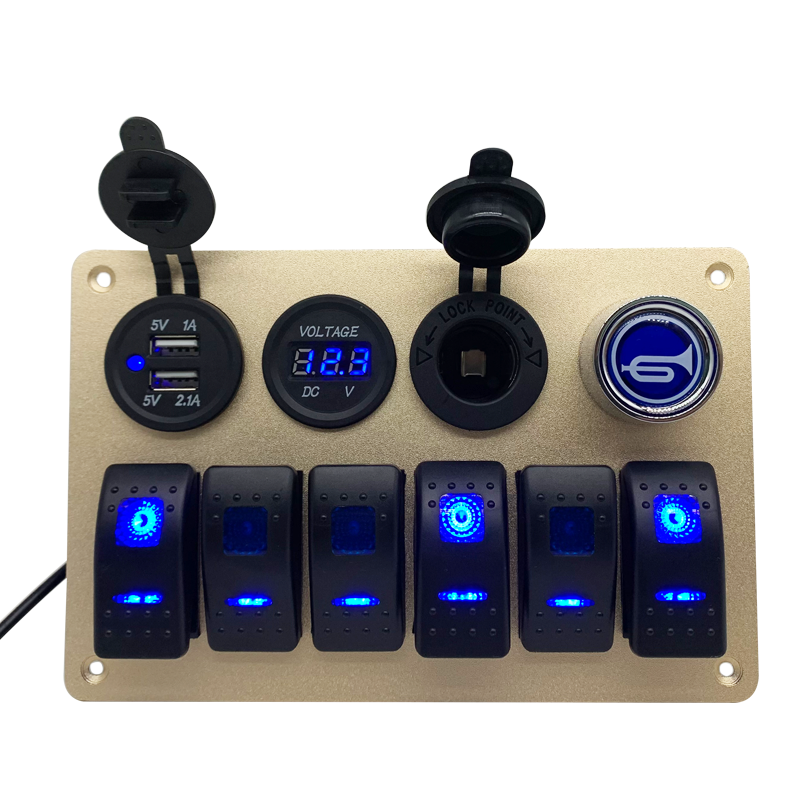

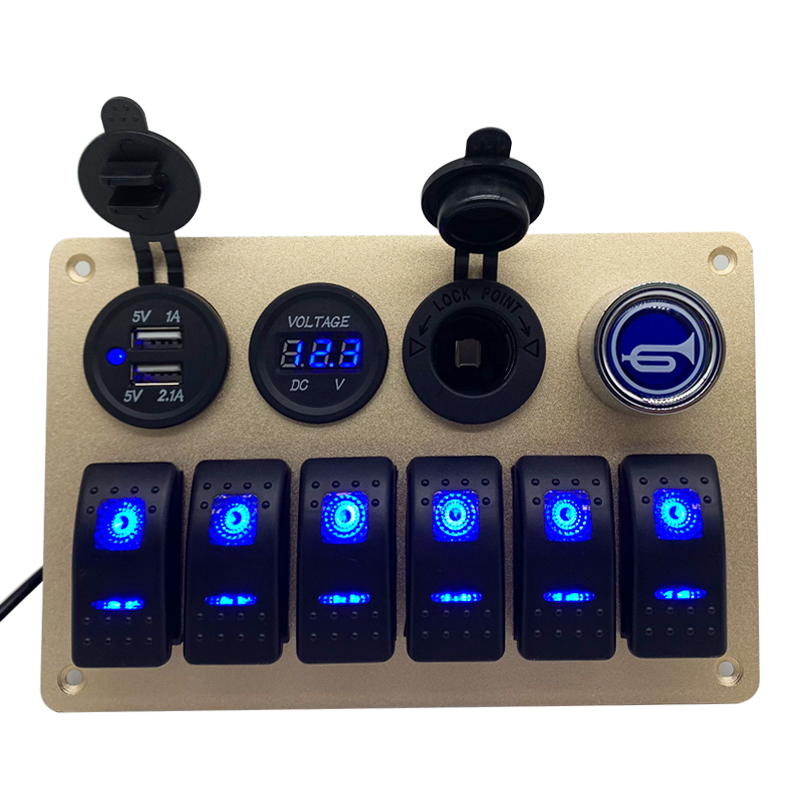

6-Gang Rocker Switch Panel with Dual USB and Voltmeter
This 6-gang rocker switch panel is designed for 12V systems and features dual USB charging ports and a voltmeter. It is waterproof and includes LED-illuminated rocker switches with glow labels.
Technical Specifications
Product Overview
Integrated 6-Gang Control Solution
This 6-Gang Rocker Switch Panel is a comprehensive electrical control center designed for 12V and 24V DC systems in marine, automotive, and RV applications. It features a high-durability aluminum faceplate equipped with six LED-illuminated switches, dual USB charging ports, and a real-time digital voltmeter for battery monitoring. The waterproof design and glow-in-the-dark labels ensure reliable operation and easy identification in all environmental conditions.
Electrical Specifications

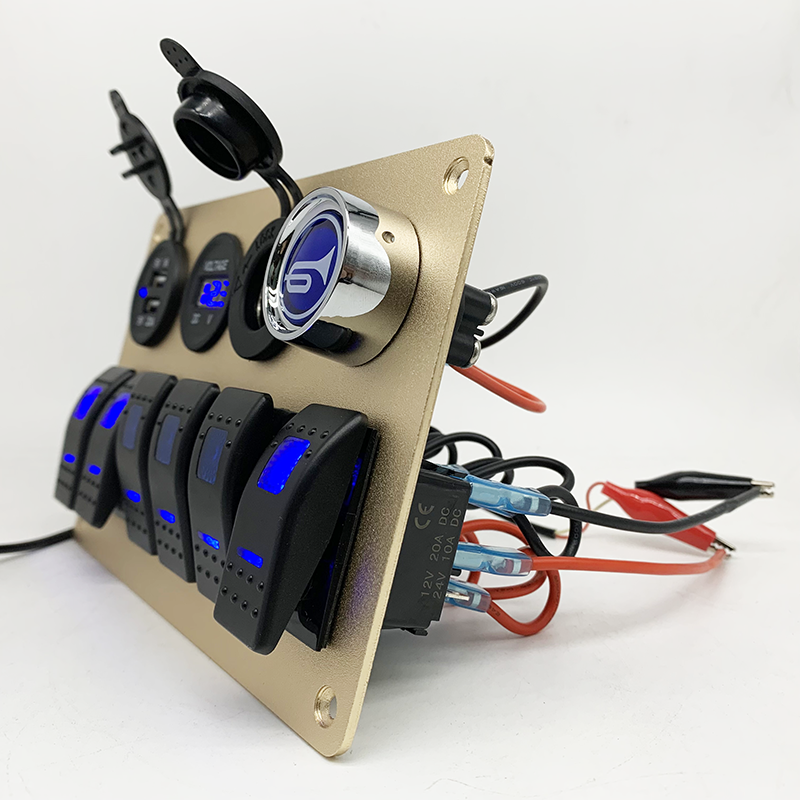

Rated Current
20 A
at 12V DC
10 A
at 24V DC
- Operating Voltage
- 12VDC / 24VDC

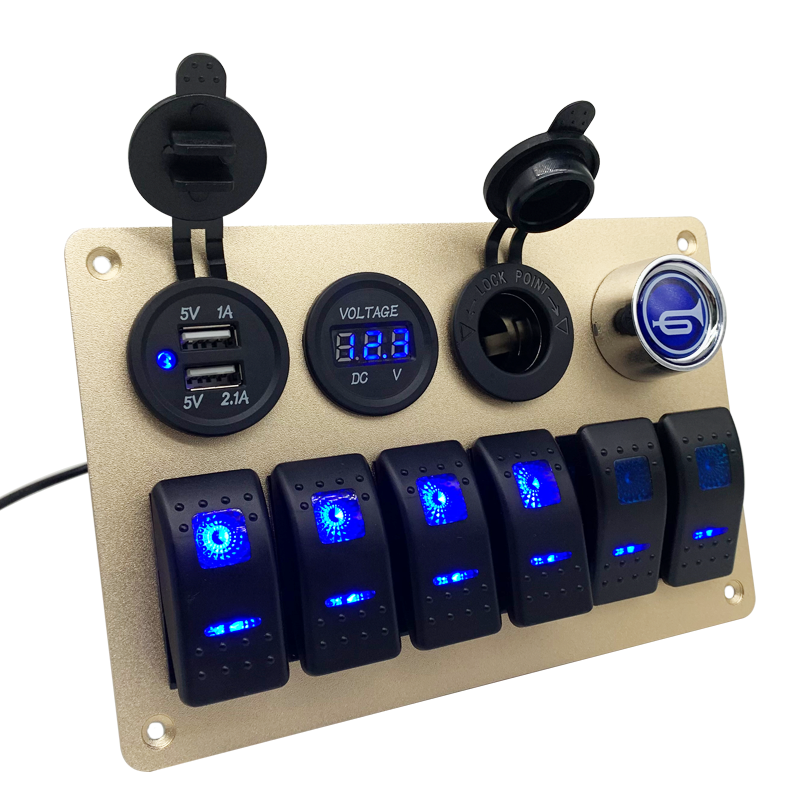

Charging & Monitoring
USB Charging Ports
- Port 1: 5V 1A
- Port 2: 5V 2.1A
- Voltage Monitoring
- Digital LED Display (Red/Blue)
Switch Details
- Switch Function
- SPST ON-OFF Rocker
- Pin Configuration
- 5 pins
- Indicator Light
- Blue LED Light
Materials & Durability
Protection Features
- Waterproof construction
- Dust and debris resistant rubber covers
- Flame retardant materials
- Glow-in-the-dark labels
- Materials
- AluminiumABS PlasticMetal
Operating Environment
- Operating Temperature
- -25°C to +85°C
Application
Target Applications
CarMarineBoatRVMotorcycleBusTrailer
