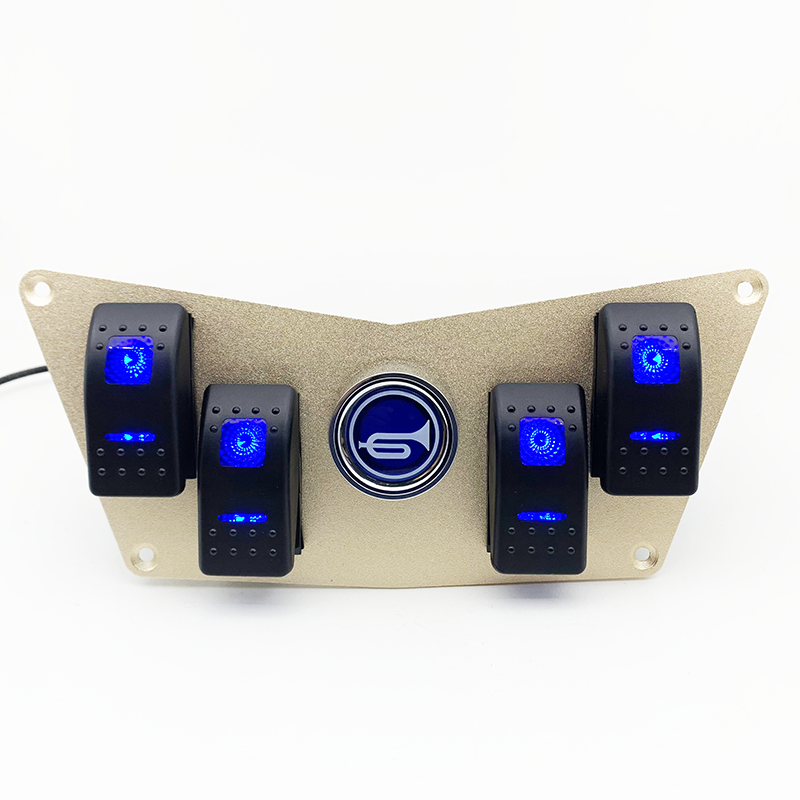

4-Gang LED Rocker Switch Panel with Horn Switch
This 4-gang LED rocker switch panel is designed for car and boat applications. It features four rocker switches with LED indicators and a dedicated horn switch.
Technical Specifications
Overview
Bat-Shaped 4-Gang Control Panel

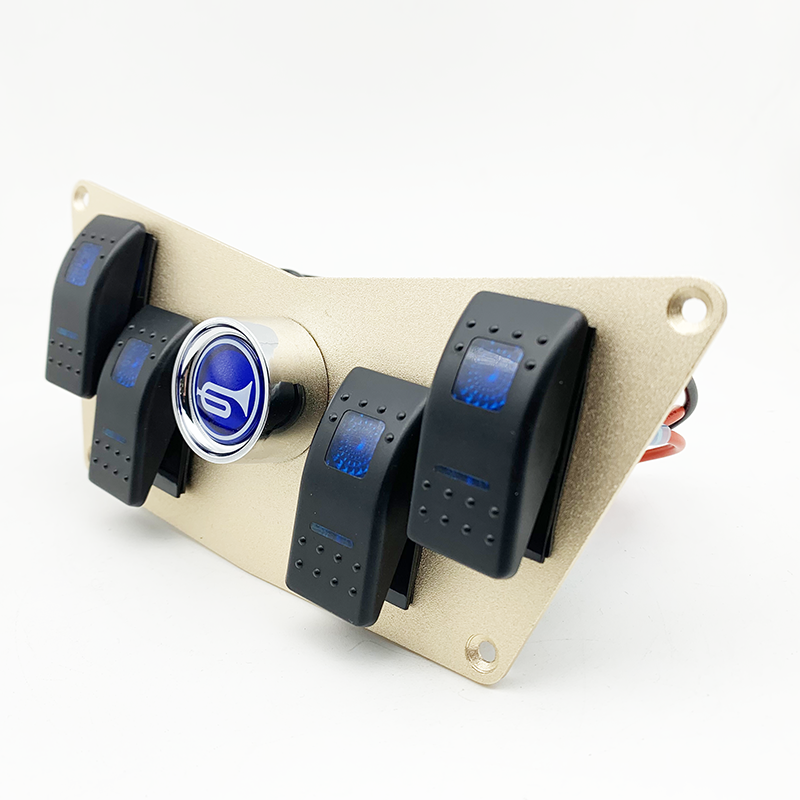

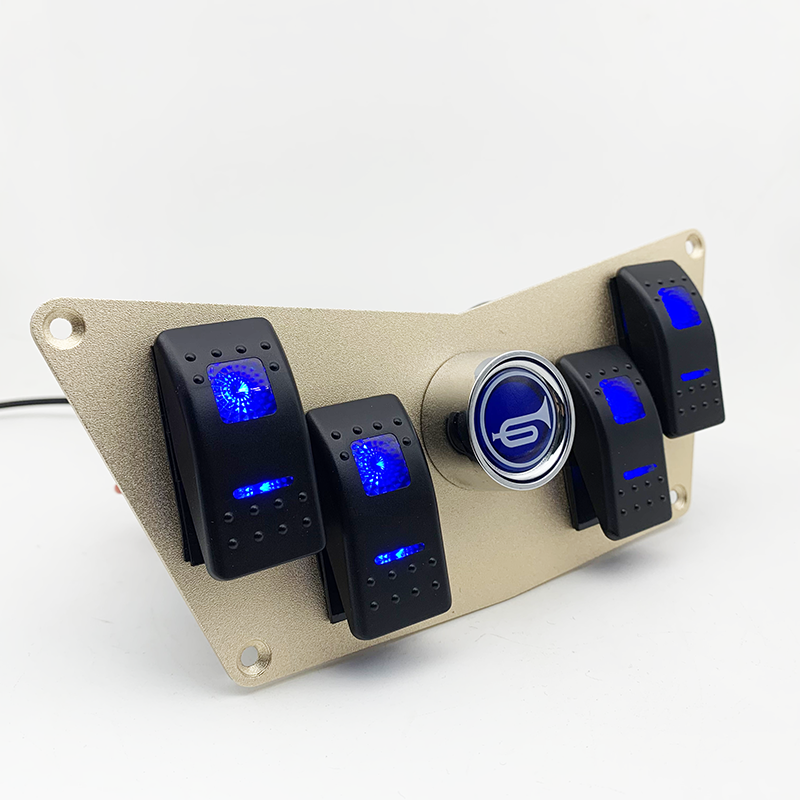

This high-end rocker switch panel features a unique bat-shaped design, combining four independent device switches with a dedicated horn button. Constructed from a durable blend of aluminum and flame-retardant ABS, it is engineered for long-lasting performance in demanding marine and automotive environments. The integrated blue LED backlighting ensures clear visibility and status indication during night-time operation.
Technical Specifications
Input Voltage
12 V
DC Low
24 V
DC High
Rated Current
- 12V / 20A DC
- 24V / 10A DC
- Mechanical Life
- 50000 Cycles
- Operating Temperature Range
- -25°C to 80°C
Design & Materials
Available LED Colors
BlueRedGreenOrangeWhite
- Construction Materials
- AluminiumABS PlasticMetal
- Panel Finish
- Local Tyrant Gold
Protection & Safety
Integrated Protection
- Output short circuit protection
- Overload protection
- Reverse connection protection
- Flame retardant materials
- Waterproof Grade
- IP65
- Compliance
- CE
Installation & Application
What's in the Box
- 1 x Rocker Switch Panel
- 4 x Mounting Screws
- 1 x Function Sticker Sheet
- Suitable Applications
- Marine BoatRVCarTruckYachtMotorcycle
Voltmeter Details
Integrated Voltmeter
| Feature | Specification |
|---|---|
| Measuring Range | 5V - 30V |
| Display Color | Blue LED |
| Working Voltage | 12V - 24V |
