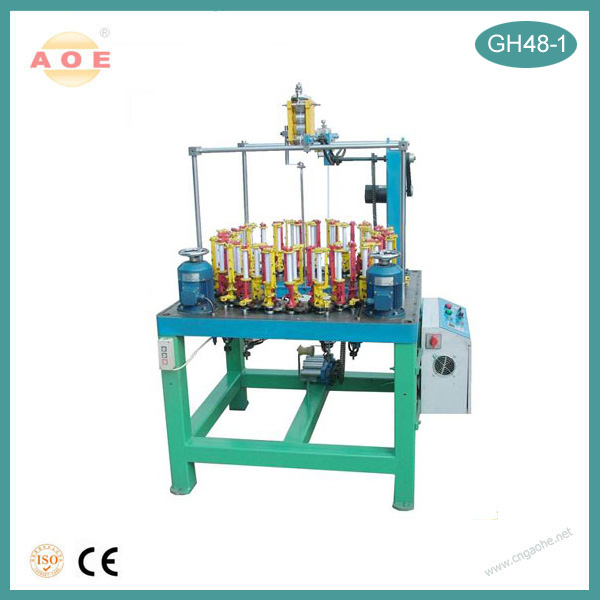

48 Spindle High Speed Lace Braiding Machine
This high-speed lace braiding machine features 48 spindles and a single head for efficient lace production. It is designed for manufacturing intricate lace patterns, piping tape, and elastic bands.
Technical Specifications
Overview
High-Speed Lace Braiding Solution
This 48-spindle single-head braiding machine is engineered for high-efficiency production of intricate lace and technical tapes. It features a robust cast-iron construction with aging treatment to ensure long-term precision and stability during high-speed operation. Designed for versatility, it is ideal for manufacturing everything from fashion shoelaces and decorative RIC-RAC lace to industrial fiber bands and elastic tapes.
Key Performance Metrics
Performance Highlights
Technical Specifications
Technical Data
| Parameter | Value |
|---|---|
| Model | GH48-1 |
| Machine Dimensions | 1100 x 1000 x 1750 mm |
| Bobbin Dimension | 48 x 140 mm |
| Production Heads | 1 |
| Carriers Per Head | 48 |
| Max M.P.H | 60 x 1 |
| Voltage | 220/380 VAC, 50/60Hz |
Applications
- Supported Products
- RIC-RAC LacePiping TapeJacquard TapeElastic BandFibre BandShoelacesSpecial BandVarious Ropes
Engineering & Construction
Engineering Features
- Base casting with aging treatment for maximum flatness
- Ductile iron 800 panel for high precision and wear resistance
- Ductile iron 600 core shaft rotor with high-frequency surface hardening
- Precision-ground impeller with fit tolerance within 0.03mm
- Nylon 66 rotor pads infused with imported wearing-grease
- Frequency converter for stepless motor speed adjustment
- Integrated auto yarn cutting device
Compliance & Quality
Certifications
Operational Advantages

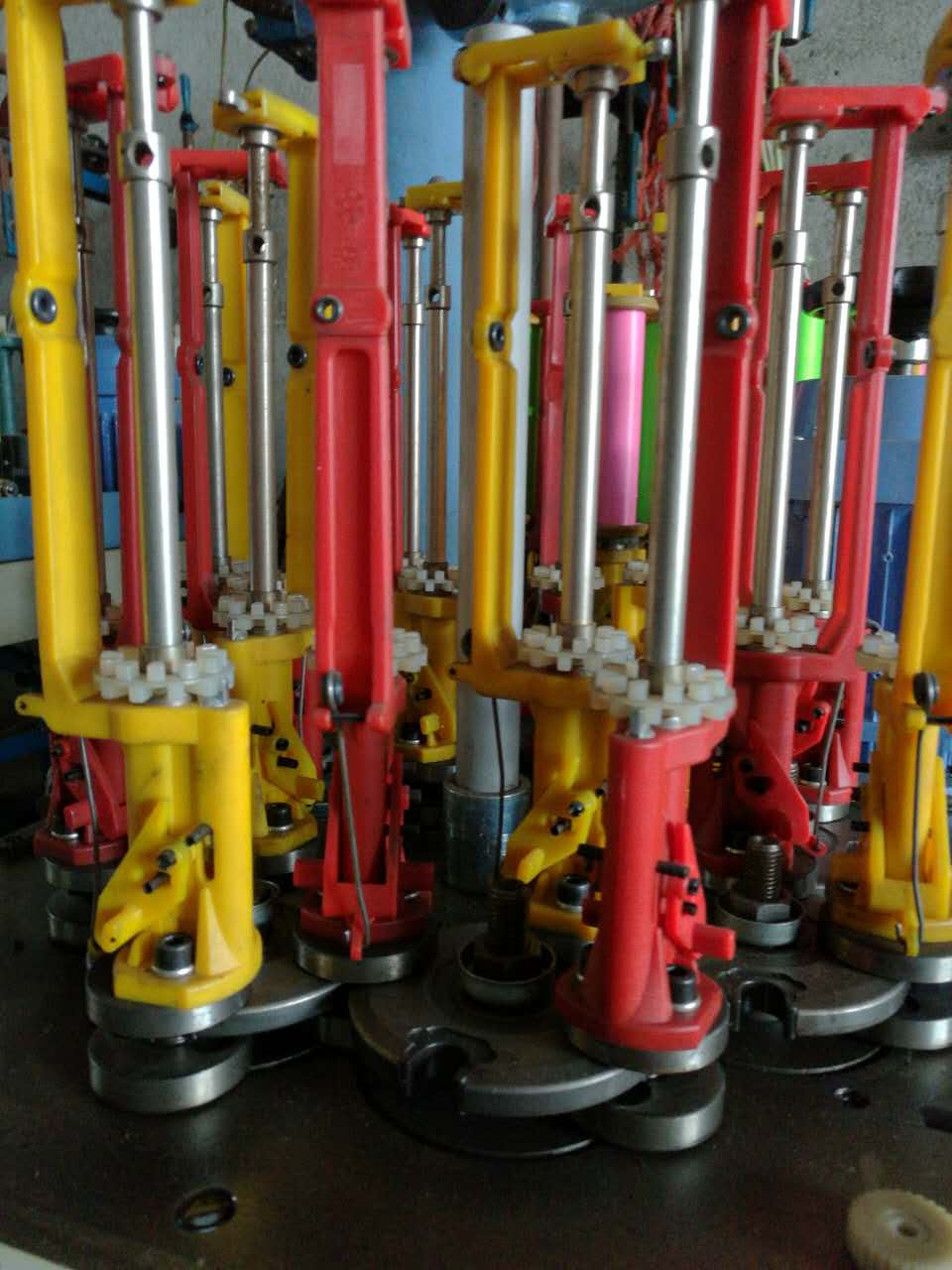

Humanized Design
The machine focuses on safe and easy operation with a spindle structure that allows operators to change bobbins quickly and simply. Maintenance is direct and convenient, supported by a standard accessories kit and comprehensive after-sale service to minimize downtime.
