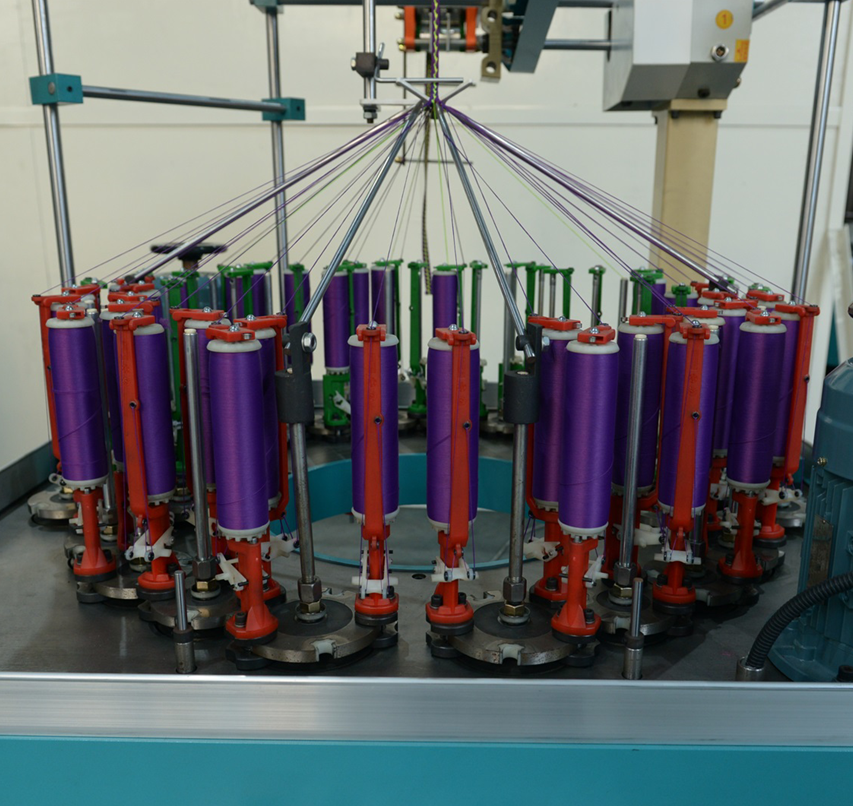

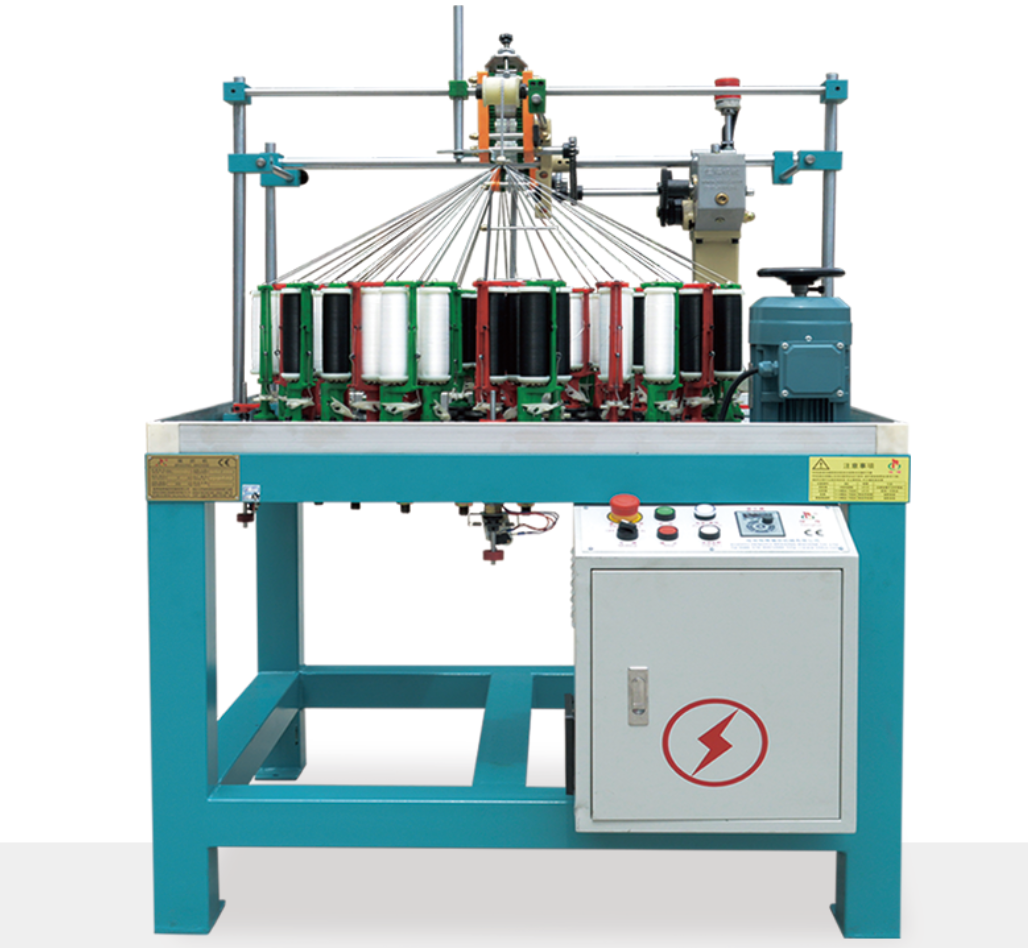

48-Spindle 3-Color Lace Braiding Machine
This 48-spindle lace braiding machine is designed to produce intricate lace patterns using up to three colors of yarn. It ensures high production capacity and precise control over the braiding process.
Technical Specifications
Overview
High-Efficiency Lace Braiding Solution
This 48-spindle braiding machine is engineered for high-speed production of garment accessories, curtains, and composite material braids. It features an advanced control system that allows for automatic stops during yarn breakage, minimizing the need for constant operator attendance. Designed for versatility and durability, the machine supports a wide range of materials including cotton, nylon, fiberglass, and carbon fiber.
Technical Specifications
- Model Number
- KBL-48-100
- Spindle Quantity
- 48
- Horngear Diameter
- 100 mm
- Motor Power
- 0.75 KW
- Max Horngear Speed
- 280 RPM
- Dimensions (L x W x H)
- 1240 x 1080 x 1770 mm
- Machine Weight
- 450 Kg
Performance & Features
Key Features
Auto-Stop MotionVariable Speed ControlMeter CounterLow Noise Operation
Optional Equipment
- Rubber Feeder
- Protective Guard
- Servo Motor for Density Adjustment
- Compatible Materials
- CottonPPPEFiber GlassNylonCarbon FiberPET
- Certifications
- CEISO
