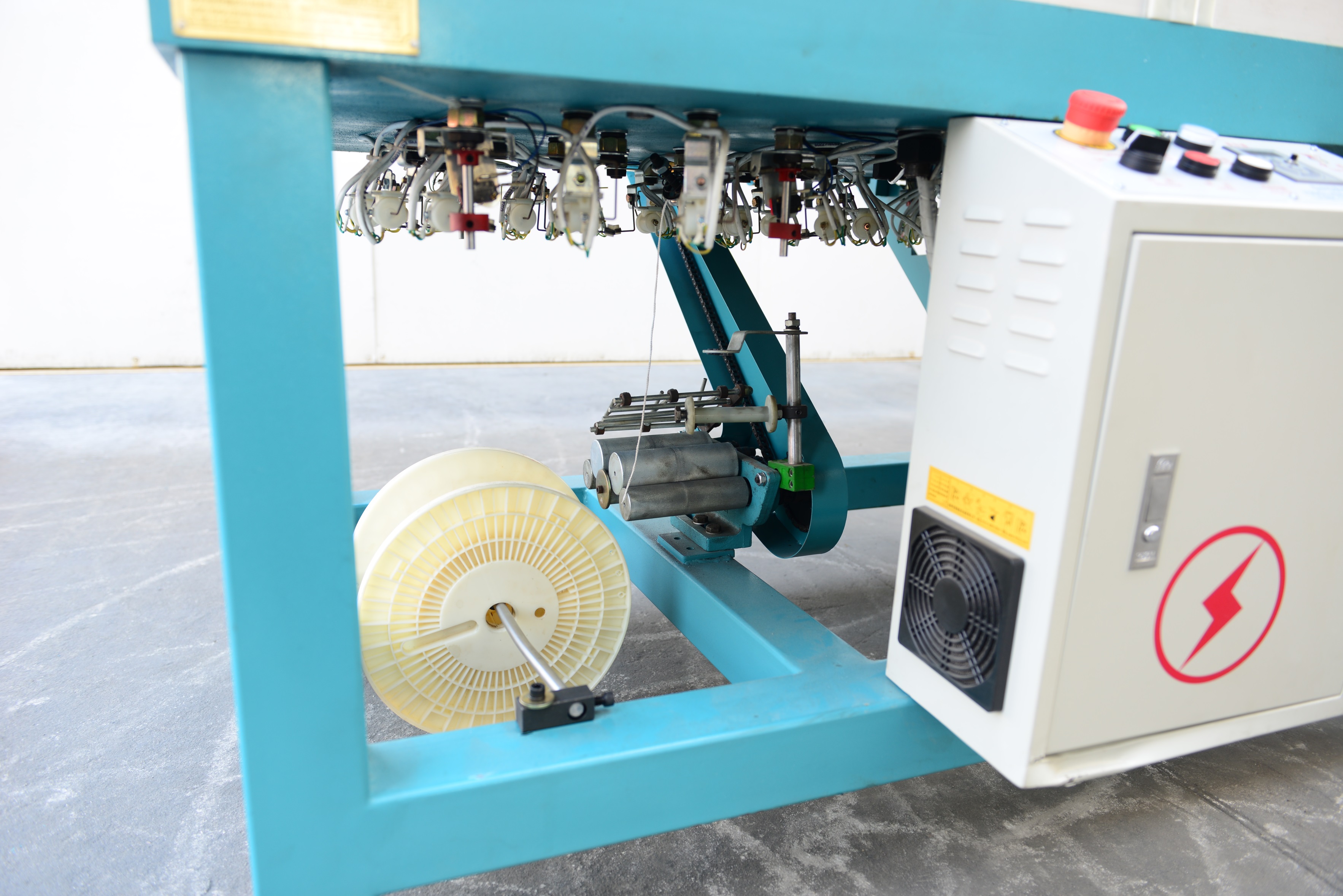

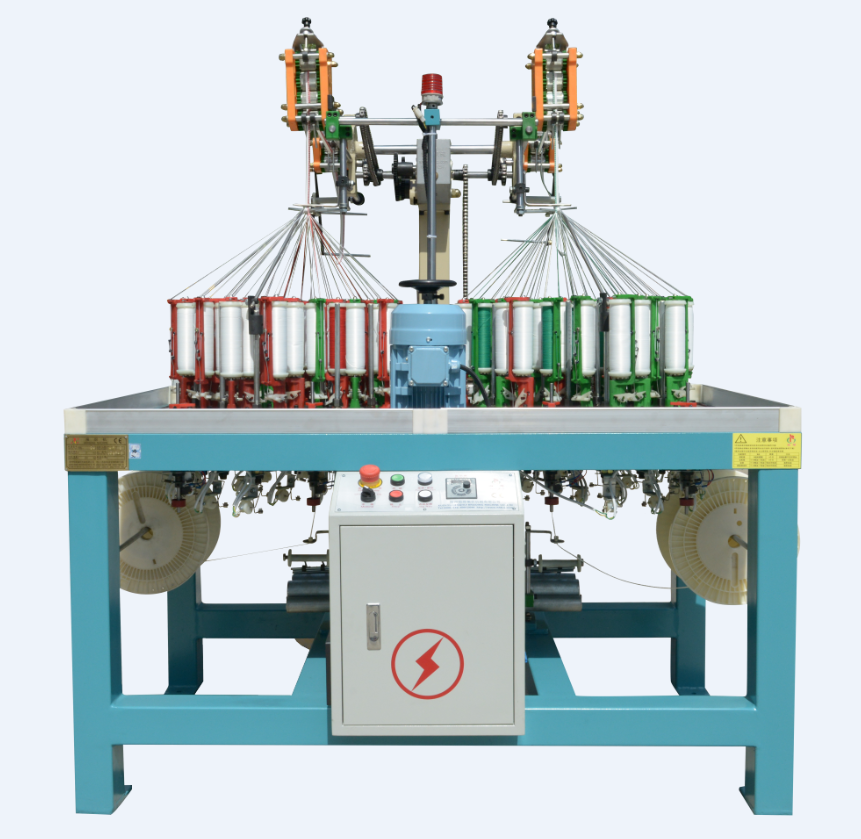

46-Spindle Piping Cord Braiding Machine
This high-speed braiding machine is designed for producing piping cords and other braided products. Featuring 46 spindles, it enables efficient and high-volume production.
Technical Specifications
Overview
High-Efficiency Braiding Solution
This 46-spindle piping cord braiding machine is engineered for high-speed production of garment accessories and textile products. It supports a wide range of materials, including cotton, nylon, carbon fiber, and composite materials, ensuring versatility for various manufacturing needs. Designed with operator convenience in mind, the machine features automatic stop functions for yarn breakage and exhaustion, reducing the need for constant supervision while maintaining high output quality.
Technical Specifications
Performance Metrics
0.75 KW
Motor Power
300 RPM
Max Horngear Speed
Spindle Configuration
| Component | Value |
|---|---|
| Heads Qty | 2 |
| Spindle Qty | 40 |
| Horngear Diameter | 90 mm |
| Bobbin Size | OD 47 x 139 mm |
- Model
- KBL-46-2-90
- Machine Dimensions
- 1650 x 1250 x 1750 mm
- Weight
- 750 Kg
Features & Capabilities
Key Features
Auto-stop motionVariable speed controlMeter counterOil-free operation
Compatible Materials
- Cotton
- PP
- PE
- Fiber glass
- Nylon
- Carbon Fiber
- PET
- Certifications
- CEISO
