Technical Specifications
Overview
Sterilization Technology

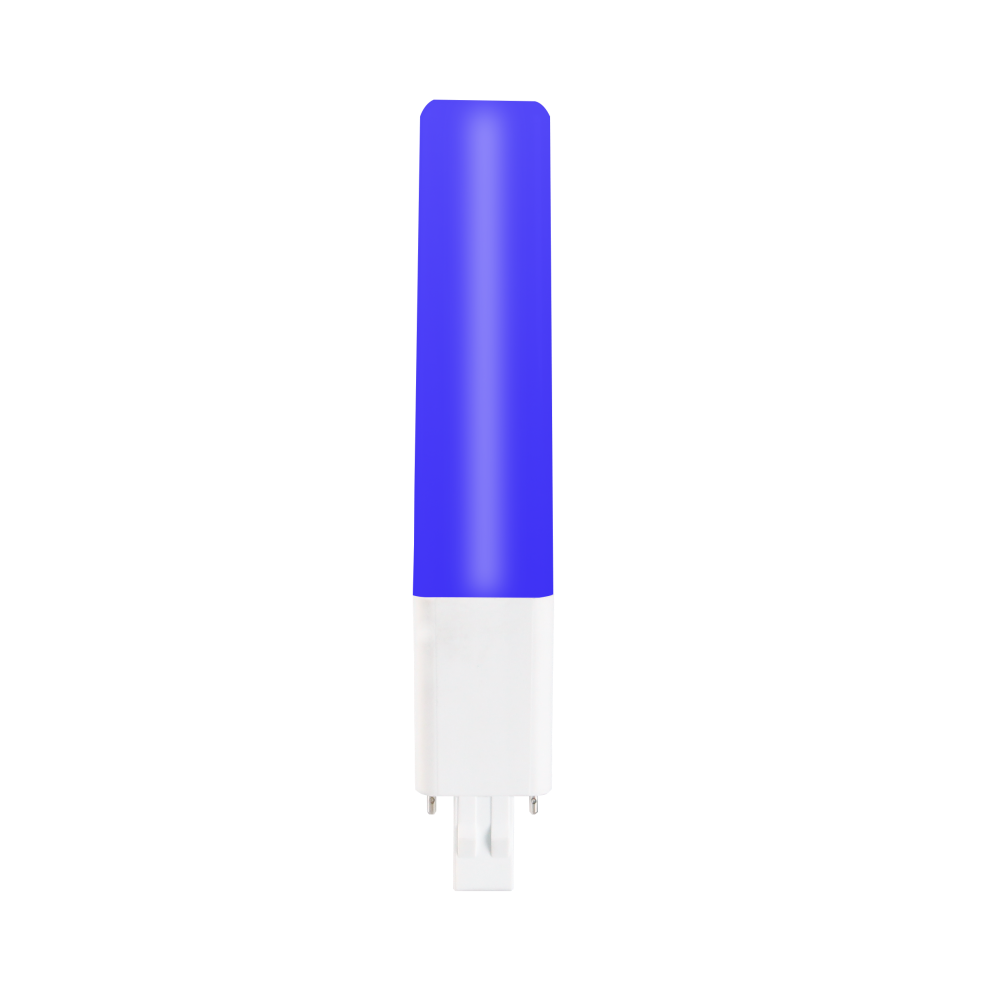

This 405nm UV LED lamp is engineered for effective sterilization applications. By utilizing 405nm wavelength technology, the lamp triggers porphyrin excitation within bacteria, leading to their destruction through the generation of Reactive Oxygen Species (R.O.S). It is designed with a standard GX23 base and PL-s form factor, making it a versatile choice for existing ultraviolet sterilization systems.
Technical Specifications
Model Comparison
| Model No. | Wattage | Replacement | Voltage |
|---|---|---|---|
| PL-4W-RPP-GX23-UV | 4W | 7W | 120-277V AC |
| PL-6W-RPP-GX23-UV | 6W | 9W | 120-277V AC |
| PL-8W-RPP-GX23-UV | 8W | 13W | 120-277V AC |
- Wavelength
- 405 nm
- Base Type
- GX23
Physical Characteristics
Physical Dimensions
18 mm
Width
30 mm
Depth
176 mm
Height
Certifications
Certifications
UL Listed
