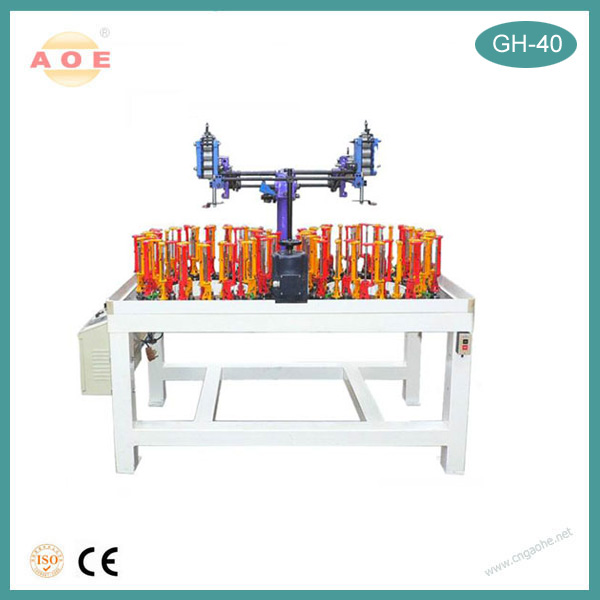

40-Spindle High-Speed Lace Braiding Machine
This high-speed lace braiding machine features 40 spindles for producing various intricate patterns. It is designed for efficient production of RIC-RAC lace, piping tape, jacquard tape, elastic bands, and shoelaces.
Technical Specifications
Product Overview
High-Efficiency Lace Braiding Solution
This 40-spindle high-speed braiding machine is engineered for the professional production of intricate textiles including RIC-RAC lace, piping tape, and jacquard bands. Designed with a focus on durability and precision, it features a robust base casting and ductile iron components treated for long-term wear resistance. The machine offers a user-friendly experience with automated features and variable speed control to meet diverse manufacturing requirements.
Performance Metrics
Performance Metrics
300 RPM
Max Speed
40 Qty
Carriers per Head
1.1 kW
Motor Power
Technical Specifications
Technical Details
| Parameter | Value |
|---|---|
| Model | GH-40 |
| Production Heads | 2 |
| Bobbin Dimension | 48 x 140 mm |
| Machine Dimensions | 1650 x 900 x 1700 mm |
| Max M.P.H | 60 x 2 |
Applications
Supported Products
- RIC-RAC Lace
- Piping Tape
- Jacquard Tape
- Elastic Bands
- Fibre Bands
- Shoelaces
- Specialty Ropes
Construction & Engineering
Engineering Advantages
- Base casting with aging treatment for maximum flatness
- Ductile iron 800 panel for high precision and wear resistance
- High-frequency surface treated ductile iron 600 rotor
- Precision-controlled fit tolerance within 0.03mm
- Nylon 66 rotor pads with imported wearing-grease
Operational Features
Key Features
- Frequency converter for stepless speed adjustment
- Automatic yarn cutting device
- Humanized design for safe and easy operation
- Fast-change spindle structure for simple bobbin replacement
- Direct and convenient maintenance access
Electrical Requirements
- Voltage Options
- 220VAC380VAC50HZ60HZ
Compliance & Service
Certifications
CE
- Service Availability
- Overseas service available via international agents; all units inspected before delivery.
