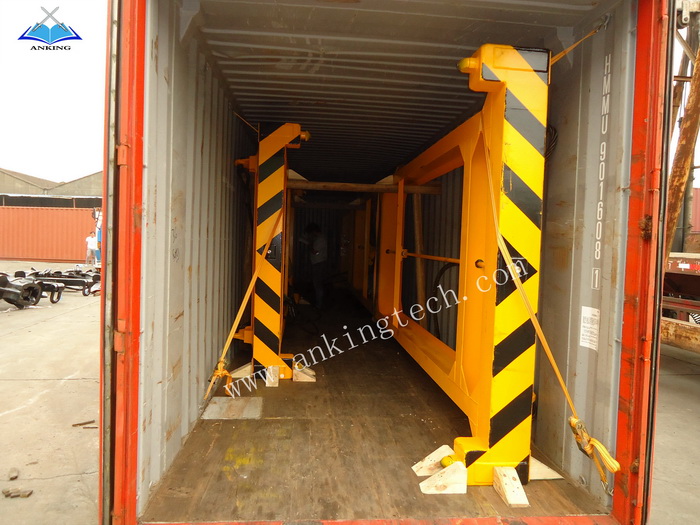

40-Foot Semi-Automatic Container Spreader
The semi-automatic container spreader is designed for handling 20 ft & 40 ft ISO containers with single or double hook jib cranes, in ports or on vessels. The twistlocks are activated by landing and lifting the spreader from the container by the crane operator; no hydraulic or electric systems are needed.
Technical Specifications
Product Overview
Semi-Automatic Container Spreader
This semi-automatic container spreader is engineered for the efficient handling of 40 ft ISO containers in ports, terminals, and on vessels. Designed for use with single or double hook jib cranes, it operates without the need for complex hydraulic or electric systems. The twistlocks are activated simply by landing and lifting the spreader, streamlining operations and improving productivity.
Key Performance Metrics
Performance Highlights
36 t
Safe Working Load (SWL)
3.2 t
Dead Weight
36 mm
Rope Diameter
Physical Dimensions
Dimensions
| Dimension | Value | Unit |
|---|---|---|
| Length | 12,186 | mm |
| Width | 2,610 | mm |
| Height | 700 | mm |
| Min. Working Height | 8,500 | mm |
Compatibility
- Compatible Containers
- 40 ft ISO Containers
Operational Features
Key Features
- Semi-automatic twistlock activation via landing/lifting
- No hydraulic or electric systems required
- Compatible with single or double hook jib cranes
- Robust construction for port and vessel operations
