Product Overview
High-Capacity DWDM Solution

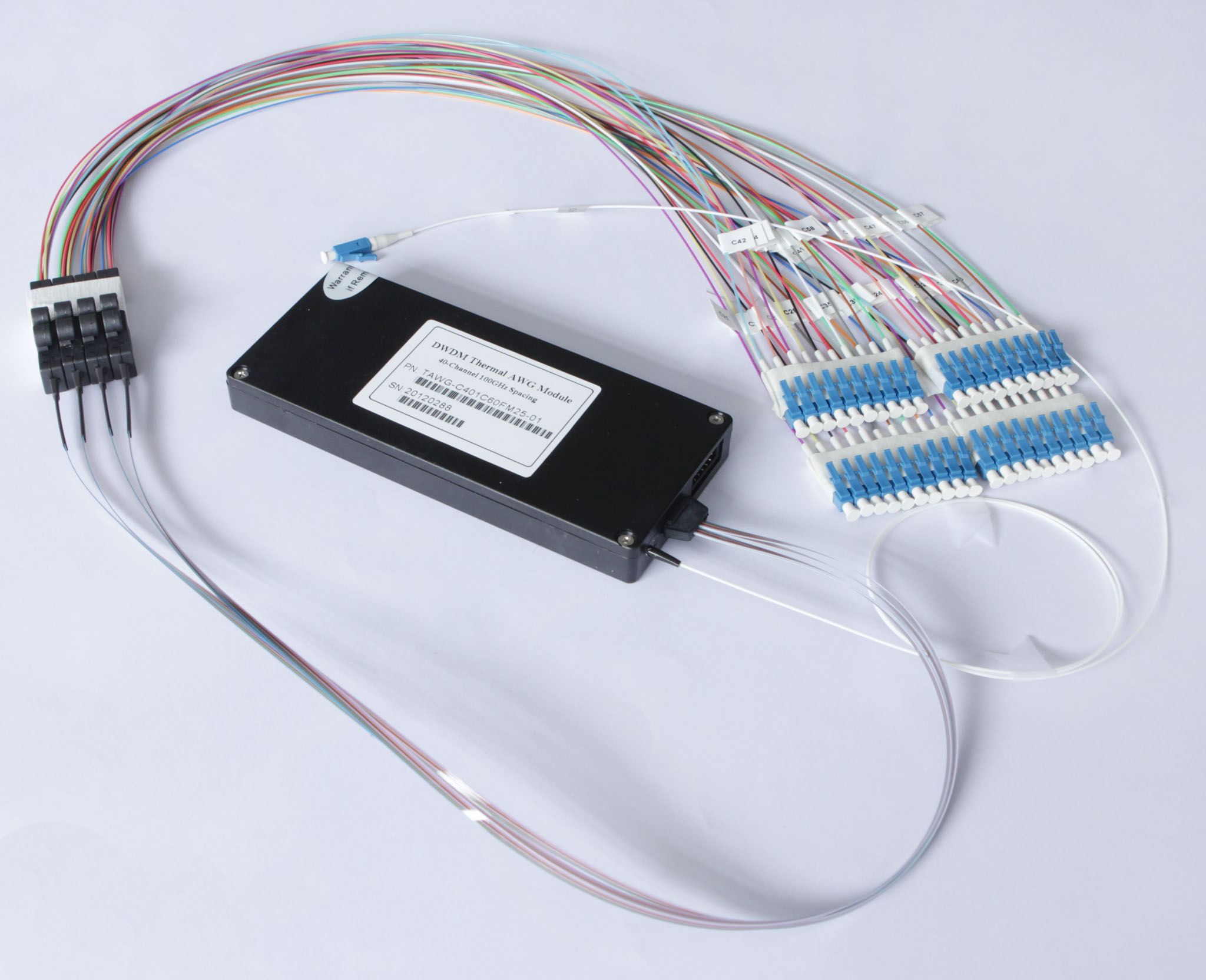

This 40-channel Thermal Arrayed Waveguide Grating (AWG) module is engineered for high-capacity dense wavelength division multiplexing (DWDM) systems. Designed for the C-band, it utilizes precise thermal control via foil resist heaters or Peltier TECs to ensure stable performance across varying environmental conditions. This module offers flexible fiber options and packaging configurations, making it a reliable choice for complex telecommunications and wavelength routing applications.
Technical Specifications
- Channel Count
- 40 channels
- Channel Spacing
- 100 GHz
- Operating Band
- C-band
- Temperature Control Methods
- Foil Resist HeaterPeltier TECThermistor Sensor
- Compatible Fiber Types
- SM FiberMM FiberPM Fiber
Performance Features
Performance Highlights
- Extremely Low Crosstalk
- Low Insertion Loss
- Low Polarization Dependent Loss (PDL)
- Low Chromatic Dispersion
Compliance & Reliability
Reliability Standards
GR-1221-CORETR-NWT-000468
Product Configurations
Available Packages
- Special Metal Box
- 19-inch 1U Rackmount
