4-Gang Waterproof Rocker Switch Panel with USB Charger
This waterproof rocker switch panel features four ON-OFF switches with blue LED indicators. It also includes a 5V/2.1A and a 5V/1A car charger socket.
Technical Specifications
Overview
Versatile 4-Gang Marine Control Panel

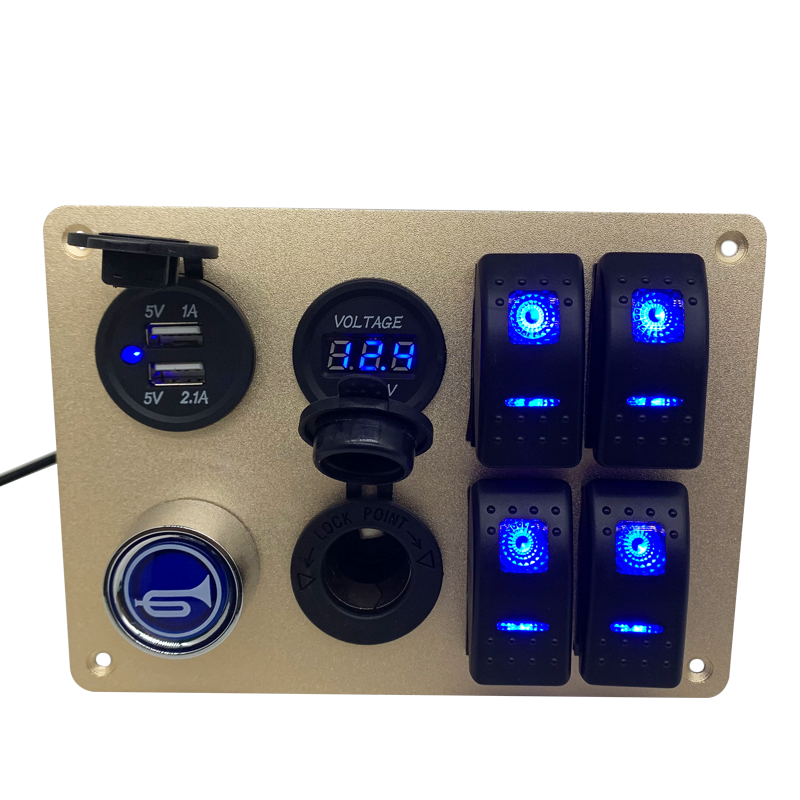

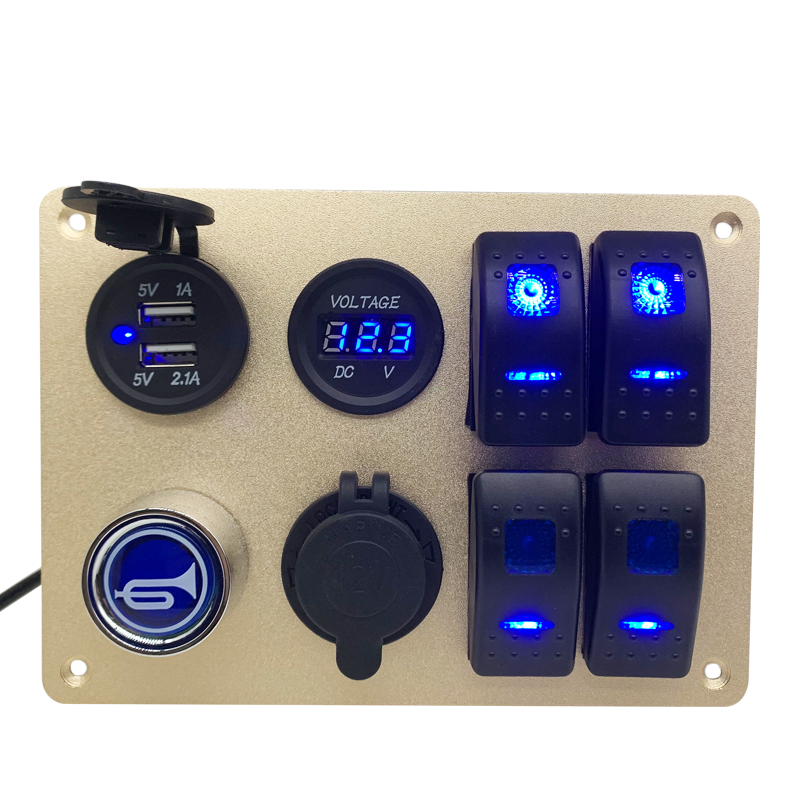

This waterproof rocker switch panel is a comprehensive power management solution designed for demanding marine and automotive environments. It features four illuminated ON-OFF switches, dual USB charging ports, a digital voltmeter, and a 12V power socket, all mounted on a durable aluminum plate. Ideal for boats, RVs, and off-road vehicles, it provides centralized control for lighting and accessories while monitoring your battery's health in real-time.
Electrical Performance
Key Electrical Ratings
12 V
Input Voltage (Min)
24 V
Input Voltage (Max)
20 A
Max Current @ 12V
10 A
Max Current @ 24V
- Compliance
- CE
Charging & Monitoring
USB Charger Specifications
- Port 1: 5V / 2.1A High-speed charging
- Port 2: 5V / 1A Standard charging
- Integrated Digital Voltmeter for real-time battery monitoring

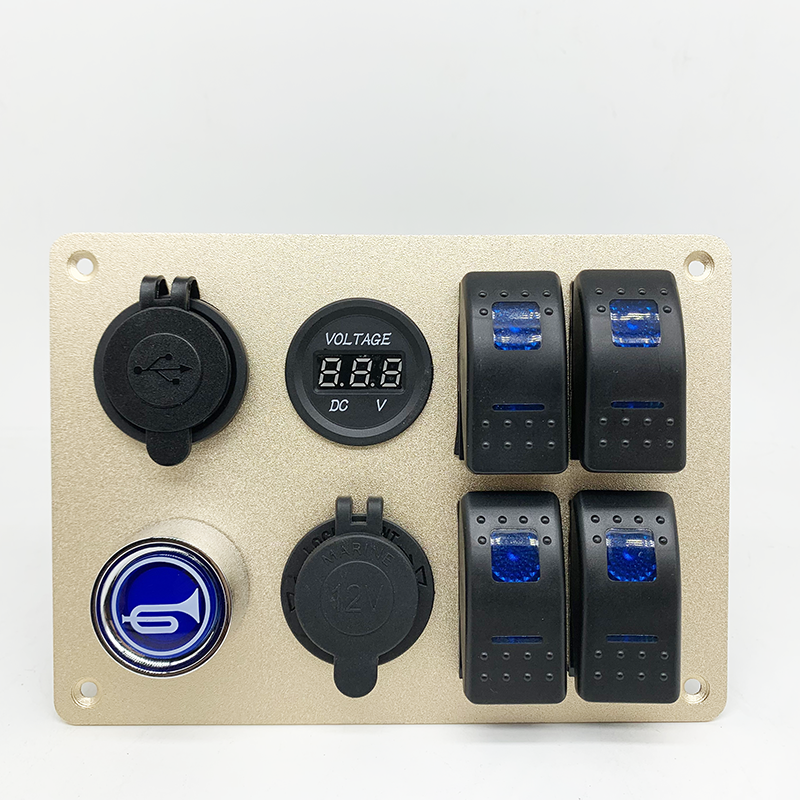

- DC Power Socket with protective cap
Construction & Durability
- Materials
- AluminiumABS PlasticMetal
- Working Temperature Range
- -25°C to 80°C
Switch Configuration
Switch Details
| Feature | Specification |
|---|---|
| Function | SPST ON-OFF |
| Pin Count | 5-Pin |
| Mechanical Life | 50,000 Cycles |
| Illumination | Blue LED |
Application & Safety
Safety Protections
- Over-heating protection
- Over-current protection
- Over-charging protection
- Short circuit protection
- Replaceable integrated fuses
Universal Compatibility
Marine/BoatRV/TrailerTruck/BusJeep/Off-roadMotorcycle
